2 - 3mm Galvanized Strip C Z Purlin Roll Forming Machine 11kw 12 Rows Rollers
2 - 3mm Galvanized Strip C Z Purlin Roll Forming Machine 11kw 12 Rows Rollers
2 - 3mm Galvanized Strip C Z Purlin Roll Forming Machine 11kw 12 Rows Rollers
2 - 3mm Galvanized Strip C Z Purlin Roll Forming Machine 11kw 12 Rows Rollers
2 - 3mm Galvanized Strip C Z Purlin Roll Forming Machine 11kw 12 Rows Rollers
2 - 3mm Galvanized Strip C Z Purlin Roll Forming Machine 11kw 12 Rows Rollers
2 - 3mm Galvanized Strip C Z Purlin Roll Forming Machine 11kw 12 Rows Rollers
2 - 3mm Galvanized Strip C Z Purlin Roll Forming Machine 11kw 12 Rows Rollers
Specifications
Name :
purlin machine
Weight :
6000 Kgs
Roller Stations: :
14-16 stations
Control system :
Mitsubishi PLC and converter
Diameter Of shaft :
75mm
Suitable material :
Steel coil, sheet and strip
Place of Origin :
China
Brand Name :
YBT
Certification :
CE ISO SGS
Model Number :
YT376509
MOQ :
1 Set
Price :
Negotiation
Packaging Details :
Standard export packing with each machine tied and protected in container
Delivery Time :
45-60 days
Payment Terms :
T/T
Supply Ability :
10set
Description

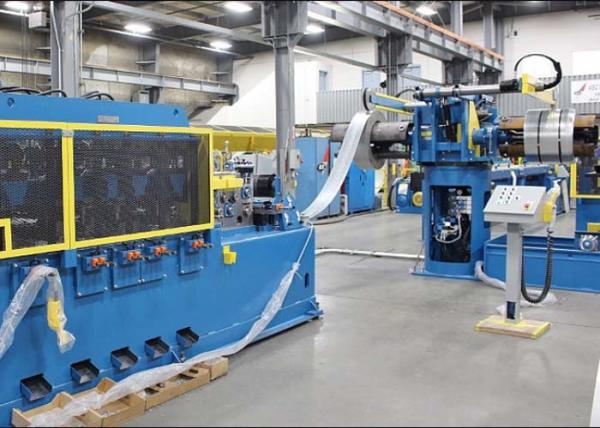

2-3mm Galvanized Strip CZ Purlin Machine With 11kw Power 12 Rows Of Rollers

The machine can produce various kinds of purlins, which can be used for major stress structure of the large and middle sized industrial constructions and civilian constructions, the roof load bearing and wall panel supporting of the plants,warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.

1. C purlin roll forming machine description:

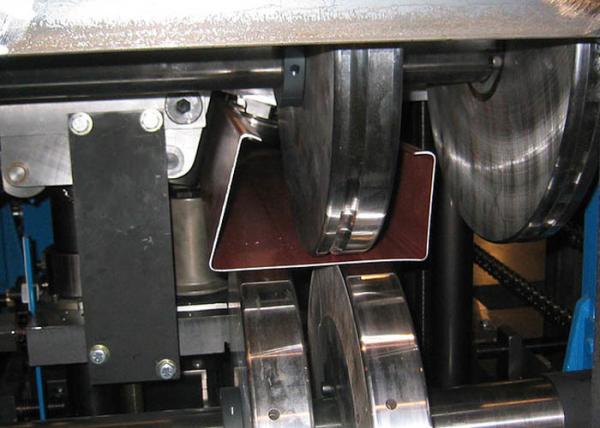

C shape purlin is made by using the steel strip as the raw material, after Leveling, Rolling, Punching, Cutting, etc. become the final product. It can be used for the major stress structure of the large and middle sized industrial constructions and civilian constructions. The roof load bearing and wall panel supporting of the plants,warehouses, engine houses, hangars, exhibition halls, cinemas, gymnasiums, fair flower stands, etc.

YBT factory is producing the high quality C shape purlin roll forming machines, and exported to the foreign countries, such as Saudi Arabia, Singapore, India, Russia, Ethiopia, Angola, etc.

2 - 3mm Galvanized Strip C Z Purlin Roll Forming Machine 11kw 12 Rows Rollers

2. Main technical parameters of c purlin roll forming machine

Main Technical Parameters
Item Parameters Notes

Suitable Material

 Type Steel Sheet
Thickness(mm) 0.4--1.5
Yield stress 235Mpa
Product Specifications Cover width 100~300 Detail as the client's drawing
Length Any Length

Power Requirement

 Type 380V/3PH/50HZ
Main Motor Power(KW) 22 Depend on actual design
Hydraulic Power(KW) 7.5 Depend on actual design
Forming Speed(m/min) 12-15 Not include the time of punching and cutting
Forming Stand 18 Depend on actual design
Type of Cutting Roll-formed and length-set cutting
Control System Mitsubishi PLC and converter
Total Weight(T) 8 Depend on actual design

3. Main componets of z purlin roll forming machine:

No. Name Unit Qty
1 Decoiler set 1
2 Entry Beach set 1
3 Main Machine for roll forming set 1
4 Cutting System set 1
5 punching set 1
6 Output Table set 1
7 Control System(PLC) set 1
8 hydraulic station set 1

4. C purlin roll forming machine flow charts:

Decoiler-- Roll Forming--PLC System—Hydraulic System –Pressing --Cutting —Output Table

5. Introduction of main components:

1). Decoiler

Loading capacity 5T
Uncoiling width 1000mm
Inner diameter: 450-550mm

Usage:It is used to support the steel coil and uncoil it in a turnable way.

2). Feeding

Material of axis 45#steel
Number 3 up,4 down
Diameter of axis 100mm
Forming round Material bearing steel (GR15), quenching 60-62 °C

Usage:Put the raw material(steel plate) through the beach to manufacture and process,4 down and 3 up , it can guarantee that the products are neat, parallel and everything is uniformity.

3). Hydraulic cutting

Main power: 4kw

4). Puching part:

Power 4kw (double valve)
Cylinder 2
Material: Cr12 quenching
Quantity 2

Usage: Punching is added to the flying saw cutting part, by the hydraulic control, mainly in the red c-shaped steel in the hole based, can be set up according to their needs, can be washed from time to punch, simple to use, the durability.

6. Our Advantages

· Germany COPRA software design

· 5 engineers with more than 20 years experience

· 30 professional technician

· 22 sets advanced CNC production lines on site

· Passionate Team

· Installation engineers can reach your factory within 6 days

· 3 years maintenance and whole life technical support
