Automatic C Z Purlin Roll Forming Machine With Multifunctional Cutter
Automatic C Z Purlin Roll Forming Machine With Multifunctional Cutter
Automatic C Z Purlin Roll Forming Machine With Multifunctional Cutter
Automatic C Z Purlin Roll Forming Machine With Multifunctional Cutter
Automatic C Z Purlin Roll Forming Machine With Multifunctional Cutter
Automatic C Z Purlin Roll Forming Machine With Multifunctional Cutter
Automatic C Z Purlin Roll Forming Machine With Multifunctional Cutter
Automatic C Z Purlin Roll Forming Machine With Multifunctional Cutter
Specifications
Brand Name :
YBT
Model Number :
YT376509
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Purlin Roll Forming Machine
Advantage :
Use Widely
Control system :
PLC with touch screen
Roller material :
Cr12
Type :
c plus z design purlin roll form machine
Work pressure :
235 Mpa---450 Mpa
Description

High Speed CZ Purlin Roll Forming Machine With PLC Control System

C-Z interchangeable machine adopts a special structure.The rollers for C & Z are changed very quickly without dismantle anything parts.One machine can produce all specifications of C & Z purlins and the widths and height can be ajustable automatically.Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.

Purlin making machine work flow:

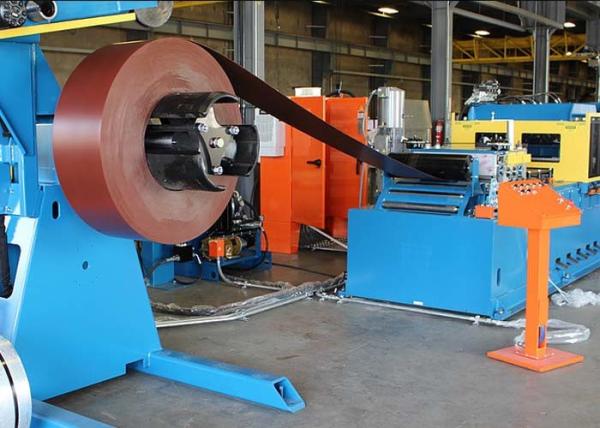

manual uncoiler--Punching hole-- roll forming machine-- molding press-- PLC control box-- hydraulic system-- post cut-- output table

Automatic C Z Purlin Roll Forming Machine With Multifunctional Cutter

Techincal Parameter

Main parts :Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.

Special requirement pls feel free to contact us

Control System PLC Inverter Encoder Touch Screen
Main Frame 400mm H-Beam
Total Power 22 kw
Power Supply 380V, 3-Phase,50Hz
Forming Speed 12-24m/min
Roll Station 18 stands
Roller Diameter 110mm
Effective Width 80-300mm
Feeding Thickness 1.5-3.0mm
Backboard Thickness 20mm
Cutter Standard GCr12
Roller Standard Gcr15#
Total Weight About 10T

Components of the machine

No Name Quantity
1 Decoiler 1set
2 Main Machine Leveling Device 1set
Punching Device 1set
Pre-cutting Device 1set
Roll Forming 1set
Hydraulic System 1set
3 Electric Control System 1set
4 Supporter 2pcs

Differents shapes of C and Z ,Welcome to send us your new design

Automatic C Z Purlin Roll Forming Machine With Multifunctional Cutter

Details pictures you may be concerned about

For cutting device : we use hydraulic cutting

Driving : Gear chain transmission

Roller material :Gcr15#

Automatic C Z Purlin Roll Forming Machine With Multifunctional Cutter


Certification and after service


1 . Match the technology standard, ISO producing certification
2 . CE certification
3 . 12 months warranty since the delivery. Board.

Packaging & Shipping

(1) . Main body of Shutter Door Roll Forming Machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in 1x40GP container with steel rope and lock catch suitable for long-distance transportation,

(2) . spare parts are covered by plastic film.

(3) . With even lifting point in the machine for easy container loading and uploading.
