Metal Sheet Steel Roll Forming Machine / Steel Door Frame Roll Forming Machine
Metal Sheet Steel Roll Forming Machine / Steel Door Frame Roll Forming Machine
Metal Sheet Steel Roll Forming Machine / Steel Door Frame Roll Forming Machine
Metal Sheet Steel Roll Forming Machine / Steel Door Frame Roll Forming Machine
Metal Sheet Steel Roll Forming Machine / Steel Door Frame Roll Forming Machine
Metal Sheet Steel Roll Forming Machine / Steel Door Frame Roll Forming Machine
Metal Sheet Steel Roll Forming Machine / Steel Door Frame Roll Forming Machine
Metal Sheet Steel Roll Forming Machine / Steel Door Frame Roll Forming Machine
Specifications
Brand Name :
YBT
Model Number :
YT983459
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10 sets / month
Delivery Time :
45 - 60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Machine type :
Door Frame forming machine
Material :
steel
Warranty :
1 year
Forming Station :
15 steps
Cutter material :
Cr12 Tool Steel
Forming speed :
8-12m / min
Description

0.8 - 1.2mm PLC controled Door Frame Roll Forming Machine 8 - 12m / min

The machine is used for steel door frame making, products can be used for building decoration and housing.The machine works stably and no noise.In addition, it's easy to control and operate. It uses PLC control system to get the best efficiency.And the steel door frame forming machine does not take up any space because it is designed to all in one machine.


Metal Sheet Steel Roll Forming Machine / Steel Door Frame Roll Forming Machine

Technical parameters:

Raw material PPGI/color steel
Thickness of material 0.8-1.2mm
Forming speed 8-12m/min
Total power 7.5kw
Voltage 220V 60Hz 3phase
Diemension 7000*1400*1600mm
Diameter of the axle 70mm
machine weight 5 tons
Control system PLC and hydraulic
Working stages 15 stages
Side board 16mm

Profile drawing:

Metal Sheet Steel Roll Forming Machine / Steel Door Frame Roll Forming Machine

Related descrption:


The steel door frame roll forming machine weights 5 tons

Machine size is 7000*1400*1600mm

The color is grey/blue or as customer requires.

Material Thickness:0.8-1.2mm .Applicable material:Galvanized Steel Coils,Cold Rolled Coils

Rollers manufactured from Cr12, precision machined, hard Chrome Coated


Motor Driving,Gear chain transmission, 15 forming stations

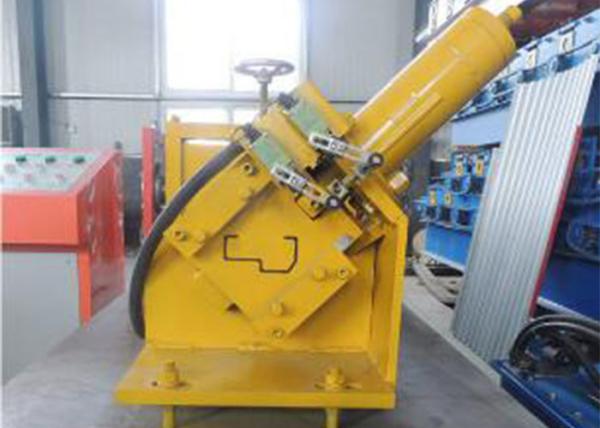

Cutting system is hydraulic controled.

For decoiler, according to customer's requirements of manual or hudraulic.

So the same for the whole machine,we can design full automatic control system

Metal Sheet Steel Roll Forming Machine / Steel Door Frame Roll Forming Machine

PLC Control System:

(Touch screen brand:Taiwan WEINVIEW, Inverter brand:Finland VOCAN/Denmark

Control the quantity and cutting length automatically
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±1mm
Control Voltage 24V

Q&A:

1 . Does one machine can only produce one size?

Not exactly, it depends on which profile the customer want to produce.

2 . Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

3 . You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.

4 . How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.

5 . Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

6 . May we visit your factory?
Sure,Warmly welcome to our factory at any time.

7 . How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

8 . What's the warranty period?

12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the buyer’s Installation site.

9 . Can you arrange shipment?

Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
