Roof Tile Steel Roll Forming Machine / Corrugated Sheet Roll Forming Machine
Roof Tile Steel Roll Forming Machine / Corrugated Sheet Roll Forming Machine
Roof Tile Steel Roll Forming Machine / Corrugated Sheet Roll Forming Machine
Roof Tile Steel Roll Forming Machine / Corrugated Sheet Roll Forming Machine
Roof Tile Steel Roll Forming Machine / Corrugated Sheet Roll Forming Machine
Roof Tile Steel Roll Forming Machine / Corrugated Sheet Roll Forming Machine
Roof Tile Steel Roll Forming Machine / Corrugated Sheet Roll Forming Machine
Roof Tile Steel Roll Forming Machine / Corrugated Sheet Roll Forming Machine
Specifications
Brand Name :
YBT
Model Number :
YT166205
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
45-60 work days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
corrugated roof tile
Material :
glazed steel
Thickness :
0.3-0.7 mm
Material width :
1250 mm
Productivity :
2-3 m/min
Warranty :
1 year
Description

0.3 - 0.7 mm PLC control corrugated roof tile making roll forming machine


Our machine has high grade quality and reasonable price.It also has high efficiency. The roof tile making roll forming machine work stably and without any noise. We enjoy good reputation all over the world. Machines are welcomed by customers around the world. The machines can be designed to produce different shapes and sizes according to customer's requirements.


Machine specifications:

1. Type Corrugated Tile Roll Forming Machine
2. Suitable material PPGI/GI /Aluminumcoil
3. Material width 1250mm
4. Thickness of steel 0.3-0.7mm
5. Dimension(L*W*H) 6800mm*1450mm*1650mm
6. Weight About 8000kg
7. Forming Speed Max.2-3 m/min
8. Power Approve 5.5 Kw
9. Color as you require

Roof Tile Steel Roll Forming Machine / Corrugated Sheet Roll Forming Machine

Profile drawing:

Roof Tile Steel Roll Forming Machine / Corrugated Sheet Roll Forming Machine

Welcome to send us your design.

Machine compositions:

1. 5T decoiler 1 set
2. Feeding guide 1 set
3. Main roll forming machine 1 set
4. PLC control system 1 set
5. Hydraulic station 1 set
6. Stop cutting device 1 set
7. Run out table 1 set


Detailed information:

The whole production line is controlled by PCL program. Operators can select a preset program to run the whole line automatically by using touch screen. The methods of operation include automatic control, manual control, separate operation and emergency stop.

Roof Tile Steel Roll Forming Machine / Corrugated Sheet Roll Forming Machine

Yield stress:230-300Mpa

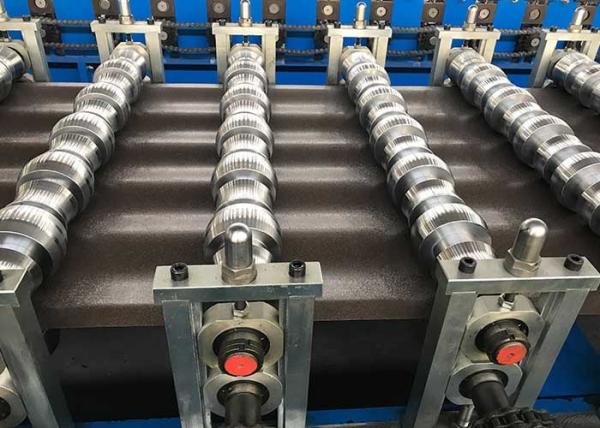

Forming rollers:45# steel, 12 forming stations

Cutting device:Cr12

Main motor power:5.5kw

Hydraulic station motor power (KW):5.5kw

Voltage:380V 3 phase 60Hz or as you require

Controlling system:PLC control system:Mitsubishi(according to your requirements)

Operation:Touch screen and button
