Specifications
Brand Name :
YBT
Model Number :
YB525837
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Shutter Door Roll Forming Machine
Voltage :
As Your Requirment or 380v, 60Hz, 3 phase or
Advantage :
Use Widely
Warranty :
12 Months
Thickness :
0.8-1.2mm
Material :
PI & PPGI
Description

Hydraulic Cutting Steel Rolling Shutter Door Roll Forming Machine

About Shutter Door Roll Forming Machine

1 . This machine is made up of roll forming machine,molding press,cutting machine,PLC computer control and hydraulic system.
2 . The machine is stable,no noise,no shake.
3 . Controlling by computer,PLC display,operation is easy,running is steady and reliable,endurable,maintenance-free.
4 . Cutting machine is characterized by stable driving,easy operation.
5 . Hydraulic system use the hydraulic pump,long operating life,no noise.

Specification of Ceiling Silo Roll Forming Machine

Main teachnical parameters
Raw material
Galvanized steel sheet
Hytraulic station motor power
3kw
Thickness
0.8-1.2mm
Main motor power
5.5kw
Yield stress
235-345Mpa
Total weight
5T
Max. forming speed
8-12m/min
Coil width
 as customzied
Roller material
45# steel with chrome treatment
Operation

Touch screen and botton
Roller driven type
Chain transmission
Hytraulic system pressure
12 Mpa
Controller
PLC


Machine list:

Number Machine list Number
1 5 tons hydraulic decoiler 1 set
2 Feeding&leveling device 1 set
3 Gear box drive system 1 set
4 Main forming machine 1 set
5 Curving device 1 set
6 Hydraulic Cutting device 1 set
7 Auto stacker 6 meters 1 set
8 PLC control system 1 set
9 Hydraulic station 1 set

Cutting Device Roller System
1. Cutting press is 20 tons 1. Material: high grade NO.45 forged steel
2. Blade and mold material:GCR12steel with quenched treated 60-62ºC. It can decide cut panel dimension according to the hydraulic drive and PLC computer control system. 2. Roller station: 11-16(depends on final design)
3. Thickness of feeding material:0.7-1.2mm.

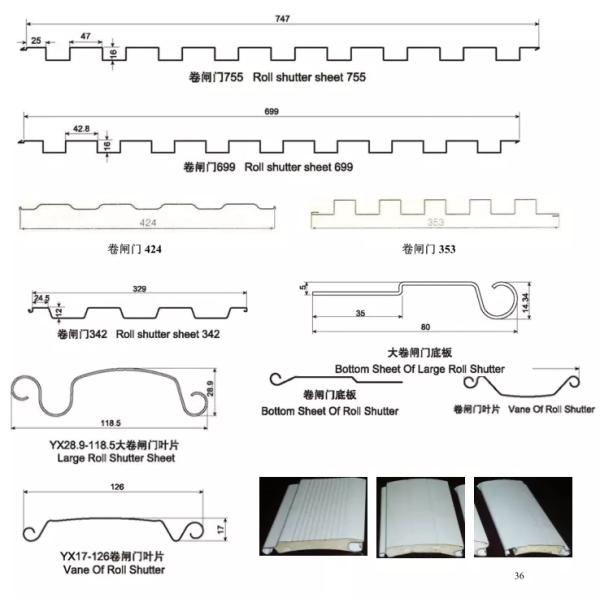

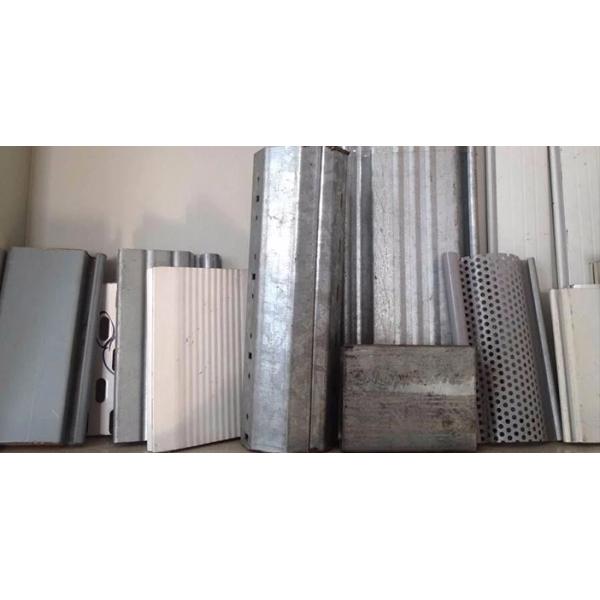

Design and Some types of shutter door

Building Steel Rolling Door Roll Forming Machine Hydraulic Cutting PI PPGI Material

Building Steel Rolling Door Roll Forming Machine Hydraulic Cutting PI PPGI Material

Technological process:

Building Steel Rolling Door Roll Forming Machine Hydraulic Cutting PI PPGI Material

Packaging & Shipping


1 . Before loading to the container, we will check the machine first
2 . make some protection on the machine, such as, we will paint the coil on the roller and shaft, in case the roller and shaft got corrosion and rusty during long time delivery
3 . we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not
4. we will take photos for customer when loading to container
