Specifications
Brand Name :
YBT
Model Number :
YT464773
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
45-60 work days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
shutter door
Material :
steel
Thickness :
0.8-1.2mm
Forming stations :
16 forming stations
Roller material :
C45 steel
Warranty :
1 year
Description

Galvanized Steel Roller Shutter Door Roll Forming machine 15 - 18 m / min


Description:

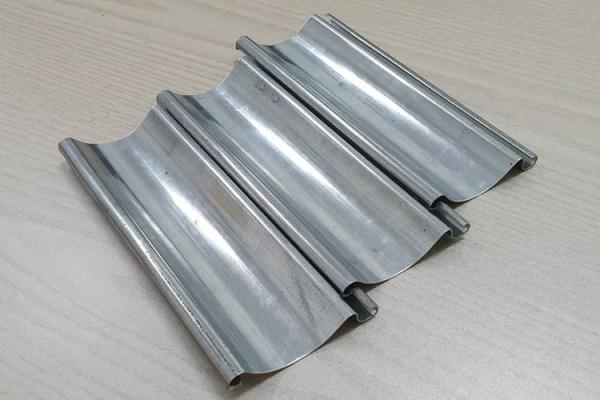

This Galvanized Steel Roller Shutter Door Roll Forming Machine uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate. The products produced by this machine are bright in colored, against fading, resistant to rust, and be widely used in shops, working departments, warehouses, and fire partition. Its strength is three times higher than aluminum alloy door.

Main teachnical parameters:

Suitable process material: aluminium /galvanized/colored steel

Material Thickness:0.8-1.2mm
Yield strength 245Mpa or 550Mpa
Machine Components:
Decoiler 1 set
Main forming machine 1 set
Hydraulic Cutting device 1 set
PLC Control System 1 set
Exit Rack 2 sets


Working flow:
Decoiler-Level device-Main forming machine-Hydraulic cutting-Run out table

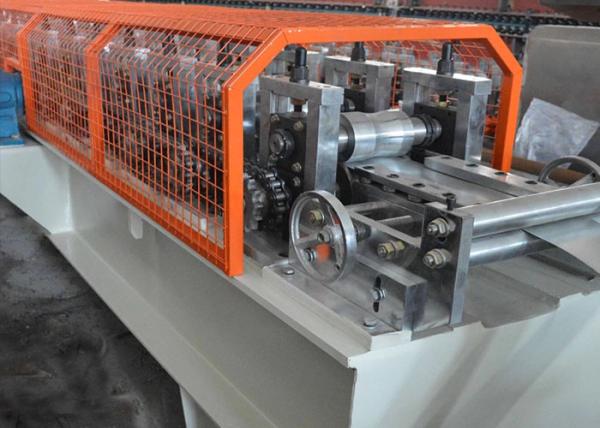

Machine Parts:

Zinc Coated Steel Shutter Making Equipment / Rolling Shutter Making Machine

Details about the shutter door machine:

1)Decoiler:
Max. feeding width: 500mm, coil ID range 470mm±30mm
Manual/Automatic for option
Capacity: Max. 3Ton or as you require

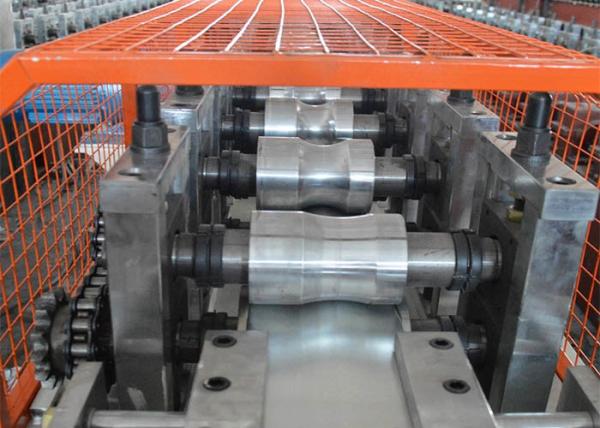

2) Cold Rolling Mills
Rollers manufactured from bearing steel GCr15,precision machined,hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust) ;
Motor Driving,Gear chain transmission, 16 forming stations and 7 rollers(3 upper rollers and 4down rollers)for straightening and levelling)
Main Motor=5.5KW , Frequency speed control
Forming speed approx.15-18m/min
3)Hydraulic Cutting device
hydraulic motor: 2.2KW, Hydraulic pressure range: 0-16Mpa
Cutting tool material: Cr12, Heat treatment
4)PLC Control System
(Touch screen brand:Taiwan WEINVIEW,Inverter brand:Finland VOCAN/Denmark Danfoss ,Encoder brand: Japan Koyo)
Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±1mm
Control Voltage 24V
5) Exit Rack Un-powered

Zinc Coated Steel Shutter Making Equipment / Rolling Shutter Making Machine



The steel roll shutter door are popular and used for factory, warehouses, stores. Feel free to contact us.

After-sale service:
1 . Installation and training of roll forming machine:
a . If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b . Without visiting, we will send you user manual and video to teach you to install and operate.

c . If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2 . After Service of roll forming machine:
a . One year guarantee for whole roof forming machine.
b . 24 hours technical support by email or calling
c . If there is any problem found of the roof forming machine, we will repair it for free in one year.
