Specifications
Brand Name :
YBT
Model Number :
YB525815
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Door Frame Automatic Roll Forming Machine
Voltage :
As Your Requirment or 380v, 60Hz, 3 phase or
Advantage :
Use Widely
Warranty :
12 Months
Thickness :
0.5-1.2mm
Material :
PI & PPGI
Description

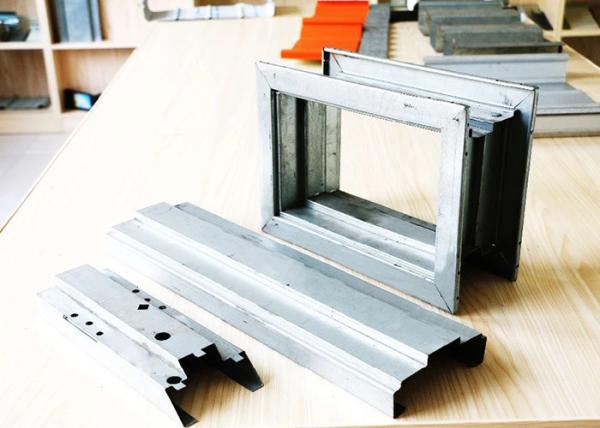

Professional Shutter Door Frame Roll Forming Machine Production Line

The roll forming machine can process Galvanized roller shutter door slat in bath and the desgin are in fashionable and widely used. Rolling Shutter Slat Machine With the highest security in rolling fire doors, Rolling Steel Doors, Fire Doors, rolling shutter,, offshore rolling fire doors, storm doors, Rolling steel hurricane doors, smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, and storm shutters. rolling steel doors, rolling steel fire doors, rolling fire shutters, insulated fire doors, rolling steel grilles.

Specifications

1.

Power requirement

 Type 380v/3ph/50hz
2. Forming speed(m/min) 15m/min max
3. Forming stations 20 stations
4. Thickness 0.5 mm-1.2mm
5. Material of rollers CR15
6. Thickness of structure 20mm
7 Forming shaft diameter(mm) 70
8 Drive Gear
9 Type of cutting Hydraulic cutting
10. Control system PLC and inverter control
11. Install dimension(depend on the final design) 9.8m×0.85m×1.2m
12. Total weight (Approx) 4.5T
13. Screen Text screen /touch screen


Machine list:

Number Machine list Number
1 5 tons hydraulic decoiler 1 set
2 Feeding&leveling device 1 set
3 Gear box drive system 1 set
4 Main forming machine 1 set
5 Curving device 1 set
6 Hydraulic Cutting device 1 set
7 Auto stacker 6 meters 1 set
8 PLC control system 1 set
9 Hydraulic station 1 set

Technological process:

380v 60Hz 3 Phase Shutter Door Roll Forming Machine / Rolling Shutter Profile Machine

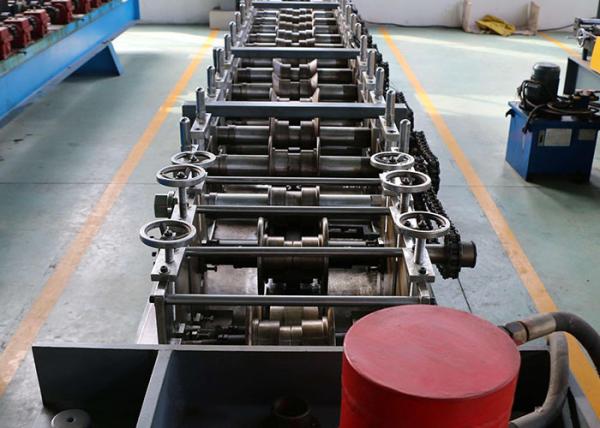

HIGH DUTY STRUCTURE :The sturcture we use for this machine has the higher duty mechanical behavior;

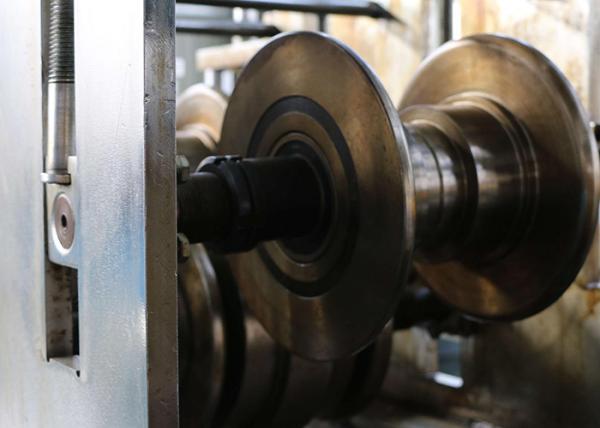

ROLLERS: The rollers processing by twice CNC machining and quenched, HRC 58-62;

CUTTING & PUNCHING :Cutting to length and punching the lock hole&angle edge;Mold material is Cr12 Mov;

Details of three parts ,pls check the pictures below

380v 60Hz 3 Phase Shutter Door Roll Forming Machine / Rolling Shutter Profile Machine

380v 60Hz 3 Phase Shutter Door Roll Forming Machine / Rolling Shutter Profile Machine

Our Advantage

1 . More individal service

If you have requrest of your using problem, like running space, operation program language. We can do better.

2 . Better after-sale service

Life long response within 12 hours , while you have question of running machine,

3 . More than 10 year working life

Our machine can steady running at least 10 years.Based on this situation, you could have stable productivity and avoid from fixing.
