Galvanized Steel Plate Door Frame Roll Forming Machine Full Automatic
Galvanized Steel Plate Door Frame Roll Forming Machine Full Automatic
Galvanized Steel Plate Door Frame Roll Forming Machine Full Automatic
Galvanized Steel Plate Door Frame Roll Forming Machine Full Automatic
Galvanized Steel Plate Door Frame Roll Forming Machine Full Automatic
Galvanized Steel Plate Door Frame Roll Forming Machine Full Automatic
Galvanized Steel Plate Door Frame Roll Forming Machine Full Automatic
Galvanized Steel Plate Door Frame Roll Forming Machine Full Automatic
Specifications
Brand Name :
YBT
Model Number :
YB525820
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Door Frame Automatic Roll Forming Machine
Voltage :
As Your Requirment or 380v, 60Hz, 3 phase or
Advantage :
Use Widely
Warranty :
12 Months
Thickness :
0.5-1.2mm
Material :
PI & PPGI
Description

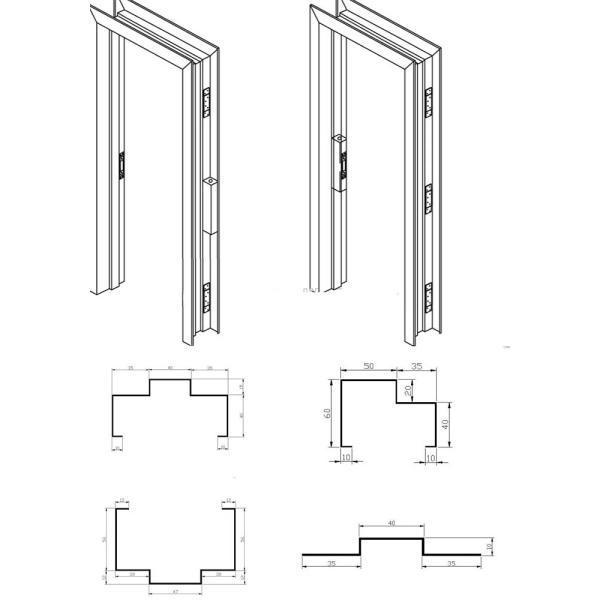

Galvanized Steel Plate Door Frame Automatic Roll Forming Machine

Specifications

1.

Power

requirement

 Type 380v/3ph/50hz
Main Motor power 11kw
Cutter power 5.5kw
2. Forming speed(m/min) 15m/min max Not include the time of cutting
3. Forming stations 20 stations
4. Thickness 0.5 mm-1.2mm
5. Material of rollers CR15
6. Thickness of structure 20mm
7 Forming shaft diameter(mm) 70
8 Drive Gear
9 Type of cutting Hydraulic cutting
10. Control system PLC and inverter control
11. Install dimension(depend on the final design) 9.8m×0.85m×1.2m Without panel length
12. Total weight (Approx) 4.5T Depend on final design
13. Screen Text screen /touch screen


Machine list:

Number Machine list Number
1 5 tons hydraulic decoiler 1 set
2 Feeding&leveling device 1 set
3 Gear box drive system 1 set
4 Main forming machine 1 set
5 Curving device 1 set
6 Hydraulic Cutting device 1 set
7 Auto stacker 6 meters 1 set
8 PLC control system 1 set
9 Hydraulic station 1 set

The roll forming machine can process Galvanized roller shutter door slat in bath and the desgin are in fashionable and widely used. Rolling Shutter Slat Machine With the highest security in rolling fire doors, Rolling Steel Doors, Fire Doors, rolling shutter, offshore rolling doors, offshore rolling fire doors, storm doors, Rolling steel hurricane doors, smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, and storm shutters. rolling steel doors, rolling steel fire doors, rolling fire shutters, insulated fire doors, rolling steel grilles. Roller shutter garage doors are designed for use in industrial, commercial, airports, retail, hotel, institutional, malls and shopping centers.

Technological process:

Galvanized Steel Plate Door Frame Roll Forming Machine Full Automatic

Application:

Galvanized Steel Plate Door Frame Roll Forming Machine Full Automatic

Features:

1 . Stand frame to make sure machine working steady, easy to adjust and repair in the further.
2 . High quality elements like PLC, motor and others. They can make sure machine working long time.
3 . Gear transmission to make sure working fast and steady.
4 . Two options of shearing system. Meanwhile based on flying cutting saw, we have our new design to make sure shearing fast and no burr.
