Shutter Door Slat Roll Forming Machine PLC Control 0.7-1.2mm​

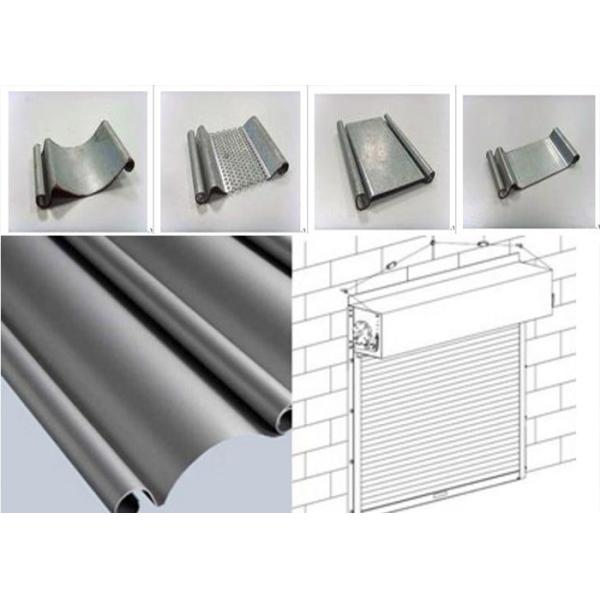

Shutter door slat roll forming machine there are serval types: European style shutter door machine, Australia style shutter door machine, shutter door with big holes, shutter door with perforation holes machine, shutter door U stud forming machine and others. No matter which type is made by the following process:decoiler→ sutomatic punching →feeder guide →roll forming→ flying cutting saw →run out table.

Specification of Shutter Door Slat Roll Forming Machine

a . Number of forming steps: 16 stations
b . Shaft material: 45# steel with quenched treatment, precision machined,
The diameter: ￠50mm
c . Roller material: Cr15Mov with quenched treatment
d .Transport: by gear
e . Forming speed: 8-10m/min
f . Motor: 4kw
g . Voltage: 380v, 50Hz,3 phase
h . Structure: independent stand

For the shearing system, we have two options for your reference. The first one is flying cutting saw, shearing can keep perfect shape of the shutter door. For the second one, hydraulic shearing, it has perfect shearing end, the shearing end is smooth, no burr like the above pictures I showed above.

Machine list:

The roll forming machine can process Galvanized roller shutter door slat in bath and the desgin are in fashionable and widely used. Rolling Shutter Slat Machine With the highest security in rolling fire doors, Rolling Steel Doors, Fire Doors, rolling shutter, offshore rolling doors, offshore rolling fire doors, storm doors, Rolling steel hurricane doors, smoke doors, air-leakage doors, counter shutters, insulated doors, rolling sound doors, and storm shutters. rolling steel doors, rolling steel fire doors, rolling fire shutters, insulated fire doors, rolling steel grilles. Roller shutter garage doors are designed for use in industrial, commercial, airports, retail, hotel, institutional, malls and shopping centers.

Technological process:

Application:

Features:
