Cold Roll Forming Machine / Steel Roof Batten Rock Wool Production Line
Cold Roll Forming Machine / Steel Roof Batten Rock Wool Production Line
Cold Roll Forming Machine / Steel Roof Batten Rock Wool Production Line
Cold Roll Forming Machine / Steel Roof Batten Rock Wool Production Line
Cold Roll Forming Machine / Steel Roof Batten Rock Wool Production Line
Cold Roll Forming Machine / Steel Roof Batten Rock Wool Production Line
Cold Roll Forming Machine / Steel Roof Batten Rock Wool Production Line
Cold Roll Forming Machine / Steel Roof Batten Rock Wool Production Line
Specifications
Brand Name :
YBT
Model Number :
BT528520
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Roof Batten Roll Forming Machine
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training ,Online support, , Field maintenance and repair service, Video technical support
Warranty :
1 Year
Thickness :
0.4-1.2mm
Material :
Galvanized Sheet(Gi),Cold Roll Steel(CRC),Hot Roll
Weight :
6.5T, 4.0 Tons, 5T, 4T, 4.6T
Description

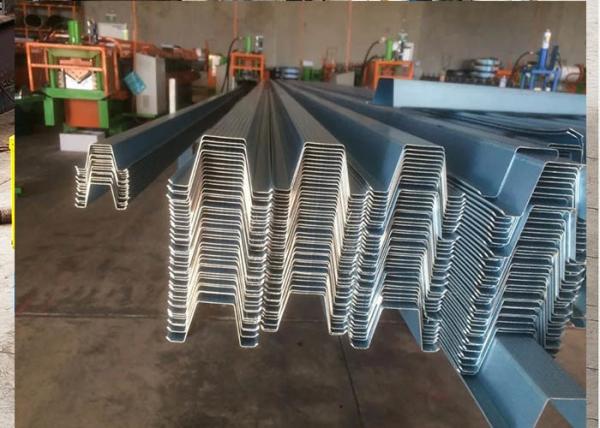

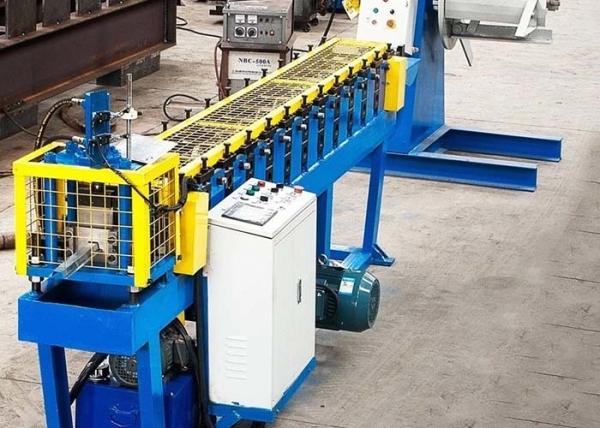

Thickness 0.4-1.2mm Cold Roll Steel Roof Batten Roll Forming Machine

YBT Machinery Equipment Co.,Ltd is professional manufacture of roll forming machine. We can provide design and instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied.The advantages of roof batten roll forming machine are as follows: Easy operation, low maintenance cost,Topspan style model is available.

1 . Components for the Machine:

Main motor power 5.5 kw.
Hydraulic station power 5.5kw.
Feeding width 1250mm.
Cover width 1092mm
Yield stress 235Mpa (33KSI) ~ 345Mpa (50KSI).
Roll forming Speed 15-18 m/min
3-4 m/minute (including step pressing and cutting)
Cutting Tolerance +/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm).

Manual Uncoiler Max. Capacity: 5000kgs.
Coil inner diameter 508mm.
Voltage 380V,3 Phase,50HZ,Or As per customer's request.
Numbers of stands 10 stations
Type of cutting Roll-formed and length-set profile cutting.

2 . Technical parameters

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English

Suitable for material with thickness 0.4-1.2mm
​Motor driving Gear chain transmission, 14 rollers to form
Main motor 5.5KW/7.5KW , Frequency speed control. Forming speed approx.18m/min
PLC Control System Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

3 . Process of Rolling form machine

Uncoiling →Infeed guiding →Roll forming →Pressing→Measure Length&Shearing →Sheet to Support Table

Cold Roll Forming Machine / Steel Roof Batten Rock Wool Production Line

Roof batten roll forming machine post cutter

Brand Original: China

No need to change cutter for different size,

made by high quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 20mm steel plate by welding
hydraulic motor:5.5KW, Hydraulic pressure range: 0-12Mpa

Cold Roll Forming Machine / Steel Roof Batten Rock Wool Production Line

Manual Decoiler: one set

Un-powered,manually control steel coil inner bore shrinkage and stop

Max. feeding width: 500mm, coil ID range 470mm±30mm

Capacity: Max. 3Ton

4 . After-sale service of roof batten roll forming machine

1 . The warranty of roof batten roll forming machineis one year after the client receives the machine.

Within the one year, we will courier the replacement parts to the client free of charge.

2 . We offer technical support for the entire life of our machines.We can send our technicians to install and train the workers in the clients' factories with extra cost.

3. Terms of trade of ceiling batten machine : a. Minimum order quantity (MOQ): 1 piece b.Delivery time: about 45 workdays c.Port of loading: port of Shanghai
