Specifications
Place of Origin :
China
Brand Name :
YBT
Certification :
CE ISO SGS
Model Number :
YB983459
MOQ :
1 Set
Price :
Negotiation
Packaging Details :
Standard export packing with each machine tied and protected in container
Delivery Time :
45-60 days
Payment Terms :
T/T
Supply Ability :
10set
Product Name :
Corrugated sheet forming machine
Production Capacity :
15-20m/min
Cutting blade material :
Cr 12 Mov,Quenched
Control system :
PLC
Use :
Roof
Warranty :
12 Months
Description

Roof Corrugated Sheet Roll Forming Machine Wall Panel roll forming Machine

Product Description

The finished product of roll forming machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.

Wall Panel Steel Roll Forming Machine Cr 12 Mov Cutting Blade Material

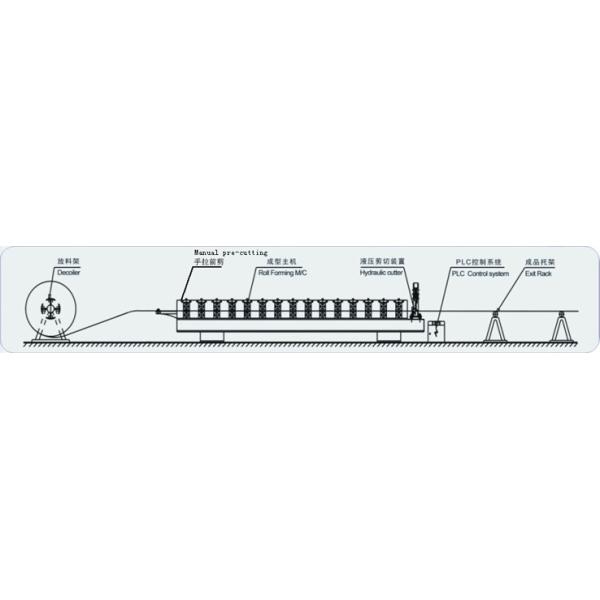

Flow chart:

Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--Exit Rack

Wall Panel Steel Roll Forming Machine Cr 12 Mov Cutting Blade Material

Main Technical Specifications:

Name of Roll Forming Machine Corrugated Roof Sheet Metal Sheet Rolling Machine Roll Forming Laminating Machine Price

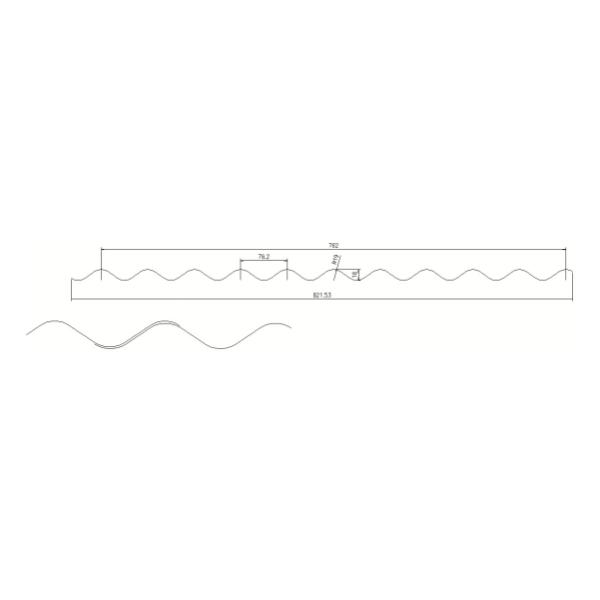

Profile Drawing or Sample Picture Wall Panel Steel Roll Forming Machine Cr 12 Mov Cutting Blade Material
1 Suitable raw material PPGI/PPGL/GI/GL Steel Coils
2 Thickness of coil sheet 0.3-0.6mm
3 Feeding Coil width 914mm
4 Effective width 760mm
5 Under frame 350H-beam
6 Diameter of Soild shaft 70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway

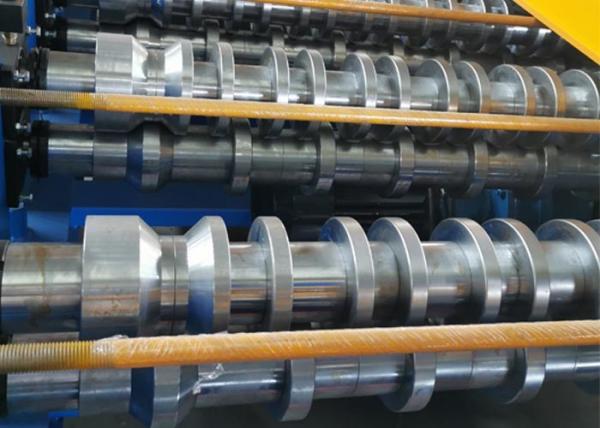

7 Roller

High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment,

hard chrome coated 0.05-0.07mm
8 Thickness of middle plate Guide pillar memorial archway
9 Forming stations 23
10 Drive type By chain(1.0 inch) link bearing
11 Power of main motor 5.5kw
12 Power of pump station 3kw
13 Forming speed About 15-20m/min
14 Hydraulic cutting Controlled by PLC
15 PLC DELTA, TAIWAN
16 Material of cutting blade Cr12Mov, quenching 58-62℃
17 Frequency converter

It has the advantage of slowing down before cutting, to ensure the

length accuracy(±1mm, far better than industrial

standard ±3mm).

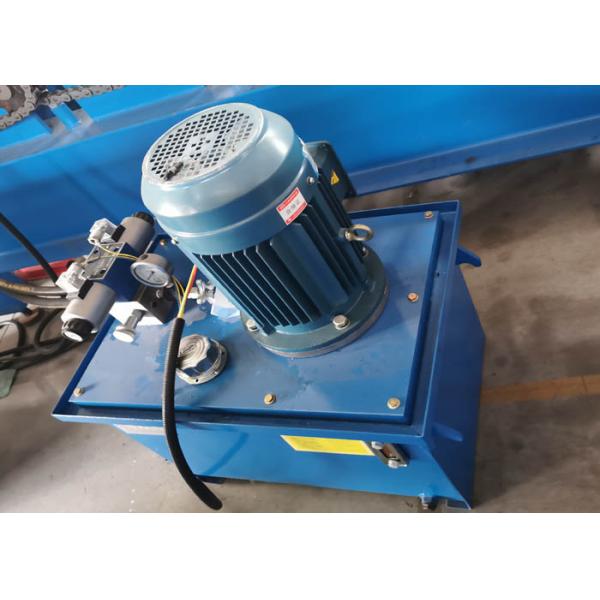

Name: Hydraulic Station

Power: 4kw
Hydraulic oil: 46# hydraulic oil
Working pressure:12-16Mpa adjustable
It is controlled by gear pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

Wall Panel Steel Roll Forming Machine Cr 12 Mov Cutting Blade Material

This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type roofing sheets.

The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.

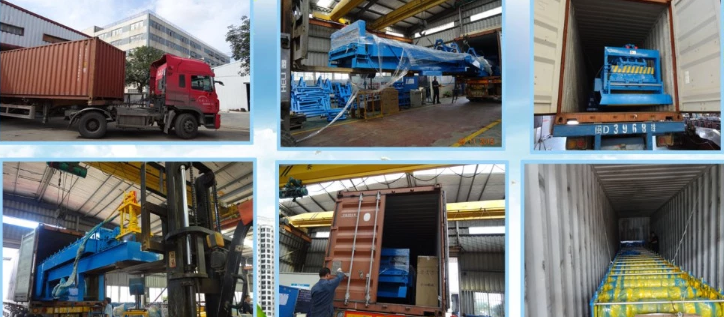

Packaging Details

1. We have professional technicians for loading.Guaranteed the goods load into container without any damage.
2. Transportation : Machines need one 40 feet container to hold.

Wall Panel Steel Roll Forming Machine Cr 12 Mov Cutting Blade Material
