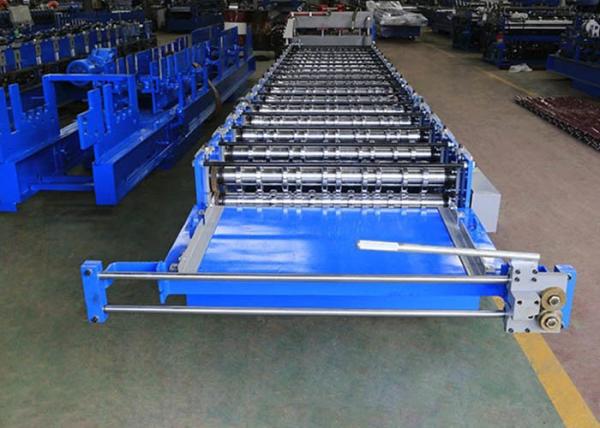

Roof Tile Glazed Tile Roll Forming Machine Color Steel PPGI PPGL PLC Control
Roof Tile Glazed Tile Roll Forming Machine Color Steel PPGI PPGL PLC Control
Roof Tile Glazed Tile Roll Forming Machine Color Steel PPGI PPGL PLC Control
Roof Tile Glazed Tile Roll Forming Machine Color Steel PPGI PPGL PLC Control
Roof Tile Glazed Tile Roll Forming Machine Color Steel PPGI PPGL PLC Control
Roof Tile Glazed Tile Roll Forming Machine Color Steel PPGI PPGL PLC Control
Roof Tile Glazed Tile Roll Forming Machine Color Steel PPGI PPGL PLC Control
Roof Tile Glazed Tile Roll Forming Machine Color Steel PPGI PPGL PLC Control
Specifications
Brand Name :
YBT
Model Number :
BT983459
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Glazed Roof Tile Roll Forming Machine
After-sales Service Provided :
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Warranty :
1 Year
Thickness :
0.3-0.7mm
Material :
PPGI,PPGL,Pre-Painted Steel
HS code :
84552210
Description

PLC Control Glazed Roof Tile Roll Forming Machine Color Steel PPGI PPGL

YBT Machinery Equipment Co.,Ltd is professional manufacture of roll forming machine. We can provide design and instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied.

1 . Components for the Machine:


The rollition driven forming stations, pressing die, cutting equipment, hydraulic station, PLC controler and manual unload product run out table.

Main motor power 5.5 kw.
Hydraulic station power 5.5kw.
Feeding width 1250mm.
Cover width 1092mm
Yield stress 235Mpa (33KSI) ~ 345Mpa (50KSI).
Roll forming Speed 15-18 m/min
3-4 m/minute (including step pressing and cutting)
Cutting Tolerance +/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm).

Manual Uncoiler Max. Capacity: 5000kgs.
Coil inner diameter 508mm.
Voltage 380V,3 Phase,50HZ,Or As per customer's request.
Numbers of stands 10 stations
Type of cutting Roll-formed and length-set profile cutting.

2 . Material of Main Equipment:

Roller Material High grade S45C forged steel, coated with hard chrome.
Active Shaft Material High grade S45C carbon wrought steel, diameter 76mm.
Electric Elements PLC control console, touch screen and transducer, from Siemens, Germany.
Other elements, from Schneider Electric, Germany.
Cutter Blades Cr12MoV steel with quenched treatment, hardness HRC58~61,
wear-resistance, good steel structure, long life.

Process of Rolling form machine

Roof Tile Glazed Tile Roll Forming Machine Color Steel PPGI PPGL PLC Control

Uncoiling →Infeed guiding →Roll forming →Pressing→Measure Length&Shearing →Sheet to Support Table

3 . Glazed Roof Tile of Model BT581041

Roof Tile Glazed Tile Roll Forming Machine Color Steel PPGI PPGL PLC Control

Material specification :Aluminum, alu-zinc, galvanized and pre-painted galvanized steel

Thickness : 0.3-0.7mm

Application :With the rise of tourism, glazed tile is widely used, the use of glazed tile most places, including gardens, temples, pavilions, walls, etc., because of the glazed tile has a good waterproof, and beautiful, so many villas often use glazed tile roof.

Others designs for Glazed tile as a reference

Roof Tile Glazed Tile Roll Forming Machine Color Steel PPGI PPGL PLC Control

4 . Packaging & Shipping

A . One 40ft container for loading one set machine with manual decoiler;
B . The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
C . Spare parts and some small parts packed in plastic tooling box;
D . All Components Fixed by steel wire with Container.

Roof Tile Glazed Tile Roll Forming Machine Color Steel PPGI PPGL PLC Control

5 . Our service

1 . Free technical support and free accessories supply.

2 . Engineer available to service machinery overseas.

3 . One year warranty is provided.

4 . Long life technical guidance for free.

5 . We always offer technical support, quick response, all your inquire will be replied in 24 hours.
