Floor Decking Steel Roll Forming Machine / Metal Roll Forming Equipment
Floor Decking Steel Roll Forming Machine / Metal Roll Forming Equipment
Floor Decking Steel Roll Forming Machine / Metal Roll Forming Equipment
Floor Decking Steel Roll Forming Machine / Metal Roll Forming Equipment
Floor Decking Steel Roll Forming Machine / Metal Roll Forming Equipment
Floor Decking Steel Roll Forming Machine / Metal Roll Forming Equipment
Specifications
Brand Name :
YBT
Model Number :
YB983459
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
floor deck tile machine
Thickness :
0.8-1.2mm
Power :
30kw
stress :
235-550Mpa
Shaft diameter :
75mm
Total weight of machine :
9500KGS
Description

0.8-1.2mm 30KW Color Steel Metal Roll Forming Machine Floor Decking Tile Machine

Application:
The metal floor deck produced by floor deck forming machine has high strength with high wave. It adheres well to concrete, used on industrial building and House Use. Metal ridge cap roll forming machine is the essential for its production

Technical data of steel corrgated roll forming machine

Suitable material color steel sheet;0.8-1.2mm,
Working speed about8-25m/min
stress 235MPa,345MPa,550MPa.
Power Main motor power: 22.5 Kw(Depend on final design)
Hydraulic station power: 7.5Kw(Depend on final design)
Material of forming rollers No.45 steel, plated with chrome on surface.
Material of cutter,pressing die Cr12 mould steel with quench treatment, HRC58-60
Material of shaft High quality 45# steel, Roller grinder milling.
Shaft diameter 72mm
Controlling system Mitsubishi PLC & converter
Total weight of machine About 9500KGS
Machine’s size

about 18m×1.8m× 1.5m (Depend on final design)


Floor Decking Steel Roll Forming Machine / Metal Roll Forming Equipment
Our Roll Forming Machine’s advantages

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong

2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.

3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.

5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.

6. powerful driving system: big inch train,or gear box driving system.

6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

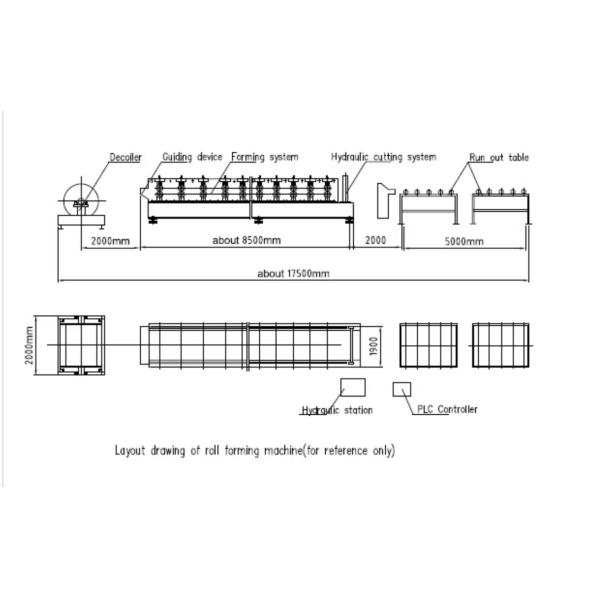

Layout drawing
Floor Decking Steel Roll Forming Machine / Metal Roll Forming Equipment

Serial No. Commodity & Description Quantity
1 5T manual uncoiler 1 set
2 Leveing guiding 1 set
3 Servo feeding device 1 set
4 Punching machine 1 set
5 Main roll forming machine 1 set
6 Hydraulic station 1 set
7 Cutting device 1 set
8 Finished products tabel 1 set
9 PLC control system 2 sets
10 Out tables 1 set
11 Spare parts 1 set


Floor Decking Steel Roll Forming Machine / Metal Roll Forming Equipment
Machine loading, packing and shipping
Usually the machies will be transported to the customer's workshop by shipping in containers. Sometimes, it aslo can be deliveried by train containers.
The container that we are use are commonly 20 feet and 40 feet containers. 2 feet and 40 feet high containers and top open containers are used as well.
It depends on the machines the customer ordered. We will try our best to find a most economical way for you.

Why choose us ?
Advanced machinery, well trained workers.
More than 12 years experience in roll forming machine Ad industry.
Unique designed, good quality, competitive price.
Full range of roll forming machine solution
