0.35 - 0.65mm Glazed Roof Tile Roll Forming Machine Pre Painted Steel Material
0.35 - 0.65mm Glazed Roof Tile Roll Forming Machine Pre Painted Steel Material
0.35 - 0.65mm Glazed Roof Tile Roll Forming Machine Pre Painted Steel Material
0.35 - 0.65mm Glazed Roof Tile Roll Forming Machine Pre Painted Steel Material
0.35 - 0.65mm Glazed Roof Tile Roll Forming Machine Pre Painted Steel Material
0.35 - 0.65mm Glazed Roof Tile Roll Forming Machine Pre Painted Steel Material
0.35 - 0.65mm Glazed Roof Tile Roll Forming Machine Pre Painted Steel Material
0.35 - 0.65mm Glazed Roof Tile Roll Forming Machine Pre Painted Steel Material
Specifications
Brand Name :
YBT
Model Number :
YB983459
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Glazed Roof Tile Sheet Roll Forming Machine
After-sales Service Provided :
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Warranty :
12 Months
Thickness :
0.35 - 0.65mm
Material :
Pre-Painted Steel,Color Steel
Control System :
PLC
Description

0.35 - 0.65mm Glazed Roof Tile Sheet Making Roll forming Machine Manufacturer

YBT Machinery Equipment Co.,Ltd is professional manufacture of roll forming machine. We can provide design and instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied.

YBT Glazed Roof Tile Equipment Technical Parameter

No. Item parameter
1 Machine size 8000*1700*1700mm
2 Machine weight 7000kg
3 Machine power 5.5kw
4 Hydraulic engine 5.5kw
5 Roll speed M/Min
6 Roll stations 16
7 Roller material 45#Steel
8 Effective width 800mm
9 Feeding width 1000mm
10 Voltage 380V 50Hz 3PH/Customized
11 Material thickness 0.35-0.65mm/Customized
12 Control System Schneider/Delta/Customized

COMPONENT FOR glazed tile forming machine
Name
Quantity
Units
Decoiler
1
Set
Main Machine
Feeding device
1
Set
Roll forming system
1
Set
Cut Equipment
1
Set
Hydraulic system
1
Set
Electric control system
1
Set
Supporter/Automatic Stacker
1
Set

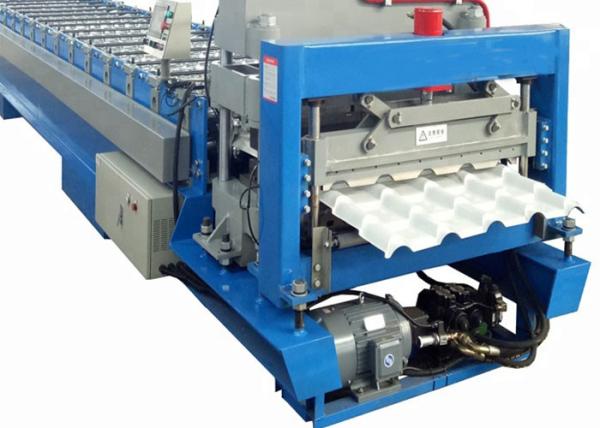

The rollition driven forming stations, pressing die, cutting equipment, hydraulic station, PLC controler and manual unload product run out table.

0.35 - 0.65mm Glazed Roof Tile Roll Forming Machine Pre Painted Steel Material

0.35 - 0.65mm Glazed Roof Tile Roll Forming Machine Pre Painted Steel Material

Uncoiling →Infeed guiding →Roll forming →Pressing→Measure Length&Shearing →Sheet to Support Table

Application :

With the rise of tourism, glazed tile is widely used, the use of glazed tile most places, including gardens, temples, pavilions, walls, etc., because of the glazed tile has a good waterproof, and beautiful, so many villas often use glazed tile roof.

0.35 - 0.65mm Glazed Roof Tile Roll Forming Machine Pre Painted Steel Material

Packaging & Shipping

A . One 40ft container for loading one set machine with manual decoiler;
B . The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
C . Spare parts and some small parts packed in plastic tooling box;
D . All Components Fixed by steel wire with Container.

Our service

1 . We can send our technicians to install and train the workers in the clients' factories with extra cost.

2 . The warranty of YBT Shutter Roll Forming Machine is one year after the client receives the machine.Within the one year, we will offer the replacement parts to the client free of charge.

3 . We offer technical support for the entire life of our machines.
