Specifications
Brand Name :
YBT
Model Number :
BT252607
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10 set
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Rectangle Square Downspout Roll Forming Machine
Type :
Tile Forming Machine
Color :
As your request
Usage :
downpipe system
Control system :
PLC
Warranty :
12 months
Description

Thickness 0.3-0.6mm Portable Steel Downpipe Roll Forming Machine with PLC

Product Application

This downpipe roll forming machine is for steel sheet or aluminum sheet cold-form industries. It can roll-forming the steel sheet according to the customer’s requirement continuously, automatically cut to length.The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for the metal downpipe.

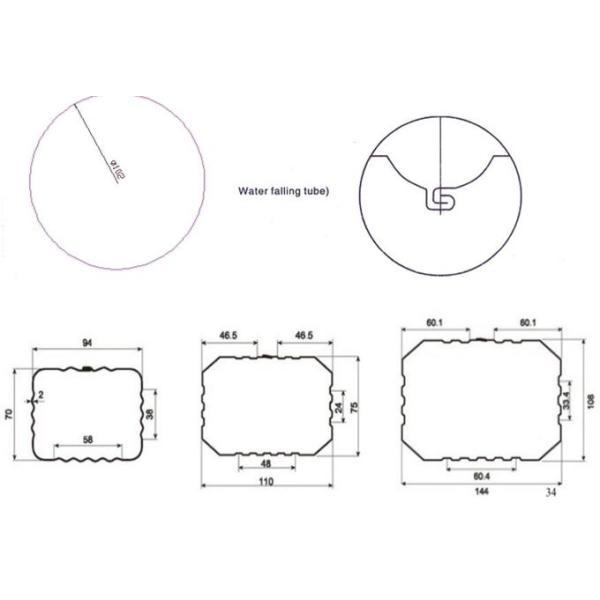

Downpipe Profile Drawing for Reference

Fully Automatic Rectangle Downpipe Roll Forming Machine Speed 12 - 18m Every Min

Technical details of downpipe roll forming machine

Condition New
Brand Name LBM
Voltage 380V or 220V
Warranty 12 month
Roller 16rows
Type Tile Forming Machine
Forming speed 12-18m/min
Dimension(L*W*H) 8500mm*1200mm*1500mm
Base 300H steel
Diameter of shaft 70mm
Roller material 45# steel or hard chromium plating
Cutting type Hydraulic cutting type
Cutting blade Cr12
Main motor Power(Kw) 4KW
Weight 3-4t
Color As your request
Material thickness 0.3-0.7mm or As your request
Material width 330mm or As your request
Transmission type Chain transmission+deceleration motor
Automation Full-automatic
Control system PLC
Place of Origin Jiangsu, China (Mainland)
After-sales Service Provided Engineers available to service machinery overseas

Main Components

Commodity & Description Quantity
manual uncoiler 1 set
feed and guiding device 1 set
Main roll forming machine 1 set
Straighten device 1 set
Hydraulic cutting equipment 1 set
Output table 1 set
Main drive 1 set
Hydraulic system 1 set
Controlling system (including cabinet) 1 set
Downpipe elbow bending machine 1 set
Seaming machine 1 set

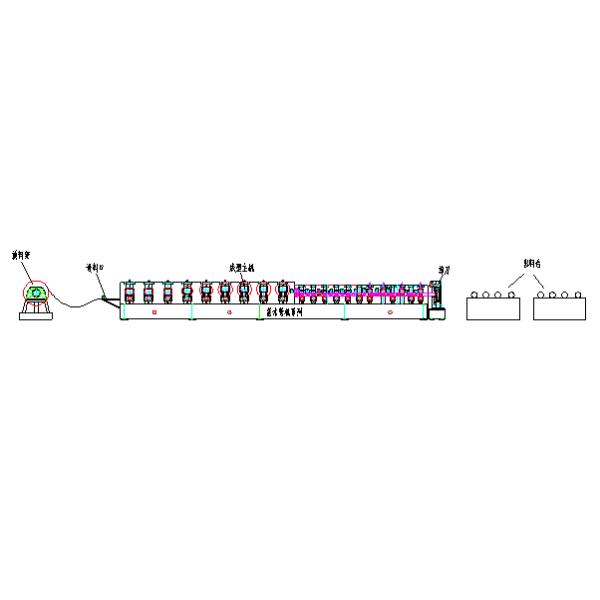

The Chart of Process Flow

Manual Uncoiler—Roll Forming—Cutting—out table

Fully Automatic Rectangle Downpipe Roll Forming Machine Speed 12 - 18m Every Min

Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after the date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the following circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3: Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if the manufacturer’s engineer has to be send to the purchaser’s factory to maintain the machine during the guarantee period.
