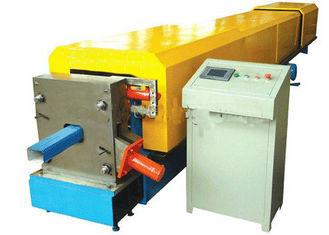

Durable Full Automatic Downspout Roll Forming Machine With PLC Control
Durable Full Automatic Downspout Roll Forming Machine With PLC Control
Durable Full Automatic Downspout Roll Forming Machine With PLC Control
Durable Full Automatic Downspout Roll Forming Machine With PLC Control
Durable Full Automatic Downspout Roll Forming Machine With PLC Control
Durable Full Automatic Downspout Roll Forming Machine With PLC Control
Durable Full Automatic Downspout Roll Forming Machine With PLC Control
Durable Full Automatic Downspout Roll Forming Machine With PLC Control
Specifications
Brand Name :
YBT
Model Number :
BT252607
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10 set
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Downspout Roll Forming Machine
Type :
Tile Forming Machine
Color :
As your request
Usage :
downpipe system
Control system :
PLC
Warranty :
12 months
Description

Durable Full Automatic Downspout Roll Forming Machine with PLC control

Product Application

This downpipe roll forming machine is for steel sheet or aluminum sheet cold-form industries. It can roll-forming the steel sheet according to the customer’s requirement continuously, automatically cut to length.The equipment adopts PLC control, AC frequency and adjusting the speed technology, and it realizes the continuous automatically production, therefore, it is really a new type of energy-saving and high-effective producing equipment for the metal downpipe.

Durable Full Automatic Downspout Roll Forming Machine With PLC Control

The Chart of Process Flow

Manual Uncoiler—Roll Forming—Cutting—out table

Durable Full Automatic Downspout Roll Forming Machine With PLC Control

Decoiler

Type Manual type(standard) Hydraulic type(option)
Width 500mm 600mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ450-550mm φ450-550mm
Outer diameter φ1500mm φ1800mm

roll forming

Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)
Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming
Forming stations 16-22 stations(according to the profiles)
Machine rollers high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
Machine Shaft φ70-80mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 1 inch chain or gear box(option)
Machine power 5.5kw-11kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Decoiler

Type Manual type(standard) Hydraulic type(option)
Width 500mm 600mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ450-550mm φ450-550mm
Outer diameter φ1500mm φ1800mm

roll forming

Item Parameter detail
Processing Material GI and PPGI
Material thickness 0.25-0.8mm
Machine frame 360#H steel, Adopt diagonal line welding, leveling instrument measurement to make sure the final frame is high-precision
Machine siding panel
plate type Pillar type(option)
Plate thickness:20mm Pillar thickness:30mm
Painting:normal painting painting:Chroming
Forming stations 16-22 stations(according to the profiles)
Machine rollers high grade No.45 forged steel,plated hard chroming with thickness 0.05mm
Processing way:cutting--drilling--CNC lathing--quenching--CNC lathing--chroming
Machine Shaft φ70-80mm high garde No.45 steel after treatment,
Machine spacers CNC lathing in high-precision
Machine bearings China Haerbin bearing or SKF international bearing(option)
Driving system 1 inch chain or gear box(option)
Machine power 5.5kw-11kw(according to the profiles)
Machine working speed 8-12m/min or 10-30m/min(option)
Machine adjust type After machine installation, we will test it ourselves, compare with the profile drawing, the difference is controlled in 0.5mm

Cutting

Type Mould type
Durable Full Automatic Downspout Roll Forming Machine With PLC Control
Blade material Cr12mov quenching and grinding
Frame processing the whole bottom frame is grinding for high-precision
Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type

Stacker

Type Manual Auto(option)
Length 2 pieces 6m or 12m

PLC

Main item Parameter detail
PLC Delta(standard) or according to your request
Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

Package Type:

Nude, the computer controlling part is packed with water proof cloth.
The adjustable roll forming machine packed 20 feet container, it fit for ocean shipping. we have good relationship wih the shipping agent to get good freight price for you and you can also find yourself at your side.
