Gantry Cantilever Automated Welding Machine 0.15 - 1.0 M Every Min 10kw
Gantry Cantilever Automated Welding Machine 0.15 - 1.0 M Every Min 10kw
Gantry Cantilever Automated Welding Machine 0.15 - 1.0 M Every Min 10kw
Gantry Cantilever Automated Welding Machine 0.15 - 1.0 M Every Min 10kw
Gantry Cantilever Automated Welding Machine 0.15 - 1.0 M Every Min 10kw
Gantry Cantilever Automated Welding Machine 0.15 - 1.0 M Every Min 10kw
Gantry Cantilever Automated Welding Machine 0.15 - 1.0 M Every Min 10kw
Gantry Cantilever Automated Welding Machine 0.15 - 1.0 M Every Min 10kw
Specifications
Brand Name :
YBT
Model Number :
YT372360
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3 sets per month
Delivery Time :
65-90 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
H-beam welding line
Material :
steel
Warranty :
1 Year
Welding speed :
0.15-1.0m/min
Total power :
10kw
Web height :
200-1500 mm
Description

Automatic 0.15 - 1.0 m / min Gantry Cantilever H Beam Welding Machine

Production Description:

The H beam automatic welding line consists of slitting and cut to length machine,web forming machine,flange,wed feeding machine,corrugated web H-beam robot automatic welding machine,corss-section cutting,output system and so on. This machine has high quality,high efficiency,full-automation.It centralize the assembly, welding and straightening functions on one machine which saves space and economize workshop.


Technical Parameter:

Name Specification
Rail gauge 4000 mm
Web height 200~1500 mm
Flange width 200~800 mm
Work-piece length 4000~15000 mm or as customer's request
Welding type Boat-type welding
Welding speed 0.15~1.0 m/min
Returning speed 3 m/min
Total power 10 kW

Above are our standard model, it can be designed

and manufactured according to customer's request.

Production Show:

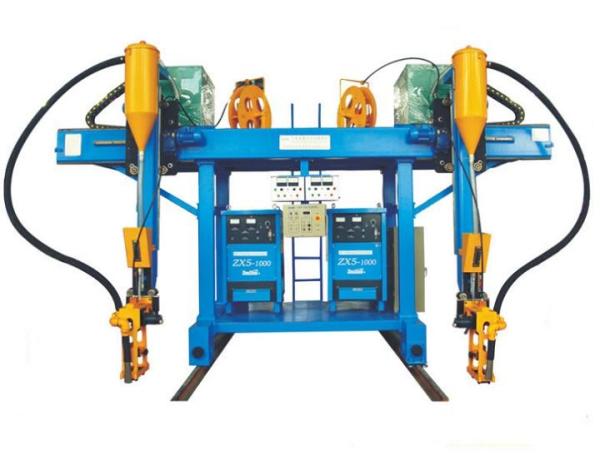

Gantry Cantilever Automated Welding Machine 0.15 - 1.0 M Every Min 10kw

1 . Equipment structures type: Gantry gate move type & Cantileversubmerged machine

2 . Gantry gate drive method: AC motor and R series worm reducer.

3 . Welding speed: 0.15~1.5m/min.

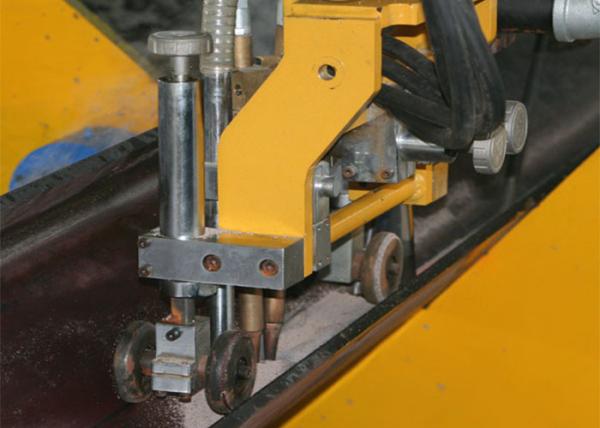

4 . Arc guide frame head function is to mechanically track up and down, left and right.

5 . Imported frequency converter is able to realize gantry gate stepless speed adjustment, with wide speed adjustment range, high

accuracy and constant output torque.

6 . Electrical control cabinet: main control cabinet and remote operation box.

7 . Welding Quantity: two h-beam once completed

8 . It has variable speed, indicated by digit displayer. The whole machine is controlled by PLC.

Components of the Gantry Cantilever H Beam Welding Machine:

No. Name Quantity
1 slitting and cut to length machine 1 set
2 web forming machine 1 set
3 flange,wed feeding machine 1 set
4 corrugated web H-beam robot automatic welding machine 1 set
5 corss-section cutting 1 set
6 output system 1 set
7 PLC control system 1 set

Gantry Cantilever Automated Welding Machine 0.15 - 1.0 M Every Min 10kw

Processing flow:

Plate cutting ---Cutting lay-off---Hanger plate---T type assemblying---90°Turn---Hoisting-H beam assembly---Hoisting--- Welding of angle seam I--- 90° turn---Welding of angle seam II---180° Turn---Welding of angle seam III---90° turn---Welding of angle seam IV---Convery---Rectification of Flange slab I---90° turn---Hoisting---Rectification of Flange slab II---Convery---Welding Of rib according to practical---Convery---Surface Impeller blasting---Remove blast--- Convey---Oilpaint---Packing for leaving

Finished H beams are as follow:

Gantry Cantilever Automated Welding Machine 0.15 - 1.0 M Every Min 10kw

Service Commitment & Quality Assurance:
Installation: If necessary, engineer is available to service machinery overseas; but all the relevant cost and extra 100USD/day for our engineer will be paid by the buyer.

Warranty: 1 year since the machine leave seller's factory.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged, those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.

Product tags

automatic gantry welding machine

,

earth welding machine

,

cnc radial drilling machine
Send your message to this supplier
Send Now
