Specifications
Brand Name :
YBT
Model Number :
YB952605
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
floor deck tile machine
Thickness :
0.8-1.2mm
Power :
30kw
stress :
235-550Mpa
Shaft diameter :
75mm
Total weight of machine :
9500KGS
Description

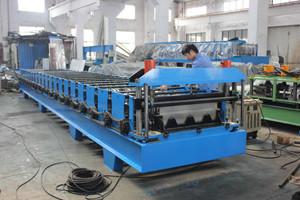

Popular Floor Deck Roll Forming Machine Galvanized Steel Roofing Sheet Making Machine

Application:

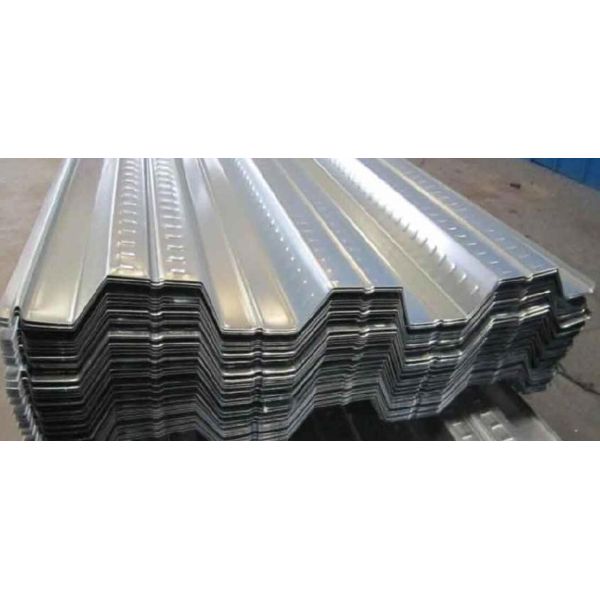

The metal floor deck produced by floor deck forming machine has high strength with high wave. It adheres well to concrete, used on industrial building and House Use. Metal ridge cap roll forming machine is the essential for its production

Technical data of steel corrgated roll forming machine

Item NO.

Description

Unit Type

Specifications
1 Steel Thickness mm 0.8-2.0
2 Forming Speed m/min About 8-20
3 Roller stations stations 24
4 Roller Material 45# steel
5 Shaft diameter mm 85
6 Main Motor Power Kw 22kw
7 Hydraulic cutting Power Kw 3kw
8 Hydraulic pressure Mpa 12
9 Power Supply 380V, 50HZ, 3 phase
10 Tolerance mm 1.0
11 Material of cutting Cr12
12 Control system PLC with touch screen


Concrete Floor Tile Making Machine Galvanized Steel Roofing Sheet Production
Our Roll Forming Machine’s advantages

1. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong

2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.

3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.

5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.

6. powerful driving system: big inch train,or gear box driving system.

6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

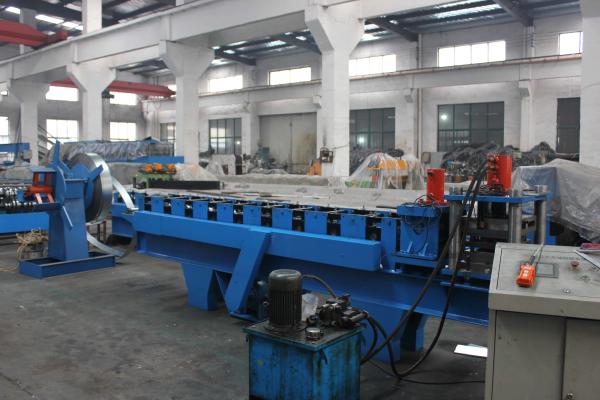

Layout drawing
Concrete Floor Tile Making Machine Galvanized Steel Roofing Sheet Production

Serial No. Commodity & Description Quantity
1 5T manual uncoiler 1 set
2 Leveing guiding 1 set
3 Servo feeding device 1 set
4 Punching machine 1 set
5 Main roll forming machine 1 set
6 Hydraulic station 1 set
7 Cutting device 1 set
8 Finished products tabel 1 set
9 PLC control system 2 sets
10 Out tables 1 set
11 Spare parts 1 set


Concrete Floor Tile Making Machine Galvanized Steel Roofing Sheet Production
Concrete Floor Tile Making Machine Galvanized Steel Roofing Sheet Production
Machine loading, packing and shipping
Usually the machies will be transported to the customer's workshop by shipping in containers. Sometimes, it aslo can be deliveried by train containers.
The container that we are use are commonly 20 feet and 40 feet containers. 2 feet and 40 feet high containers and top open containers are used as well.
It depends on the machines the customer ordered. We will try our best to find a most economical way for you.

Concrete Floor Tile Making Machine Galvanized Steel Roofing Sheet Production

Why choose us ?
Advanced machinery, well trained workers.
More than 12 years experience in roll forming machine Ad industry.
Unique designed, good quality, competitive price.
Full range of roll forming machine solution
