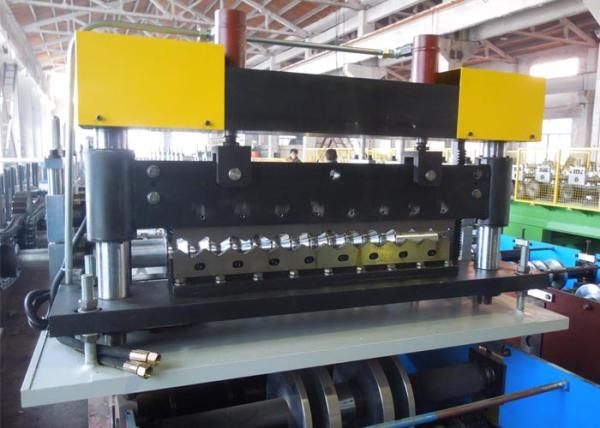

Steel Structure Floor Deck Roll Forming Machine / Corrugated Sheet Making Machine
Steel Structure Floor Deck Roll Forming Machine / Corrugated Sheet Making Machine
Steel Structure Floor Deck Roll Forming Machine / Corrugated Sheet Making Machine
Steel Structure Floor Deck Roll Forming Machine / Corrugated Sheet Making Machine
Steel Structure Floor Deck Roll Forming Machine / Corrugated Sheet Making Machine
Steel Structure Floor Deck Roll Forming Machine / Corrugated Sheet Making Machine
Steel Structure Floor Deck Roll Forming Machine / Corrugated Sheet Making Machine
Steel Structure Floor Deck Roll Forming Machine / Corrugated Sheet Making Machine
Specifications
Brand Name :
YBT
Model Number :
YT840065
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
65 - 90 work days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Floor deck panel
Thickness of plate :
0.6 - 1.0mm
Raw material :
steel / metal
Warranty :
1 Year
Material of forming roller :
45# steel
Width of plate :
1250mm
Description

18.5KW Corrugated Floor Deck Roll Forming Machine Easy To Installation

Metal floor deck profile sheets are produced by the floor deck roll forming machine, the finished products are of many features, simple shape, large wave height, high intensity and good adhesiveness when pouring the concrete together with the welded steel wire net on-site, in the high story building.

Technical parameters:

1. Model Number YX75-900
2. Size 16000*1800*1500mm
3. Weight 20000KGS
4. Motor Power 22KW
5. Hydraulic Power 37KW
6. Material of principal axis high grade 45# fogred steel
7. Voltage 220V/60HZ/3PH
8. Forming Steps 28steps
9. Processing Speed 8-14m/min
10. Thickness 0.8-1.5mm
11. Feeding Material Width 1218mm
12. Effective Width 900mm
13. Height of Roofing 75mm

Working flow:

Steel Structure Floor Deck Roll Forming Machine / Corrugated Sheet Making Machine

Detailed information:

Roll stages 25 stages
Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated
Shafts diameter 75/95mm
Material of Cutting Blade Cr12, heat treatment
Main Motor Power 15 KW with reducer
Hydraulic Group Power 5.5KW
Electric standard
380V /50Hz/3PH or as customer require
Working speed 15m/min (Higher speed is available, according to customer's requirements
Frame Design Wall-plate-frame-design
Main body color
RAL 5015 (Blue) or as customer require

Steel Structure Floor Deck Roll Forming Machine / Corrugated Sheet Making Machine

Packaging & Shipping:
A . One 40ft container for loading one set machine with decoiler;
B . The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
C . Spare parts and some small parts packed in plastic tooling box;
D . All Components Fixed by steel wire with Container.
