Metal Floor Tiles Making Machine Russian European Style Diameter 95mm
Metal Floor Tiles Making Machine Russian European Style Diameter 95mm
Metal Floor Tiles Making Machine Russian European Style Diameter 95mm
Metal Floor Tiles Making Machine Russian European Style Diameter 95mm
Metal Floor Tiles Making Machine Russian European Style Diameter 95mm
Metal Floor Tiles Making Machine Russian European Style Diameter 95mm
Metal Floor Tiles Making Machine Russian European Style Diameter 95mm
Metal Floor Tiles Making Machine Russian European Style Diameter 95mm
Specifications
Brand Name :
YBT
Model Number :
YT399502
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10 sets / month
Delivery Time :
65-90 work days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Floor deck panel
Thickness of plate :
0.8 - 1.2mm
Raw material :
steel / metal
Warranty :
1 Year
Material of forming roller :
45# steel
Width of plate :
1200mm
Description

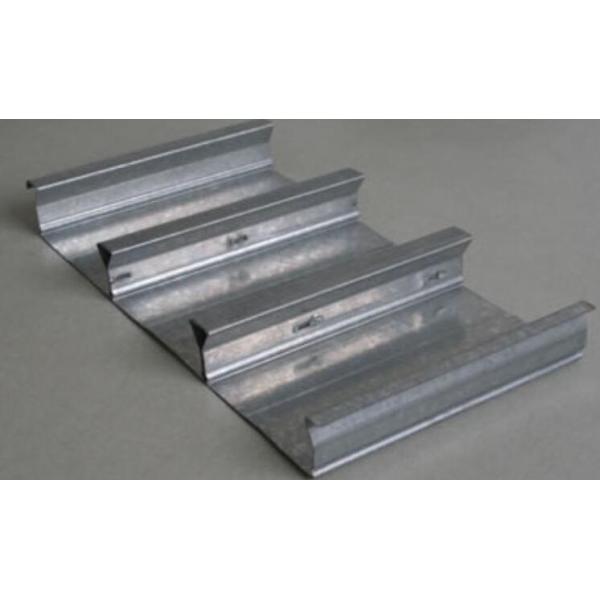

Diameter 95mm Floor Deck Roll Forming Machine Russian / European Style

Floor decking machine main material is galvanized sheet material, via pressure-type device be pressed into different types of floor boards, mainly as a multi-level and multi-storey factory building structure instead of the original template. Floor decking machine replace the tradition way, this is a good way to protect woods. Using the floor deck can improve the rigidity of the floor, saving the amount of steel and concrete. It is a part of the structural strength. Compared with the old ways, using floor deck is easy to installation and construction, and can save much time.

Technical Parameters of Floor Decking:

1. Steel Sheet Thickness: 0.75-1.2mm (depend on requirement )
2. Transmission way: single chain
3. Transmission material: 45# steel, high frequency quenching
4. Material of blad: Cr12, quenching treatment
5. Capacity of Decoiler: 5 ton passive decoiler
6. Forming Speed: 8-12m/min
7. Roller Groups: 28 stations
8. Roller Material: 45# steel, high frequency quenching treatment, HRC58-62
9. Feeding material: galvanized steel
10. Principal Axis: 45#steel with quenching treatment
11. Main motor power: 18.5 Kw
12. Hydraulic power: 7.5Kw

Working flow:

Metal Floor Tiles Making Machine Russian European Style Diameter 95mm

Mchine composition Quantity Detailed information
5T Hydraulic decoiler 1 set

Hydraulic system to expand coil inner hole; Pump motor: 3.0KW

Frequency Inverter to regulate turn speed; Motor:5.5KW

Coil Inner diameter=510±30mm. Coil Outer diameter Max. 1300mm;

Load Capacity: Max. 5T; Coil Width Max. 1250mm
Hydraulic Pre-cutting Device 1 set Smart cut control, to cut off the end of the final plece of sheet only

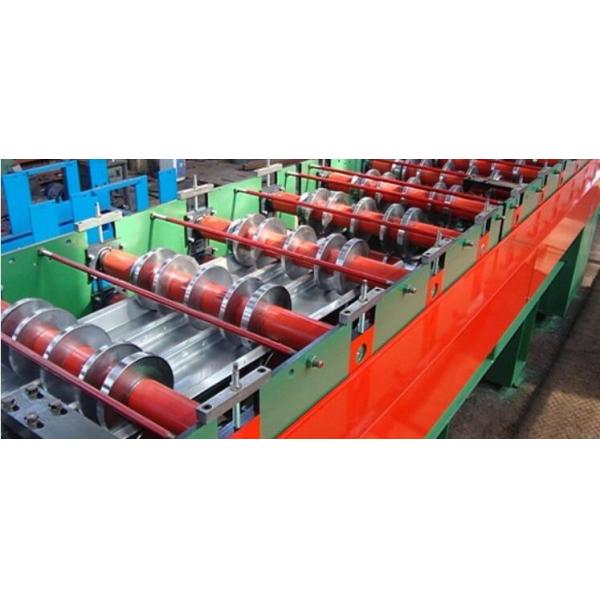

Cold Rolling Mills 1 set

Feeding section with guide

Wall-plate-frame design

Gear/Sprocket driving; 29-step to form

Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated

Shafts Diameter=95mm, Precision Machined

Main motor=15 WX2,

Max. speed of roll former:max. 18-20m/min
Hydraulic cutting device 1 set

Stop to cut , post cut, slug breaker

Cutting tool material: Cr12, heat treatment; mould steel with quenched treatment

Hydraulic unit, Pump motor=5.5KW
PLC Control System 1 set

Control the quality and cutting length automatically;

Combined with PLC, Inverter(Delta), Touch Screen(Weinview), Encoder(Omron) and so on.

Cut to length tolerance≤±2mm

Control voltage 24V
Exit table 1 set 4 meters long, un-powered


Metal Floor Tiles Making Machine Russian European Style Diameter 95mm

Metal Floor Tiles Making Machine Russian European Style Diameter 95mm

Metal Floor Tiles Making Machine Russian European Style Diameter 95mm

1: rapid construction of steel structures to adapt to the requirements of the body, providing a firm operating platform in a short time, and can use multiple floors laying steel sheeting, water pouring layered construction of concrete panels.

2: Floor boards as concrete slab tensile reinforcement, but also improve the rigidity of the floor, saving the amount of steel and concrete.

3: The pressure plate embossed surface make concrete between the floor boards and the greatest binding force, so that the two form a whole, with stiffening ribs to make floor plate system with high-strength bearing capacity.

4: In the boom conditions, the floor boards only as permanent formwork. The length of the cantilevered section properties may vary depending on the floor boards to be. To prevent cracking cantilevered plate at the support required in accordance with structural engineers design coupled with negative reinforcement.
