Corrugated Steel Panel Roll Forming Machine 18 Rollers 180KW Large Capacity
Corrugated Steel Panel Roll Forming Machine 18 Rollers 180KW Large Capacity
Corrugated Steel Panel Roll Forming Machine 18 Rollers 180KW Large Capacity
Corrugated Steel Panel Roll Forming Machine 18 Rollers 180KW Large Capacity
Corrugated Steel Panel Roll Forming Machine 18 Rollers 180KW Large Capacity
Corrugated Steel Panel Roll Forming Machine 18 Rollers 180KW Large Capacity
Corrugated Steel Panel Roll Forming Machine 18 Rollers 180KW Large Capacity
Corrugated Steel Panel Roll Forming Machine 18 Rollers 180KW Large Capacity
Specifications
Place of Origin :
China
Brand Name :
YBT
Certification :
CE ISO SGS
Model Number :
YB983459
MOQ :
1 Set
Price :
Negotiation
Packaging Details :
Standard export packing with each machine tied and protected in container
Delivery Time :
60-90 days
Payment Terms :
T/T
Supply Ability :
10set
Name :
silo roll forming machine
Raw Material :
galvanized sheet, zinc aluminum sheet
Forming Stations :
18 rollers
Main Power :
about 180KW
Total Weight :
70T
Material of Roller :
GCr15 quenching HRC 58-62°
Description

Steel Silo Corrugated Side Panel Roll Forming Machine Silo Roll Forming Machine

  • Features

    1. Large capacity

    One single-silo capacity is up to 17,000 tons with comprehensive configurations to meet customers’ different requirements.

    2. High accuracy

    Complete advanced processing equipment and technology are introduced from USA to effectively ensure working accuracy and reduce damage to galvanized layer.

    3. Less residues

    External installable stiffeners contribute to less grain residues on silo walls.

    4. Detachable and movable

    With standardized and modularized production, components and parts have a high standardization and good interchangeability, thus can be partially replaced or completely transferred.

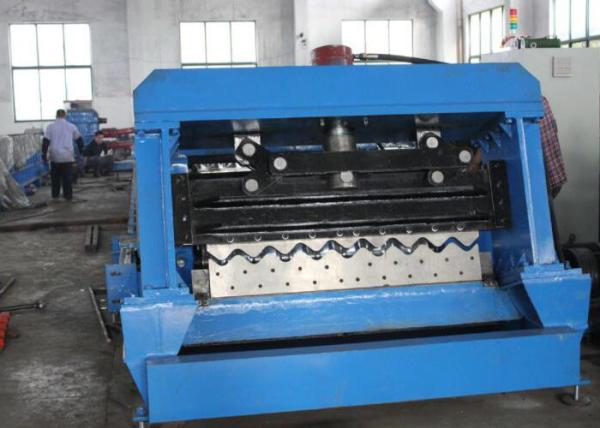

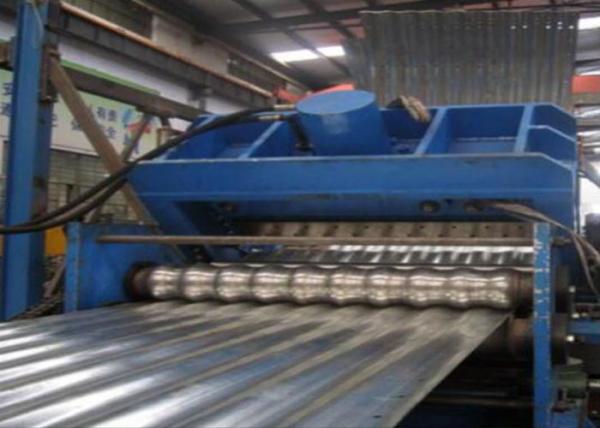

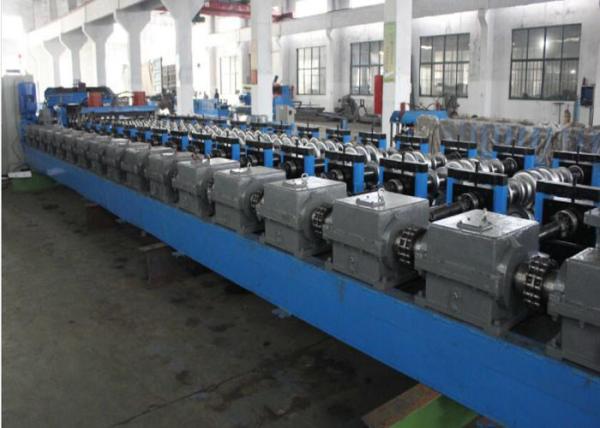

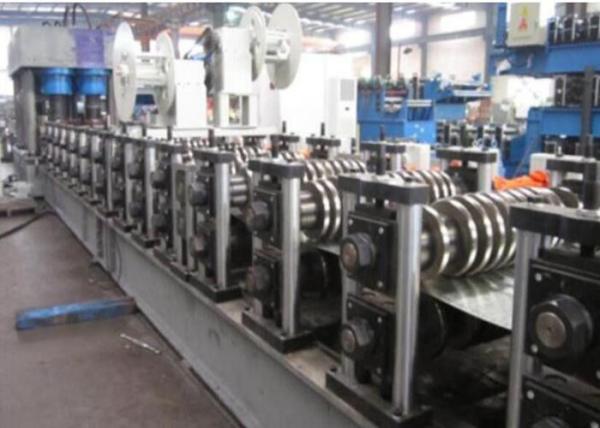

Corrugated Steel Panel Roll Forming Machine 18 Rollers 180KW Large Capacity Corrugated Steel Panel Roll Forming Machine 18 Rollers 180KW Large Capacity

Component

De coiler

Material width adjusting and guiding equipment

Roll former

Curving equipment

Cutting machine

Hydraulic control system

Technical process

Decoiling →Guiding→Cutting→Roll forming→Curving equipment

Technical parameter

Suitable Raw Material galvanized sheet, zinc aluminum sheet
Material’s Strength 310MPa
Material’s Thickness 1.2-4.5mm
Forming Stations 18
Max. Feeding Width 1250mm
Diameter of Roller’s Shaft 120mm
Producing Speed 4-8m/min
Material of Roller GCr15 quenching HRC 58-62°
Drive Mode gearbox
Main Power about 180KW
Electrical Control System PLC frequency control
Power Supply AC 440V & 50HZ & 3PH
Dimension(L*W*H) 35m*4.5m*4.5m
Total Weight approx 70T

Corrugated Steel Panel Roll Forming Machine 18 Rollers 180KW Large Capacity
