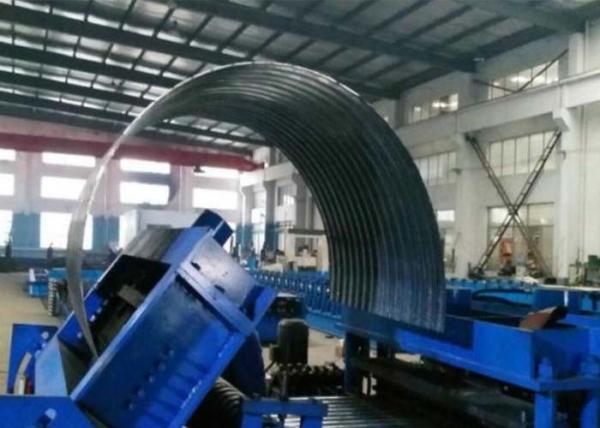

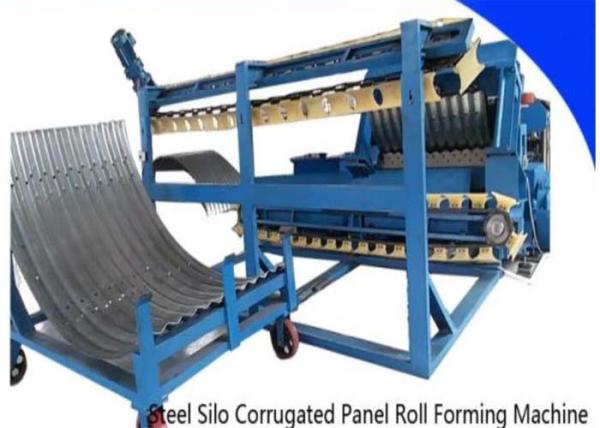

Panel Roll Forming Machine For grain silo Steel Silo Corrugated Roller Machine

• Features

  1. Large capacity

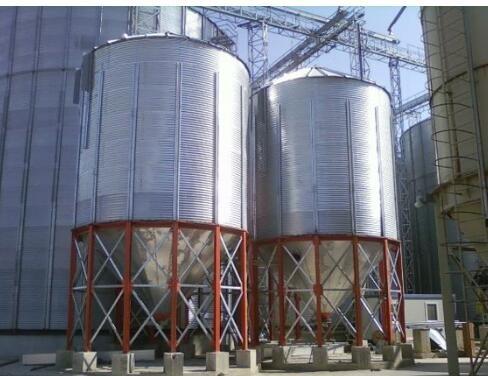

  One single-silo capacity is up to 17,000 tons with comprehensive configurations to meet customers’ different requirements.

  2. High accuracy

  Complete advanced processing equipment and technology are introduced from USA to effectively ensure working accuracy and reduce damage to galvanized layer.

  3. Less residues

  External installable stiffeners contribute to less grain residues on silo walls.

  4. Detachable and movable

  With standardized and modularized production, components and parts have a high standardization and good interchangeability, thus can be partially replaced or completely transferred.

• Profile Drawing



  Component

  De coiler

  Material width adjusting and guiding equipment

  Roll former

  Curving equipment

  Cutting machine

  Hydraulic control system

  Technical process

  Decoiling →Guiding→Cutting→Roll forming→Curving equipment



  Technical process

  1) Main power:7.5.KW motor made in China

  2) Roll stations: 18 stations

  3) single row 1.0inch chain drive

  4)Diameter of shaft:75mm

  5) Cutting system: hydraulic stop-to-cut

  6) cutting Length tolerance:3±1.5mm

  7) Working speed:12-15m/min(not including the cutting time)

  8) Thickness: 0.3mm--0.8mm,G350--550Mpa tensile galvanized or prepainted steel sheet.

  9) Coil input width size:760mm.914mm.925mm

  10) Material of roller:45# ,HRC45--52

  11) Material of blade mould:Cr12, quenched 58-62

  12) Size of machine: approx8.5m*1.4m*1.4m

  13) Machine structure:wall structure (see the picture below)

  15) Hydraulic power:5.5kw

  16)Hydraulic pressure :12Mpa

  17) The solenoids are from in Taiwan

  18) the hydraulic pipes are from Chinese famous brand

  18) way of control:PLC control,Siemens made in Germany

  19)Yaskawa inverter made in Japan

  20) All of the contactors are Schneider/Omron brand

  21) All of the switches are Omron brand

  22) Omron encoder measures the length

  23) Electrical:380V,50Hz,3Ph

  24) air plugs installed on the PLC cabinet

•
