Specifications
Brand Name :
YBT
Model Number :
YB983459
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
60-90 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Steel Silo Roll Forming Machine
Voltage :
As Your Requirment or 380v, 60Hz, 3 phase or
Advantage :
Use Widely
Warranty :
12 Months
Thickness :
0.8-4.0mm
Material :
PI & PPGI
Description

Industrial Steel Corrugated Galvanized Sheet Silo Roll Forming Machine

We offer Steel Silo Cold Roll Forming Machine design according to customer requirement. Whole production line with full automatic PLC control. The advantage of our machine:high accuracy,easy control,effective and convenient,energy-saving.

Specification of Ceiling Silo Roll Forming Machine

NO. Items Unit Parameters

1

Material

 Type Low carbon steel,Galvanized steel,etc
Tensile strength Map ≥450
Thickness mm 0.8-4.0mm
2 Production speed m/min 4
3 Roller material GCr15 Quenching treatment
4 Drive type Gearbox
5 Motor power kw About 152
6 Electric control system PLC frequenvy motor
7 Dimension(Length*Width*Height) m 40X5X3.9


Machine list:

Number Machine list Number

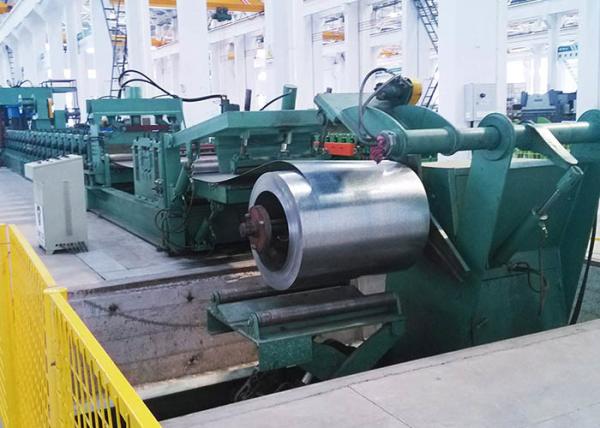

1 5 tons hydraulic decoiler 1 set
2 Feeding&leveling device 1 set
3 Gear box drive system 1 set
4 Main forming machine 1 set

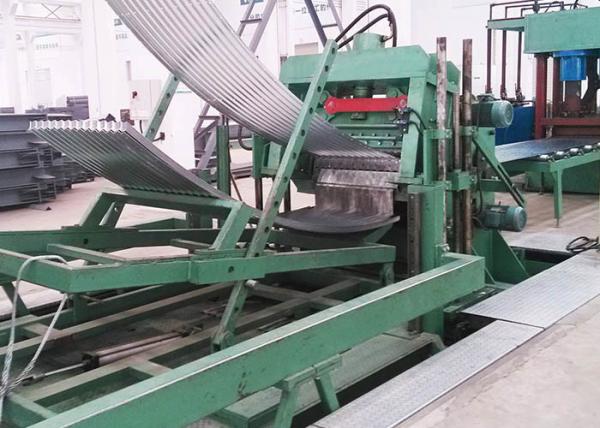

5 Curving device 1 set

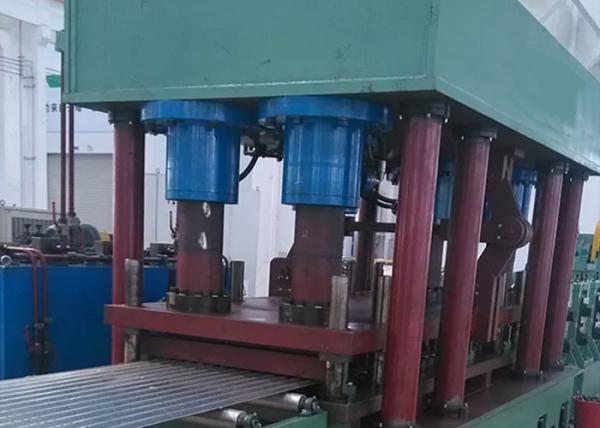

6 Hydraulic Cutting device 1 set
7 Auto stacker 6 meters 1 set
8 PLC control system 1 set
9 Hydraulic station 1 set

Technological process:

Passive de-coiler ----- leveling and feeding ----- continuous hole punching ----- roll forming (without welding)----- positioning and cutting----- collection table

Galvanized Sheet Steel Silo Roll Forming Machine PI PPGI Material Industrial

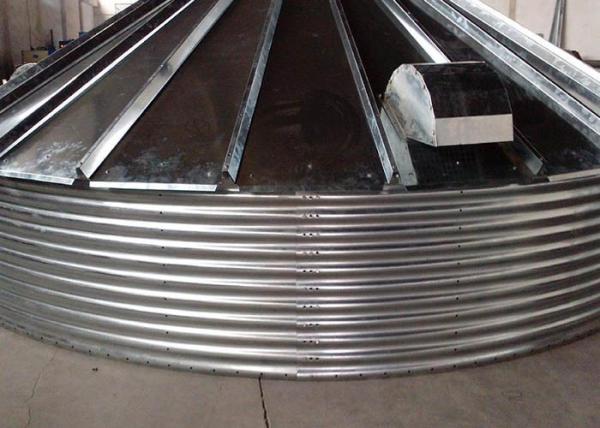

Application:

Galvanized Sheet Steel Silo Roll Forming Machine PI PPGI Material Industrial

Packaging & Shipping

1 . Before loading to the container, we will check the machine first

2 .make some protection on the machine, such as, we will paint the coil on the roller and shaft, in case the roller and shaft got corrosion and rusty during long time delivery

3 .we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not

4 .we will take photos for customer when loading to container.

Main product :

Roof roll forming machine

C and Z purlin roll forming machine

Downpipe roll forming machine

Hydraulic decoiler

Light keel roll forming machine6

Bending machine

Shearing machine

slitting machine

Roller shutter door roll forming machine

Features:

1 . The equipment control is PLC control, and multiple safety protection is set during normal production.
2 . The bed is welded with steel plates. It is also tempered to eliminate internal stress and avoid deformation of the fuselage.
3 . The forming frame is cast iron structure and tempered. High strength and long service life.
4 . The material of the roll shaft is 40Cr, and the hardness is HB280 after quenching and tempering treatment.
5 . The material of the forming mold is GCr15, quenching treatment, hardness: HRC 56-62 °C.
6 . The transmission structure is gearbox transmission. Each molding frame has a gearbox that guarantees time-out, high-intensity operation, and long service life.
