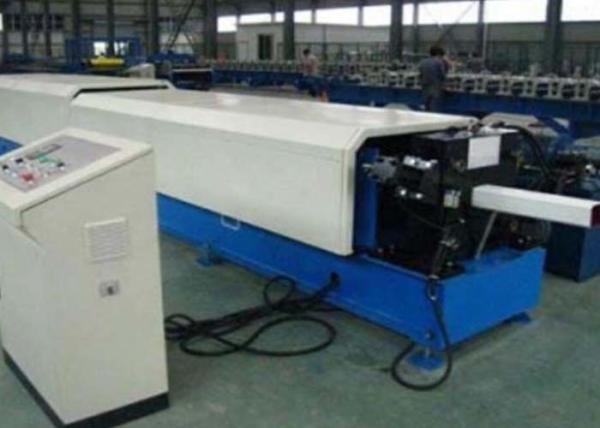

15 Stations Downpipe Roll Forming Machine / Steel Square Pipe Making Machine
15 Stations Downpipe Roll Forming Machine / Steel Square Pipe Making Machine
15 Stations Downpipe Roll Forming Machine / Steel Square Pipe Making Machine
15 Stations Downpipe Roll Forming Machine / Steel Square Pipe Making Machine
15 Stations Downpipe Roll Forming Machine / Steel Square Pipe Making Machine
15 Stations Downpipe Roll Forming Machine / Steel Square Pipe Making Machine
15 Stations Downpipe Roll Forming Machine / Steel Square Pipe Making Machine
15 Stations Downpipe Roll Forming Machine / Steel Square Pipe Making Machine
Specifications
Place of Origin :
China
Brand Name :
YBT
Certification :
CE ISO SGS
Model Number :
YB952605
MOQ :
1 Set
Price :
Negotiation
Packaging Details :
Standard export packing with each machine tied and protected in container
Delivery Time :
45-60 days
Payment Terms :
T/T
Supply Ability :
10set
Name :
down pipe machine
Width of the plate :
330mm
Rollers :
15 stations
Thickness of the plate :
0.3-0.6mm
Speed :
8-10m/min
Control system :
PLC
Description

Durable Automatic Metal Steel Down Pipe Roll Forming Machine With PLC Control

steel strip supporting frame

Feeding platform

Automatic shearing system

Hydraulic system Steel strip unfolding system

Computer control system (imported computer)

High-precision automatic counter

Receiving table

Suitable process material: colored steel sheet, aluminium steel sheet, and galvanized steel shee

Technical data of downpipe roll forming machine

Suitable material color steel sheet;0.7-1.0mm,1.5mm, 2mm
Working speed about8-25m/min
stress 235MPa,345MPa,550MPa.
Power Main motor power: 12 Kw(Depend on final design)
Hydraulic station power: 3Kw(Depend on final design)
Material of forming rollers No.45 steel, plated with chrome on surface.
Material of cutter,pressing die Cr12 mould steel with quench treatment, HRC58-60
Material of shaft High quality 45# steel, Roller grinder milling.
Shaft diameter 72mm
Controlling system Mitsubishi PLC & converter
Total weight of machine About 9500KGS
Machine’s size about 18m×1.8m× 1.5m (Depend on final design)

Layout drawing of machine

15 Stations Downpipe Roll Forming Machine / Steel Square Pipe Making Machine

Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .to protect surface shiniing and strong

2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.and hardness 60 degree.

3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

4. High precision: shafts for rollers are tooled by grinding machine. Rollers are CNC processed to ensure precision performance.

5 .automatic PLC : introduced Mitsubishi PLC with touch screen ,inverter,transformer.

6. powerful driving system: big inch train,or gear box driving system.

6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifttime services for our machines.

15 Stations Downpipe Roll Forming Machine / Steel Square Pipe Making Machine

1). Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We

need your machines running in order to keep your business running.

2). Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and improve our machines accordingly

3). Q: How does your factory do regarding quality control?

A: Quality is priority. WILLING People always attach great importance to quality control from the very

beginning to the end of the production. Every product will be fully assembled and carefully tested before

it's packed for shipment.

4). Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name

components.

5). Q: Will you deliver the right goods as ordered? How can I trust you?

A: Yes, we will. The core of our company culture is honesty and credit. If you check with WILLING, you will see that we have never got any complaint from our customers.
