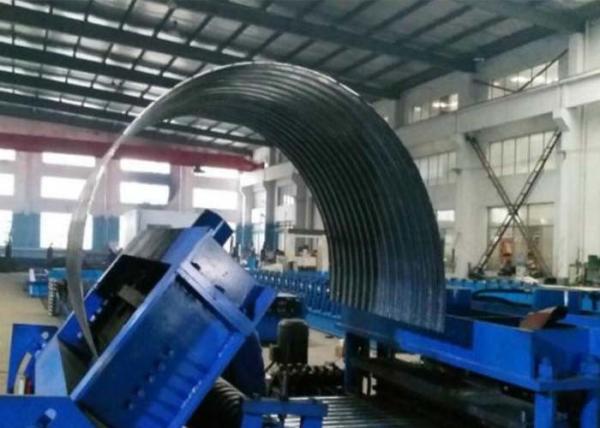

Automatic Steel Silo Roll Forming Machine , Working Speed 0-15m/min Adjustable

Features

1. This machine is designed to process steel coil into corrugated sheet with desired specification in one step, and this is available even for thicker steel.

2. Our product makes use of roll forming technology to fabricate the corrugations one after another, resulting in released internal stress, reduced spring back effect as well as improved product quality.

3. This corrugated sheet roll form machine is most popular one among similar products on the market, and it can be tailored to best fit every customer's needs if relevant drawings are supplied. Meanwhile, the production process, including two options, is up to the customer.

4. Form the straight sheet with corrugation first, and then punch holes and curve the sheet outside the production line.

5. Shape forming, punching, curving and shearing operations are finished on the same production line automatically. There would be no straight edges on the sheet, thus the assembly is easy and the productivity is enhanced.

Machine Component

This corrugated sheet roll forming machine consists of several parts, as listed below.
1. 10T hydraulic decoiler
2. Straightening machine
3. Shape forming machine
4. Punching machine

5. Curving machine
6. Hydraulic shear
7. Hydraulic station
8. PLC control cabinet
9. Stacker

Specifications

Applicable material Galvanized sheet
Feeding width 1250mm
Processing thickness 1-5mm
Roller material Ball bearing steel goes through heat treatment and surface finish process.
Main motor power / hydraulic station power 90kW / 75kW
Forming passes 18
Forming speed 1-2 pieces/minute
Machine dimensions 32×8×2.5m
Machine weight 110T

Component

De coiler

Material width adjusting and guiding equipment

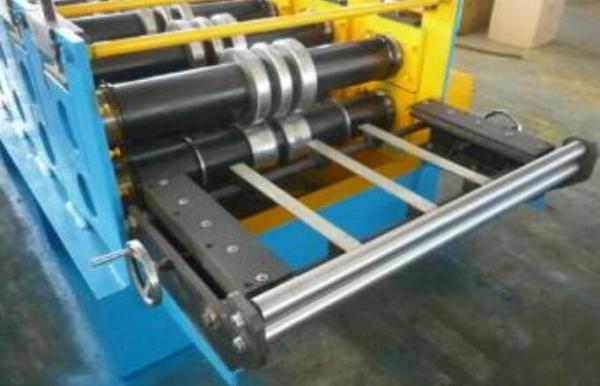

Roll former

Curving equipment

Cutting machine

Hydraulic control system

Technical process

Decoiling →Guiding→Cutting→Roll forming→Curving equipment

Technical process
