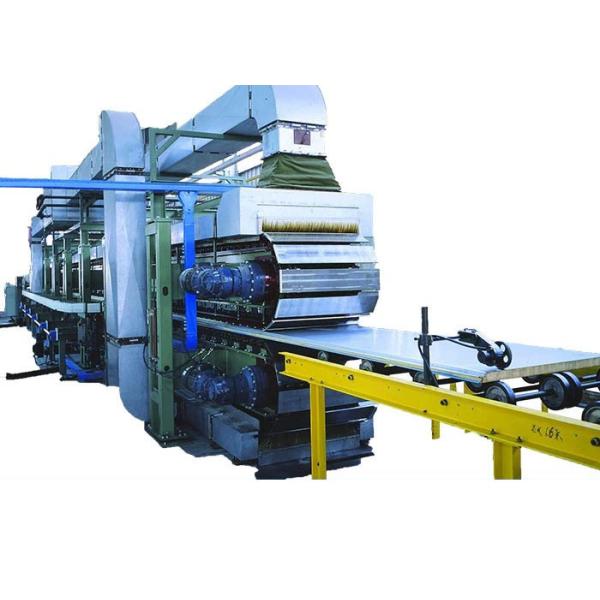

PLC Control Rock Wool Production Line / PU Formed Sectional Sandwich Panel Line
PLC Control Rock Wool Production Line / PU Formed Sectional Sandwich Panel Line
PLC Control Rock Wool Production Line / PU Formed Sectional Sandwich Panel Line
PLC Control Rock Wool Production Line / PU Formed Sectional Sandwich Panel Line
PLC Control Rock Wool Production Line / PU Formed Sectional Sandwich Panel Line
PLC Control Rock Wool Production Line / PU Formed Sectional Sandwich Panel Line
PLC Control Rock Wool Production Line / PU Formed Sectional Sandwich Panel Line
PLC Control Rock Wool Production Line / PU Formed Sectional Sandwich Panel Line
Specifications
Brand Name :
YBT
Model Number :
YT983408
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
60-90 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
PU Sandwich
Voltage :
As Your Requirment or 380v, 60Hz, 3 phase or
Advantage :
Use Widely
Warranty :
1 Year
Sheet Thickness :
0.3-0.7mm
Control system :
PLC
Material :
Steel, metal panel sandwich line production
Description

PLC Control System PU Formed Sectional Sandwich Panel Production Line

The PU Sandwich Panel Production Line mainly consists of the two sets of Uncoiler, Steel Panel Transverse Cutting Machine, Steel Panel Surface PVC Film covering device, Roll forming machine (3 sets) and Platform (up and down), Pre-heating room, PU injecting section for foaming, Panel automatically cutting system and Cooling system conveyer, Automatic stacking machine;

The facing material of this panel can be PPGI, Aluminum foil, PVC sheets, etc and the core materials can be Polyurethane, Mineral Wool, Glass Wool, PIR, Phenolic or EPS.

Panel shape can be tailor-made according to customer's detailed requirements.

1 . Technical Parameter

Panel Material : 1. Type :Pre-painted steel; Aluminum; Platinum

2.Thickness :0.5-15 mm

3. Coil width :≤1250mm

4. Coil ID :508mm

5. Coil Weight : 5ton.7.5ton

Model Rock Wool sandwich panel
Length Customized
Brand FAMOUS
Effective width

Wall Panel: 950mm 1150mm

Roof Panel: 960mm 1050mm
Thickness Color steel sheet: 0.3-1.2mm
Rock wool : 50mm, 75mm, 100mm, 150mm, 200mm
Materials Rock wool core material, Color steel sheet
The Rock Wool density 80-150kg/m3
Structure Upper and lower layer: Color steel sheet
Steel sheet color Ivory white, off white , sea blue, sky blue, lotus green, Grey brick, marble and wooden grain, bright red, etc...
Lifetime 15~20 years
Character Light in weight, heat & sound insulation, fire proof, green and environmental protection
Application Gymnasium, warehouse, hospital, supermarket, shelter, commercial and industrial facilities

2 . Main Component of line

Main roll former
1 . Un-coiler (5 tons ) 2 sets
2 . Embossing and firm machine 2 sets
3 . Automatic feeder and leveler (N.C) 1 sets
4 . Press machine 1 sets
5 . Square mould : 1 sets
6 . Upper roll former : 1 sets

7 . Mark machine (N.C) :1 sets

8 . Down panel roll former : 2 sets

9 . Double layer construction platform :1sets

10 . Double bridge device and conveyor : 1sets
11 . Other conveyor :1sets
12 . Hydraulic system :1sets
13 . Electrical control system :1sets

Pre-Heating system

1 .Heating house :1sets
2 .Pre-heating system: 1sets
3 .Electrical control system: 1sets

High Pressure foam Machine

1 .High pressure continuous foam machine :1sets
2 .Pursing output device :1sets
3 .Electrical control system :1sets

Drawing of PU Sandwich

PLC Control Rock Wool Production Line / PU Formed Sectional Sandwich Panel Line


3 . Simple PU Formed Sectional Sandwich Panel Production Line

PLC Control Rock Wool Production Line / PU Formed Sectional Sandwich Panel Line

Training and Installation
1 . We offer installation service local in paid, reasonable charge.
2 .QT test is welcome and professional.
3 . manual and using guide is optional if no visiting and no installation.

Certification and after service
1 . Match the technology standard, ISO producing certification
2 . CE certification
3 . 12 months warranty since the delivery. Board.
