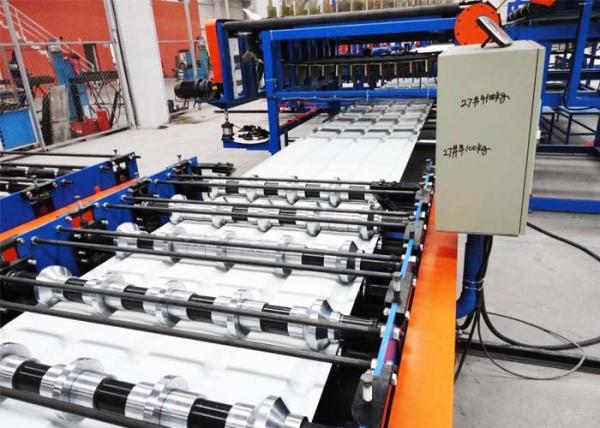

Sawing rock wool sandwich wall roof panel production line 3 - 8m / min

Rockwool color steel sandwich panels give full play to the unique properties of rock wool core materials and significantly affect fire, heat insulation, sound absorption and sound insulation.
(1) Good fireproof performance: The rock wool sandwich panel of raw materials, production process and formula has good fireproof performance.
(2) Good thermal insulation: The thermal insulation performance of rock wool sandwich panels is based on the thermal conductivity of rock wool = 0.043 w / m2K, and the corresponding thickness ratio of rock wool core material is calculated.
(3) The sound absorption and heat insulation effect is remarkable:
Sound insulation: Asbestos sandwich panels have a significant reduction in noise transmission and are especially suitable for designated flights. In addition, after the use of rock wool roofing panels, rainwater and hail caused roofing steel panels that affected the building, causing the sound to be greatly weakened in the room.
Sound Absorption: Rockwool sandwich panels also have a good suction effect that absorbs sound over a wide frequency range.

Machine parameters:

Product Feature

Good Extensibility:Dying,stacking,and packaging device unit can be added.The line is suitable for automatic production of double-sided color plate sandwich panel,color plate and soft surface layer sandwich,all kinds of sandwich panel;

Technical advantages: The whole production line is designed as per European technical date,cost reduced technical transformation,which has high stiffness,strength,accuracy,and stability;

The whole set of electrical control adopts world’s leading system,which has reliable operation and low failure rate,finished products have high flatness,homogeneous core material density;

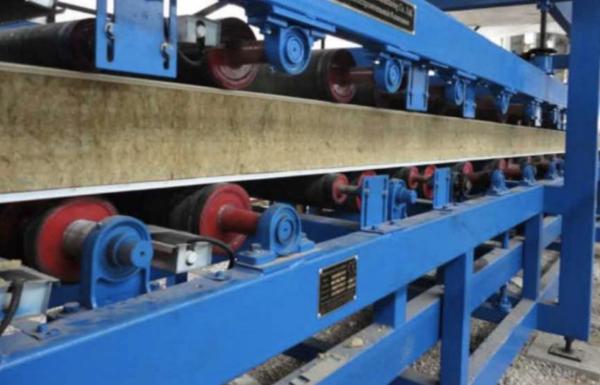

The capacity of the continuous line is 3-8m/min, the total power is 300KW, length of the production line is 100m, the valid length of double belt conveyor is 24m, the size of the finished panel is 3-18m long, 900-1200mm wide, 20-150mm thick as the image down below:

Welcome to send us your profile drawing
