Specifications
Brand Name :
YBT
Model Number :
YT376506
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Cable Tray Roll Forming Machine
Material :
steel
Thickness :
1-2mm
Working speed :
3-8m/min
total power :
77.2kw
Warranty :
1 year
Description

1 - 2 mm Stainless Galvanized Steel Cable Tray Rack Roll Forming Machine

Description:
Our cable tray forming machine has many advantages of stablity, efficiency, material saving, low noise. And our machines work within high speed which improves its productivity greatly. Besides, Its products have high quality and fashionable styles. It is widely used in stores, warehouses, buildings, welcomed by customers throughout the world. The machines can be designed to produce different shapes and sizes according to customer's requirements.

Technological process:

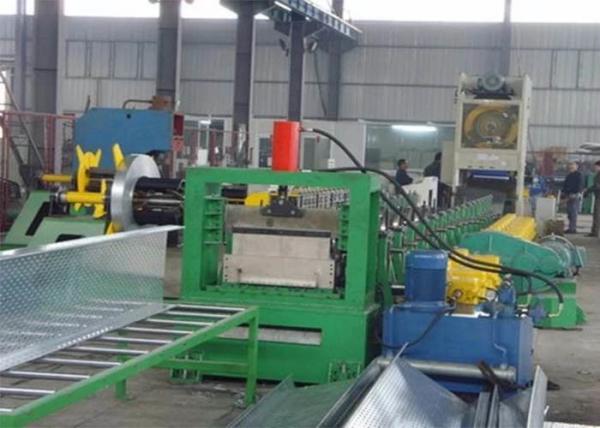

Auto-de-coiler-----leveling----servo feeding----hole punching----roll forming --re-coiler

Main Technical Parameters:

NO.
Name
Quant.
Remark
1
Auto-de-coiler
1
2
Leveling machine
1
5.5kw frequency change drive motor, speed adjustable
3
Support frame
3
Roller type
4
NC900servo feeder
1
NC900 Servo motor drive
5

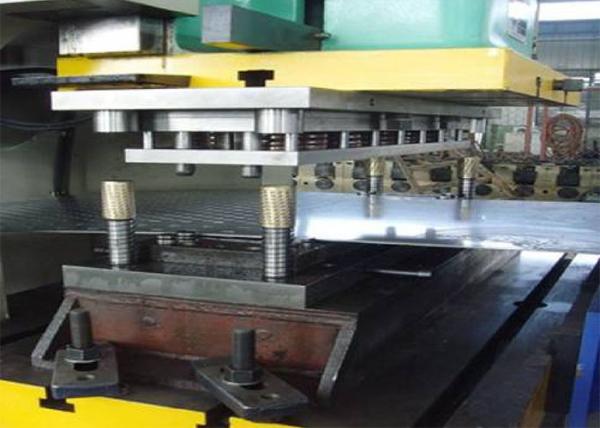

Punching press
1
120ton
6
punching mould
9
7
Main forming machine
1
100-900mm,thickness 1-3mm,material of roller:GCr 15
8
Hydraulic cutting machine
1
9
Cutting blade
9
10
Run-out table
1
11
Electric panel
1
PLC control system

Steel Cable Tray Storage Rack Roll Forming Machine 77.2kw Total Power
Detailed information:

The production line can produce many types of cable rack and other machinery products according to producing requirement.(steel coil width 225mm≤§≤1020mm)

Raw material request: Q235 cool steel.

Thickness: 1-2mm.

Line speed during hole punching: 3-8m/min

Total power: about 77.2kw
If you have your own special requirements,our machine can be also customized.
profile as following:



Steel Cable Tray Storage Rack Roll Forming Machine 77.2kw Total Power

Finished products:

Steel Cable Tray Storage Rack Roll Forming Machine 77.2kw Total Power
