Specifications
Brand Name :
YBT
Model Number :
YT376506
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Cable Tray Roll Forming Machine
Material :
steel
Thickness :
0.6-2.0mm
Feeding width :
200-1050mm
Roller material :
#45 forged steel with hard chrome treatment
Warranty :
1 year
Description

High precision Cable Tray Roll Forming Machine Galvanzied Stainless Steel

Description:
Our cable tray forming machine has many advantages of stablity, efficiency, material saving, low noise. And our machines work within high speed which improves its productivity greatly. Besides, Its products have high quality and fashionable styles. It is widely used in stores, warehouses, buildings, welcomed by customers throughout the world. The machines can be designed to produce different shapes and sizes according to customer's requirements.

Main Technical Parameters:

Material Galvanzied steel; Stainless steel; Aluminium sheet and coil
Cable tray type Trough type, cable ladder, trays type
Cable tray size 100-600mm for width; 50-200mm for height
Thickness 0.6-2.0mm
Feeding width 200-1050mm
Strength Q235Mpa
Speed 0-10m/min
Processing precisions +/-0.5mm
Size changing way full automatic
Power 4*4kw+7.5kw+9kw
Roller material #45 forged steel with hard chrome treatment
Cut blade material Cr12 with quenching treatment
Dimension 20000*2500*1500mm (L*W*H)
Total weight about 30tons

Working process:
Feeding → Hydraulic punching → Guiding → Roll forming → Hydraulic cutting → Carrier out of product

Detailed information:

Corrugated Sheet Cable Tray Roll Forming Machine Galvanzied Stainless Steel

Decoiler:

. Capacity: 3T, 5T, 10T

. Manual / Hydraulic decoiler, loading car is optional

Corrugated Sheet Cable Tray Roll Forming Machine Galvanzied Stainless Steel

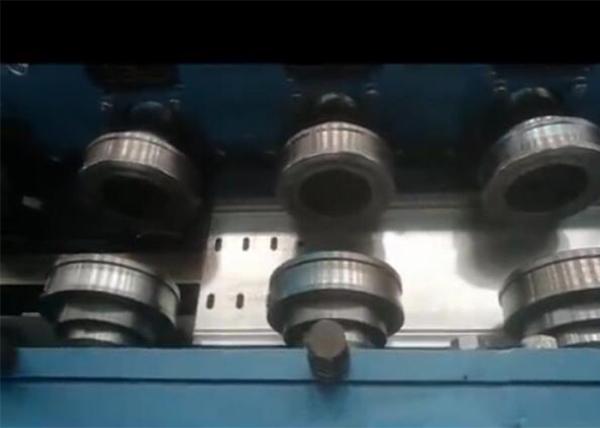

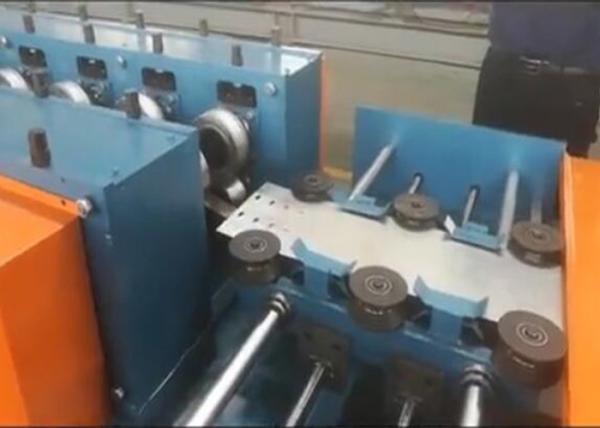

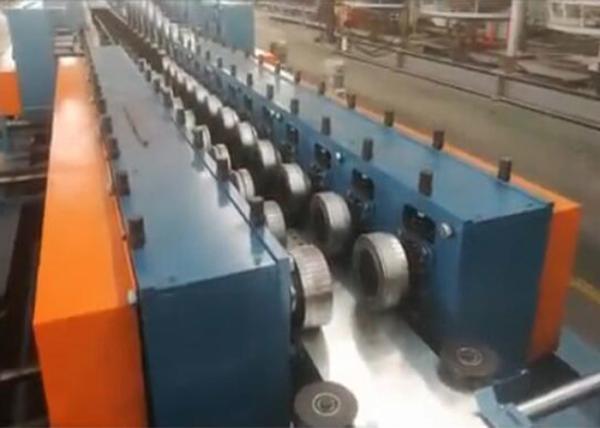

The perforated cable tray roll forming machine is a duplex and high performance production line for manufacture C section profile with allotted holes for supporting electric wiring in commercial and industrial construction. Usually it made from middle gauge steel thickness from 0.6-2.0mm.

The perforated cable tray roll forming machine successfully integrated hydraulic punching device or high speed press machine for radiation holes on cable tray. Also the telescope shaft is available to rapid size changeover without toll change. Pre-cutting device equipped for cut off finished products.

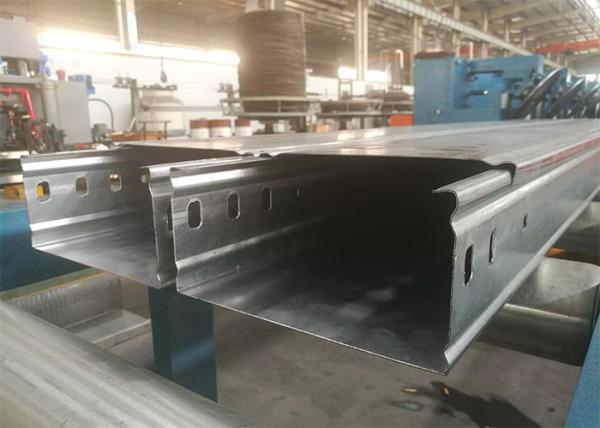

Products are as follow:

Corrugated Sheet Cable Tray Roll Forming Machine Galvanzied Stainless Steel

After-sale service:
1 . Installation and training of roof forming machine:
a . If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b . Without visiting, we will send you user manual and video to teach you to install and operate.

c . If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2 . After Service of roof forming machine:
a . One year guarantee for whole roof forming machine.
b . 24 hours technical support by email or calling
c . If there is any problem found of the roof forming machine, we will repair it for free in one year.
