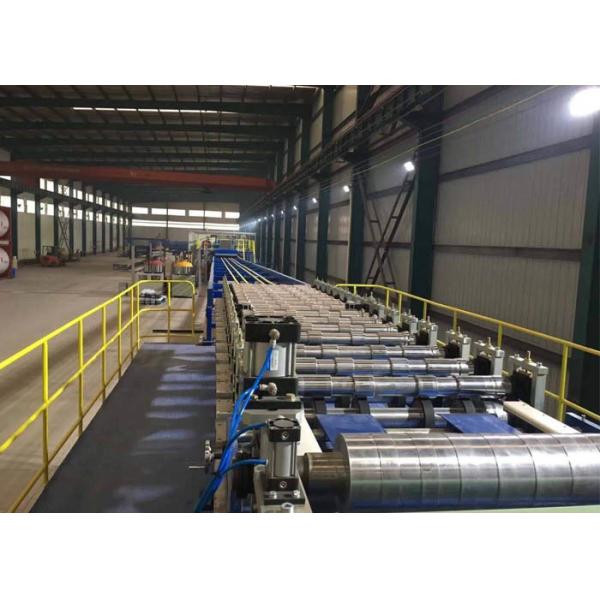

Insulation Board Wall Roof Panel Roll Forming Machine 3 - 8m Every Minute SGS
Insulation Board Wall Roof Panel Roll Forming Machine 3 - 8m Every Minute SGS
Insulation Board Wall Roof Panel Roll Forming Machine 3 - 8m Every Minute SGS
Insulation Board Wall Roof Panel Roll Forming Machine 3 - 8m Every Minute SGS
Insulation Board Wall Roof Panel Roll Forming Machine 3 - 8m Every Minute SGS
Insulation Board Wall Roof Panel Roll Forming Machine 3 - 8m Every Minute SGS
Insulation Board Wall Roof Panel Roll Forming Machine 3 - 8m Every Minute SGS
Insulation Board Wall Roof Panel Roll Forming Machine 3 - 8m Every Minute SGS
Specifications
Brand Name :
YBT
Model Number :
YT983408
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
60-90 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
PU sandwich panel
Material :
PU
Finished panel width :
900-1200mm
Finished panel thickness :
20-150mm
Working speed :
3-8m/min
Warranty :
1 year
Description

20 - 150mm PU sandwich wall roof panel production line 3 - 8m / min

Our machine has high grade quality and reasonable price. The PU sandwich panel production lines are well known in various countries (especially Russia, middle east, China ) of the world, and we hope that they will be meeting the same favor in your esteemed country. And our company can customize special type,the quality can be guaranteed because we provide free after-sale service.

Insulation Board Wall Roof Panel Roll Forming Machine 3 - 8m Every Minute SGS

Machine parameters:

No.

Name

 Specifications
1.

Color steel sandwich panel width

 700-1000mm
2.

Thickness

 20 to 150 mm
3.

Production line speed

 3~8 m/min
4.

length of the production line

 100m
5. The maximum temperature of the hot air circulation 70℃
6.

Total power

 300kw
7.

Double belt laminated conveyor length

 24m
8.

The total installed power capacity

 About 207 kw
9.

Line dimensions(L × W × H)

 About 86000×7000×3800mm

The capacity of the continuous line is 3-8m/min, the total power is 300KW, length of the production line is 100m, the valid length of double belt conveyor is 24m, the size of the finished panel is 3-18m long, 900-1200mm wide, 20-150mm thick as the image down below:

Welcome to send us your profile drawing

Insulation Board Wall Roof Panel Roll Forming Machine 3 - 8m Every Minute SGS

Details abt the PU sandwich panel production line:

1.Panel from the continuous sandwich panel production line is a composite structure consisting of two external facings and an insulating core. The core can be flexible with Polyurethane, Mineral Wool, Glass Wool, PIR, Phenolic or EPS. Various profiles are available according to customer's requirement with pre-painted steel sheets, PVC sheets, Aluminum paper or other similar supports;
2.The continuous sandwich panel production line has a large scale production capacity. It allows a uniform distribution of the reactive mixture, a homogeneous density, suitable physical and mechanical characteristics;
3.Roof panels, wall panels and door panels are made mainly of metal section support and polyurethane insulating mass;

Insulation Board Wall Roof Panel Roll Forming Machine 3 - 8m Every Minute SGS

FAQ:
1. Does one machine can only produce one size?

Not exactly, it depends on which profile the customer want to produce.

2. Do you have after-sales technical support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine overseas to customers’ workshop if needed.

3. You are trading company or factory?
We are Manufacturer, and we export our machine by ourselves.

4. How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we can make it for you less than a month.

5. Do you provide customized?
Sure, we can design the machine according to the requirement and profile drawing you provide. Our engineers can offer the best professional solution to our worldwide clients.

6. May we visit your factory?
Sure,Warmly welcome to our factory at any time.

7. How to visit your factory?
By high speed train from Shanghai to East Wuxi (Wuxi Dong station), half an hour.

8. What's the warranty period?

12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the Buyer’s Installation site.

9. Can you arrange shipment?

Yes, sure, we can arrange shipment for our customers and provide door-to-door service.
