S6（ARINC600） SERIES CONNECTOR,S6GM2TSY0112-G.
S6（ARINC600） SERIES CONNECTOR,S6GM2TSY0112-G.
S6（ARINC600） SERIES CONNECTOR,S6GM2TSY0112-G.
S6（ARINC600） SERIES CONNECTOR,S6GM2TSY0112-G.
S6（ARINC600） SERIES CONNECTOR,S6GM2TSY0112-G.
S6（ARINC600） SERIES CONNECTOR,S6GM2TSY0112-G.
S6（ARINC600） SERIES CONNECTOR,S6GM2TSY0112-G.
S6（ARINC600） SERIES CONNECTOR,S6GM2TSY0112-G.
Specifications
Brand Name :
HIGH WOOD
Model Number :
S6GM2TSY0112-G
Certification :
AS9001
Place of Origin :
China
MOQ :
100pcs
Price :
10$-150$
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100，000pcs per month
Delivery Time :
2-9weeks
Packaging Details :
Standard export package
Shock :
11ms half sine wave acceleration 50G
Insulation resistance :
> 5000M (500V DC)
Temperature :
-65℃~+150℃
Endurance :
500 cycles
Insertion loss :
≤0.5dB
Salt spray :
Class F: 96h W: 500h M: 192h (acidic atmosphere)
Description

S6GM2TSY0112-G

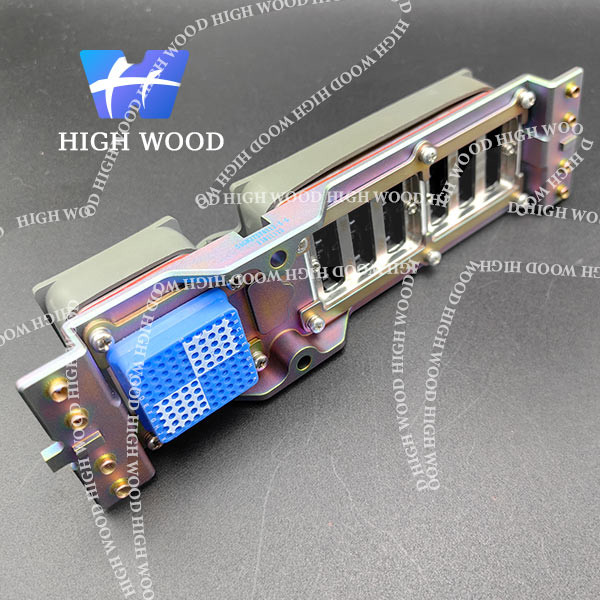

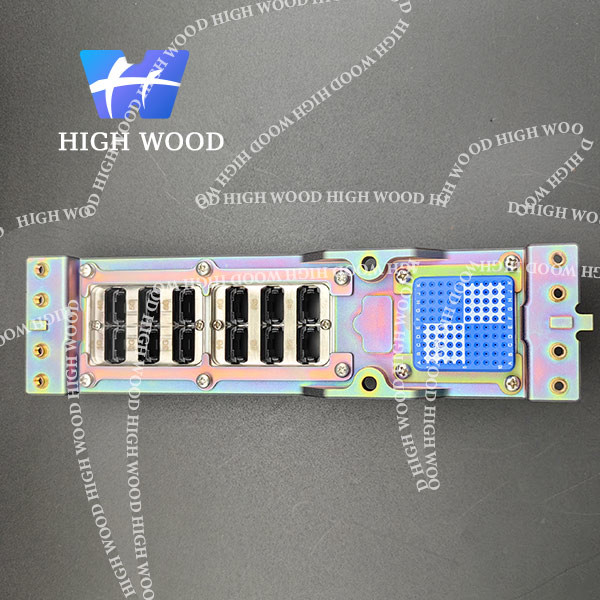

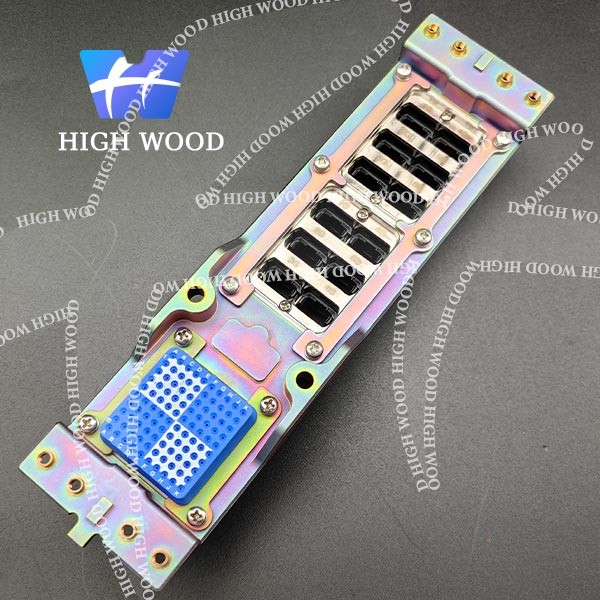

  • Compliant with ARINC600 standard
    Error-proof using hexagonal encoding with 99 error-proof keys
    Different materials and coatings can be selected for the housing to suit different environmental requirements
    Mix common low frequency, power supply, high frequency, high speed differential and light contact parts for
    integrated signal transmission
    Modular structure design allows users to choose different combinations of modules according to their usage
    requirements
    Standard 8#RF contacts use frequency 0~500MHz, floating 8#RF contacts use frequency 0~18GHz

How to order:

S6（ARINC600） SERIES CONNECTOR,S6GM2TSY0112-G.

Product pictures:

S6（ARINC600） SERIES CONNECTOR,S6GM2TSY0112-G.S6（ARINC600） SERIES CONNECTOR,S6GM2TSY0112-G.S6（ARINC600） SERIES CONNECTOR,S6GM2TSY0112-G.S6（ARINC600） SERIES CONNECTOR,S6GM2TSY0112-G.S6（ARINC600） SERIES CONNECTOR,S6GM2TSY0112-G.

Rated current, contact resistance, voltage resistance of low frequency contacts

Contact

Specification

Cable

specification (AWG)

 Rated current A

Contact

Resistance max

mΩ

 Withstanding Voltage (V)
Sea level 15000m 30480m

22D

26

24

22

2

3

5

11

1300

500

——

20#

24

22

20

3

5

7.5

8.5

1500

500

——

16#

20

18

16

7.5

10

13

5

1500

——

500
12#

14

12

17

23

 2.5 1500 —— 500
10# 10 40 1.2 1500 —— 500
8# 8 53 0.7 1500 —— 500
4# 6 80 0.35 1500 —— 500

Specification:

Machine life: 500 plugging cycles

. Shock: 11ms half sine wave acceleration 50G

. Vibration: Functional vibration: 15-2000 Hz, power spectral density 0.126G2/Hz, duration 6 h

Durable vibration: 15-2000Hz, power spectral density 0.201G2/Hz, duration 7.5h

. Temperature range: -65℃~+150℃

. Salt fog: Class F: 96h W: 500h M: 192h (acidic atmosphere)

. Liquid resistant: oil resistant to multiple fuels, coolants, etc.

. Insulation resistance: > 5000M (500V DC)

High Speed Differential Signal:

Transfer Rate 1.65Gbps Near-end Crosstalk ≥30dB
Characteristic Impedance 100Ω Insertion Loss ≤0.5dB(250MHz)

CAN bus signal and ARINNC429 signal:
Transfer Rate 1Mbps
Characteristic Impedance 120Ω
Rated Voltage 50V

Electromagnetic Shielding Interference(dB/min)

 800MHz～1000MHz 50dB
300MHz～400MHz 51dB
200MHz 53dB
100MHz 55dB
