J599A8/26KD06N series optical fiber connector
J599A8/26KD06N series optical fiber connector
J599A8/26KD06N series optical fiber connector
J599A8/26KD06N series optical fiber connector
J599A8/26KD06N series optical fiber connector
J599A8/26KD06N series optical fiber connector
J599A8/26KD06N series optical fiber connector
J599A8/26KD06N series optical fiber connector
Specifications
Brand Name :
HIGH WOOD
Model Number :
26KD06N
Certification :
AS9001
Place of Origin :
China
MOQ :
100pcs
Price :
10$-150$
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100，000pcs per month
Delivery Time :
2-9weeks
Packaging Details :
Standard export package
Tensile strength :
≥68N (φ2mm cable)
Insertion loss :
≤0.5dB
Temperature :
-55℃～+125℃
Endurance :
500 cycles
Return loss :
≥20dB（850nm）
Salt spray :
Class K: 500h Class F: 48h Class W: 500h; Class MW: 192h (acidic atmosphere)
Description

J599A8/26KD06N

The interface size conforms to GJB599B(MIL-DTL-38999)Ⅲ series, and the performance conforms to ARINC801 standard
Suitable for aeronautical, electronic, shipboard and other systems for multi-channel optical communication
Adopts standard 1.25mm ceramic pin for high docking accuracy
Ceramic casing package array, can be disassembled and replaced as a whole, easy to use and maintain
Install and remove tool M81969/14-03 for contact parts, easy to operate

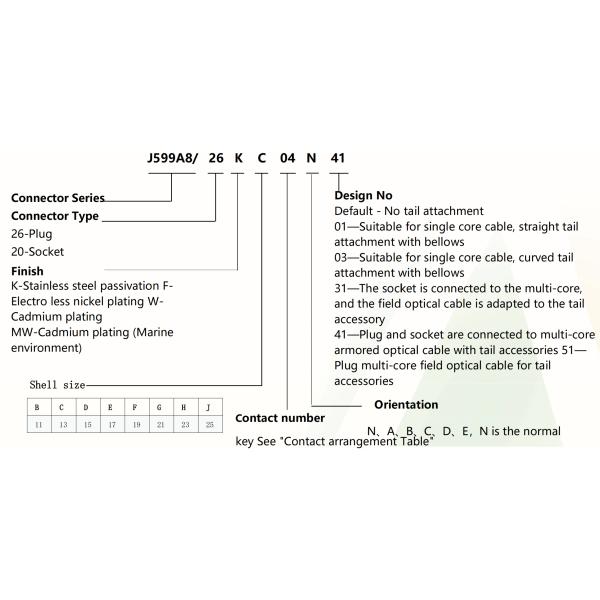

How to order:

J599A8/26KD06N series optical fiber connector

Product pictures:

J599A8/26KD06N series optical fiber connectorJ599A8/26KD06N series optical fiber connectorJ599A8/26KD06N series optical fiber connectorJ599A8/26KD06N series optical fiber connector

Environmental:

Temperature :

-55℃ ~ +125℃

Salt spray:

ClassK,W:500h

ClassF:48h

Class MW: 192h (acidic atmosphere)
Air tightness (suitable for airtight switching socket): gas leakage rate ≤1×10-9Pa.m3/s, internal
and external pressure difference of 1 atmosphere

Mechanical:

Tensile force:: ≥68N (2mm contact jumper)
Endurance: 500 cycles
Vibration:

10Hz ~ 2000Hz, powerspectral density 0.4G²/Hz, acceleration
root mean square value 23.1G
Impact: Peak acceleration 2940m/s²,duration 3ms,Velocity change rate5.61m/s

Optical performance​:

Insertion loss: ≤0.6dB
RL (return loss): ≥ 20dB@850nm；
≥ 40dB@1310nm

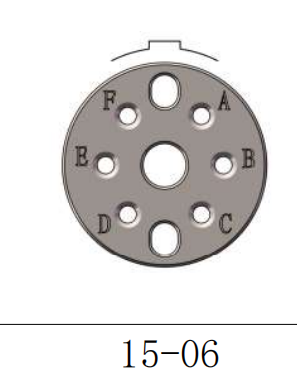

Contact arrangement (take plug surface as an example):

J599A8/26KD06N series optical fiber connector
