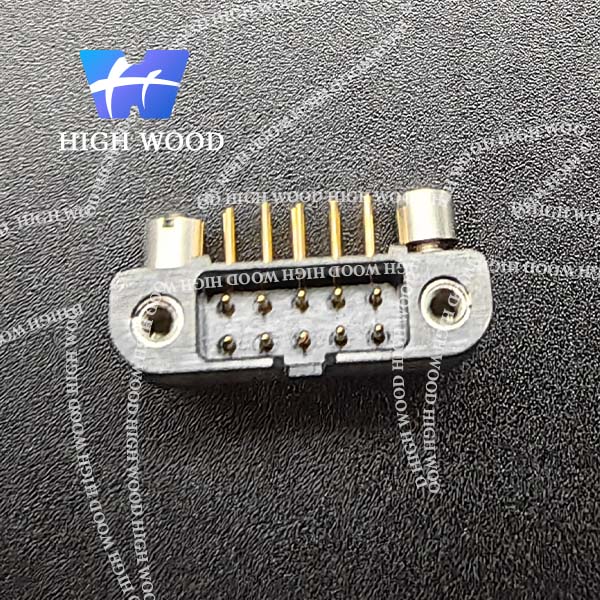

HW-CMM Connector, HW-221V10F23,2mm Pitch.
HW-CMM Connector, HW-221V10F23,2mm Pitch.
HW-CMM Connector, HW-221V10F23,2mm Pitch.
HW-CMM Connector, HW-221V10F23,2mm Pitch.
HW-CMM Connector, HW-221V10F23,2mm Pitch.
HW-CMM Connector, HW-221V10F23,2mm Pitch.
HW-CMM Connector, HW-221V10F23,2mm Pitch.
HW-CMM Connector, HW-221V10F23,2mm Pitch.
Specifications
Brand Name :
HIGH WOOD
Model Number :
HW-221V10F23
Certification :
AS9001
Place of Origin :
China
MOQ :
100PCS
Price :
10＄--150＄
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100,000pcs per month
Delivery Time :
2--9 weeks
Packaging Details :
standard export package
MECHANICAL :
Mechanical operations:Up to 2500 cycles contact inssertion and withdrawal force:2 N max./0.2n min.oer ciontact Contact retention in insulator:10 n min Contact replacement in insulator:3 cycles
P.C.LF CONTACTS(Female): :
Body:copper alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ
INSULATOR: :
Special PPS UL 94-V0
CRIMP LF CONTACTS: :
Male: Body:copper alloy/Ni+Au>1µ Female: Body:copper alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ
P.C.LF CONTACTS(Male): :
Male:tail:copper alloy/Ni+Au flash 0,1µContact area:copper alloy/Ni+Au>1 µ
FIXING HARDARE: :
Jackscrew:Stainless steel Latch:Bertllium copper/plated nickel
Description

HW-221V10F23:

The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications.




Part numbering

HW-CMM Connector, HW-221V10F23,2mm Pitch.

nn=number of LF contacts

Type L
Y 3
YL 4.5

Calculation:

A=nn-2
B=A+7
C=A+12

Refer to dimension table on cover page


FIXING HARDWARE FOR CMM 220 FEMALE

F23

HW-CMM Connector, HW-221V10F23,2mm Pitch.

 HW-CMM Connector, HW-221V10F23,2mm Pitch.

F23:

CMM male :

V-VL-R-S-C-E

(D :90°)


MALE STRAIGHT ON CABLE P/N 30-33xx (solder or crimp)

Loaded Unloaded Ampere Cable A ØB ØC Length D hole Length E body Length F conductor Solder Crimp by HX3 Hexagone size/Dies Crimp by AF8
AWG 20 AWG 18 AWG 16 AWG 14 AWG 12
3305 30-3305 5A × 1,1mm

1,65
mm

 6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3308 30-3308 8A × 1,35mm

1,85
mm

 6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3310 30-3310 10A × × × 1,7mm 6,2mm 6,7mm 6mm OK OK
3315 30-3315 15A × 2mm 6,2mm 6,7mm 6mm OK OK
3320 30-3320 20A × 2,6mm 6,2mm 6,7mm 5,3mm OK OK

Loaded Unloaded Ampere Cable A ØB ØC Length D hole Length E body Length F conductor Solder Crimp by HX3 Hexagone size/Dies Crimp by AF8
AWG 20 AWG 18 AWG 16 AWG 14 AWG 12
3305 30-3305 5A × 1,1mm

1,65

mm

 6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3308 30-3308 8A × 1,35mm

1,85

mm

 6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3310 30-3310 10A × × × 1,7mm 6,2mm 6,7mm 6mm OK OK
3315 30-3315 15A × 2mm 6,2mm 6,7mm 6mm OK OK
3320 30-3320 20A × 2,6mm 6,2mm 6,7mm 5,3mm OK OK

CMM 220 SERIES in male & female styles for HF/HP contacts

CMM 220

Male & Female

Special

contacts only

 Special contacts number 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Distance between

axis

 A 4 8 12 16 20 24 28 32 36 40 44 48 52 56
B 13 17 21 25 29 33 37 41 45 49 53 57 61 65
Length in mm C 18 22 26 30 34 38 42 46 50 54 58 62 66 70

Product showing

HW-CMM Connector, HW-221V10F23,2mm Pitch.

HW-CMM Connector, HW-221V10F23,2mm Pitch.

HW-CMM Connector, HW-221V10F23,2mm Pitch.

HW-CMM Connector, HW-221V10F23,2mm Pitch.
