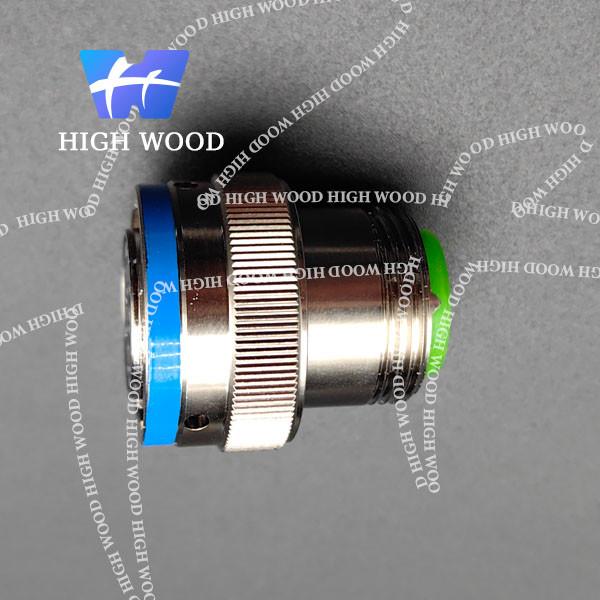

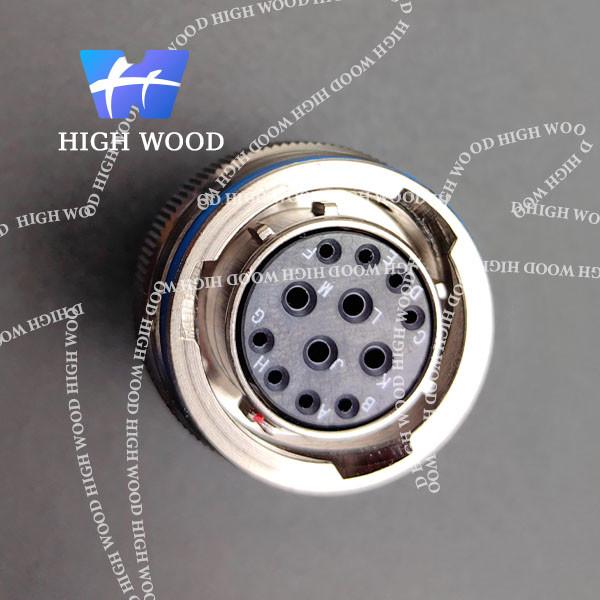

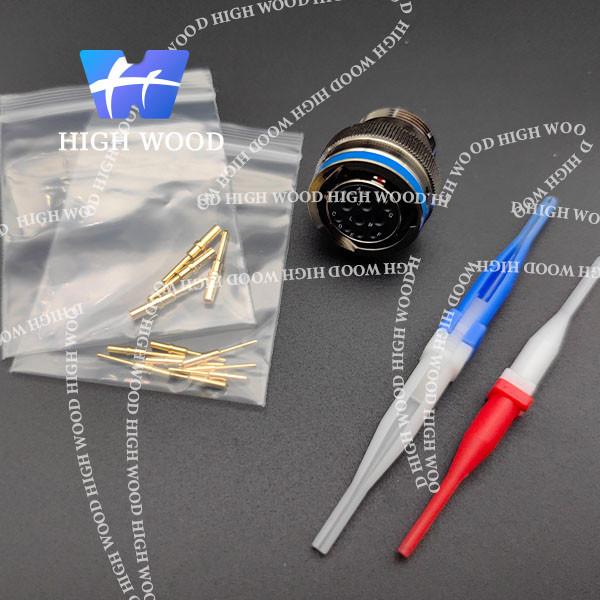

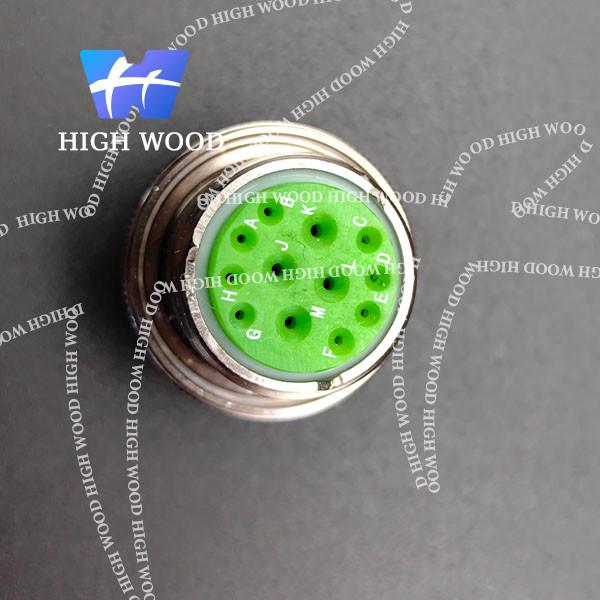

MS26482 Connector, MS3470L14-12SN, MIL-C-26482Ⅱ，MS26482 SeriesⅡ
MS26482 Connector, MS3470L14-12SN, MIL-C-26482Ⅱ，MS26482 SeriesⅡ
MS26482 Connector, MS3470L14-12SN, MIL-C-26482Ⅱ，MS26482 SeriesⅡ
MS26482 Connector, MS3470L14-12SN, MIL-C-26482Ⅱ，MS26482 SeriesⅡ
MS26482 Connector, MS3470L14-12SN, MIL-C-26482Ⅱ，MS26482 SeriesⅡ
MS26482 Connector, MS3470L14-12SN, MIL-C-26482Ⅱ，MS26482 SeriesⅡ
MS26482 Connector, MS3470L14-12SN, MIL-C-26482Ⅱ，MS26482 SeriesⅡ
MS26482 Connector, MS3470L14-12SN, MIL-C-26482Ⅱ，MS26482 SeriesⅡ
Specifications
Brand Name :
HIGH WOOD
Model Number :
MS3470L14-12SN
Certification :
AS9001
Place of Origin :
CHINA
MOQ :
100PCS
Price :
10＄-150＄
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100，000pcs per month
Delivery Time :
2-9weeks
Packaging Details :
standard expect package
Operating temperature range :
-55 ℃ ~ +200 ℃
Material :
Aluminium-alloy, copper-alloy or stainless steel
Anti-RFI :
At frequency 100 ~ 1000 MHz, leakage attenuation: 65~45dB.
Durability :
≥ 500 mating cycles
Shock :
Max acceleration 294 m/s2
Random vibration :
Frequency 10 Hz ~ 2000 Hz at 196 m/s2
Description
MS3470L14-12SN,MIL-C-26482Ⅱ,MS26482 seriesⅡ
MIL-C-26482 series II connector is the upgrade to MIL-C-26482 Series I. They are designed
as bayonet coupling, rear-removable crimp contact, medium contact density, mating hermetic
and RFI shielding.
This family of circular connectors is offered 3 kinds of material shell, 9 kinds of size shell,
4 kinds of finish, 2 plug styles, 4 receptacle-mounting styles, 3 kinds of contact and more
than 30 kinds of contact layout.
Widely used on commercial, military and aerospace systems, etc.
How to order.
MS3474W18 -06PN
Basic series

Type of shell
3470 = Narrow flange receptacle
3471 = Cable connecting receptacle
3472 = Wide flange receptacle
3474 = Jam nut receptacle
3475 = RFI shielding plug
3476 = Straight plug

Finish
A = Black anodized
L = Electroless nickel plating
W = Olive drab cadmium plating
S = Stainless steel passivated
B = Olive green cadmium plating

Shell size
08, 10, 12, 14, 16, 18, 20, 22, 24
Contact layout (see next page)

Contact
P = Pin
S = Socket
PL = PCB pin
SL = PCB socket

Orientation
N, W, X, Y, Z


Product showing.
MS26482 Connector, MS3470L14-12SN, MIL-C-26482Ⅱ，MS26482 SeriesⅡ
MS26482 Connector, MS3470L14-12SN, MIL-C-26482Ⅱ，MS26482 SeriesⅡ
MS26482 Connector, MS3470L14-12SN, MIL-C-26482Ⅱ，MS26482 SeriesⅡ
MS26482 Connector, MS3470L14-12SN, MIL-C-26482Ⅱ，MS26482 SeriesⅡ
MS26482 Connector, MS3470L14-12SN, MIL-C-26482Ⅱ，MS26482 SeriesⅡ

Shell size.
Shell NO.D1D2
0819.70.5000-20
1023.50.6250-24
1227.00.7500-20
1430.50.8750-20
1634.01.0000-20
1835.31.0625-18
2039.31.1875-18
2243.01.3125-18
2446.01.4375-18

Contact.

Contact NO.Diameter (mm)Cross section area of cable (mm²)Resistance (mΩ)Current (A)

20#

Φ 1.00

0.20

≤ 5

3.0
0.305.0
0.507.5

16#

Φ 1.59

0.50

≤ 3

7.5
0.8010.0
1.2513.0

12#

Φ 2.39

2.00

≤ 2

17.0
3.1523.0


Contact layout
