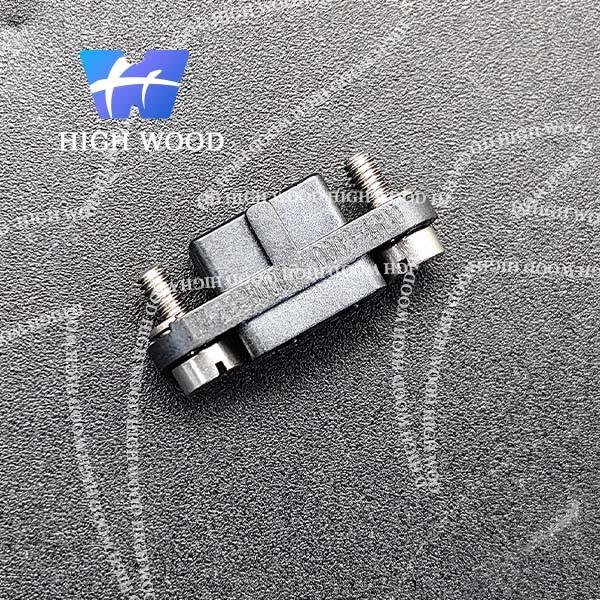

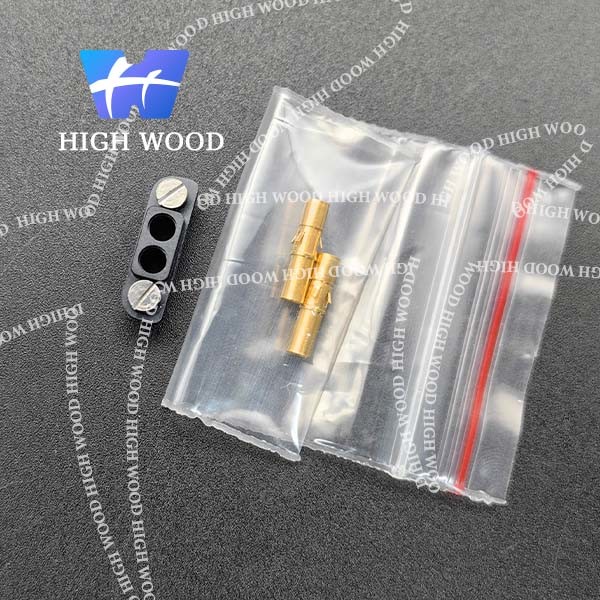

HW-CMM Connector, HW-222E00M11-0002-4320,MTL-55302F,2mm Pitch.
HW-CMM Connector, HW-222E00M11-0002-4320,MTL-55302F,2mm Pitch.
HW-CMM Connector, HW-222E00M11-0002-4320,MTL-55302F,2mm Pitch.
HW-CMM Connector, HW-222E00M11-0002-4320,MTL-55302F,2mm Pitch.
HW-CMM Connector, HW-222E00M11-0002-4320,MTL-55302F,2mm Pitch.
HW-CMM Connector, HW-222E00M11-0002-4320,MTL-55302F,2mm Pitch.
HW-CMM Connector, HW-222E00M11-0002-4320,MTL-55302F,2mm Pitch.
HW-CMM Connector, HW-222E00M11-0002-4320,MTL-55302F,2mm Pitch.
Specifications
Brand Name :
HIGH WOOD
Model Number :
HW-222E00M11-0002-4320
Certification :
AS9001
Place of Origin :
China
MOQ :
100PCS
Price :
10＄--150＄
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100,000pcs per month
Delivery Time :
2--9 weeks
Packaging Details :
standard export package
INSULATOR: :
Special PPS UL 94-V0
FIXING HARDARE: :
Jackscrew:Stainless steel Latch:Bertllium copper/plated nickel
CRIMP LF CONTACTS: :
Male: Body:copper alloy/Ni+Au>1µ Female: Body:copper alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ
P.C.LF CONTACTS(Male): :
Male:tail:copper alloy/Ni+Au flash 0,1µContact area:copper alloy/Ni+Au>1 µ
P.C.LF CONTACTS(Female): :
Body:copper alloy/Ni+Au 0,2 µ Socket:berylliumcopper/Ni+Au>1,25 µ
MECHANICAL :
Mechanical operations:Up to 2500 cycles contact inssertion and withdrawal force:2 N max./0.2n min.oer ciontact Contact retention in insulator:10 n min Contact replacement in insulator:3 cycles
Description

HW-222E00M11-0002-4320:
The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical,and telecom applications,NICOMATICs pecializes in the design,development and manufacture of electronic connectors.



FIXING HARDWARE FOR CMM 220 FEMALE

REFERENC ASSEMBLY ON PCB OVERALL DIMENSIONS RECOMMENDATION

M11

HW-CMM Connector, HW-222E00M11-0002-4320,MTL-55302F,2mm Pitch.

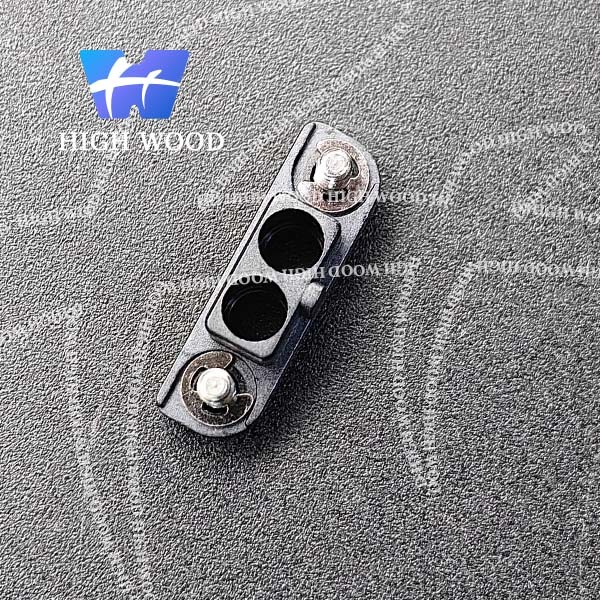

HW-CMM Connector, HW-222E00M11-0002-4320,MTL-55302F,2mm Pitch.

M16 :
CMM Female :
Y-YL-T-S-C-E
(D :straight)


MALE STRAIGHT ON CABLE P/N 30-33xx (solder or crimp):

Loaded Unloaded Ampere Cable A ØB ØC Length D hole Length E body Length F conductor Solder Crimp by HX3 Hexagone size/Dies Crimp by AF8
AWG 20 AWG 18 AWG 16 AWG 14 AWG 12
3305 30-3305 5A × 1,1mm

1,65
mm

 6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3308 30-3308 8A × 1,35mm

1,85
mm

 6,2mm 6,7mm 4,5mm OK Hex.1,9 mm/C14923 OK
3310 30-3310 10A × × × 1,7mm 6,2mm 6,7mm 6mm OK OK
3315 30-3315 15A × 2mm 6,2mm 6,7mm 6mm OK OK
3320 30-3320 20A × 2,6mm 6,2mm 6,7mm 5,3mm OK OK

Materials and coating:

Materials and coating
Insulating medium

Glass fiber reinforced PPS, UL94-V0

Radiation resistant, non hygroscopic, ozone resistant
Contact Copper alloy nickel base plating
Enclosure stainless steel
Electrical performance index
Voltage withstand test (sea level) 800V AC/DC
Insulation resistance ≥1000MΩ
Rated current

LF contact: working current 25 C, ≤ 3A;

Working current 85 C, ≤ 2.2A; contact resistance ≤10mΩ
Mechanical performance index
Mechanical life 500 times of plugging and unplugging
Environmental performance index
Operating ambient temperature -60℃ to 260℃

1. The contacts are distributed, and it is recommended to crimp the AWG22 wire for LF contacts;

2. After LF contact is pressed into the base with special tools, it is recommended to use the heat shrinkable sleeve

shrinks

its tail and fills the base cavity with glue;

Materials and coating:

Materials and coating
Insulation medium Glass fiber reinforced PPS,UL94-VO Radiation resistant,non hygroscopic,ozone resistant
Contact LF contact copper alloy nickel base plating gold 0.8μ
Epiphy Stainless steel
Electrical performance index
Voltage withstand test(sea level) 600V AC/DC
Insulation resitance ≥100mΩ
Contact Signal contact:working current 25*C,≤3A,working current 85C,≤2.2A,contact resistance≤10mΩ
Mechanical performance index
Mechanical life 500 times of plugging and unolugging
Single core insertion and extraction force of contact LF contact:insertion force≤2N,pull-out force≥0.2N
Retention Force in contact bace ≥10N
Environmental performance index
Operating ambient temperature 60℃-260℃
Vibrating level 0.75mm, 10G (root mean square) random vibration superimposed with sinusoidal vibration, 6 hours, instant break less than 2 nanoseconds
lmpact grade 100G, 6 ms
Salt resistance HcFc 141 bMGX (ATOCHEM) solvent
Salt spray test 96h

Moisture

resistance

 56 days, 90% humidity

Product display:



HW-CMM Connector, HW-222E00M11-0002-4320,MTL-55302F,2mm Pitch.HW-CMM Connector, HW-222E00M11-0002-4320,MTL-55302F,2mm Pitch.
