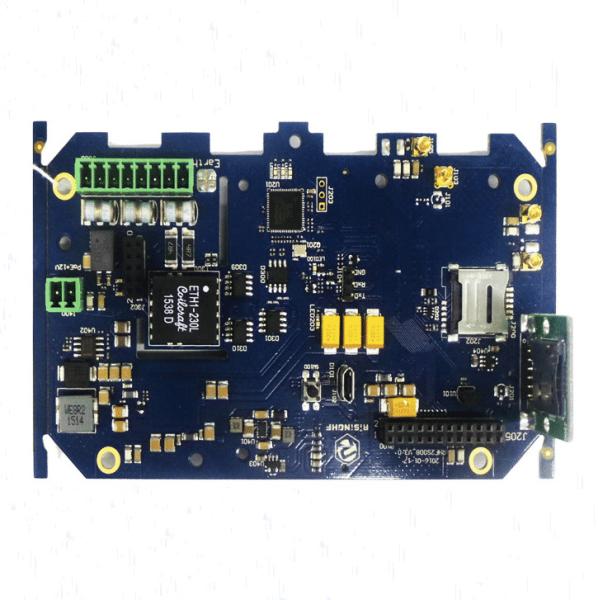

FR4 ROGERS Aluminum High TG CEM3 PCB Assembly For Medical Industry
FR4 ROGERS Aluminum High TG CEM3 PCB Assembly For Medical Industry
FR4 ROGERS Aluminum High TG CEM3 PCB Assembly For Medical Industry
FR4 ROGERS Aluminum High TG CEM3 PCB Assembly For Medical Industry
FR4 ROGERS Aluminum High TG CEM3 PCB Assembly For Medical Industry
FR4 ROGERS Aluminum High TG CEM3 PCB Assembly For Medical Industry
FR4 ROGERS Aluminum High TG CEM3 PCB Assembly For Medical Industry
FR4 ROGERS Aluminum High TG CEM3 PCB Assembly For Medical Industry
FR4 ROGERS Aluminum High TG CEM3 PCB Assembly For Medical Industry
FR4 ROGERS Aluminum High TG CEM3 PCB Assembly For Medical Industry
Specifications
Brand Name :
HighLeap
Model Number :
PCBA
Certification :
ISO9001/Iso14001/CE/ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
USD 1-30 piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 piece per week
Delivery Time :
1-15 working days
Packaging Details :
Vacuum Package
Product name :
medical pcb assembly
Copper Thickness :
0.5oz-12oz
Surface Finishing :
HASL\OSP\immersion Gold\ENIG
Base Material :
FR4/ROGERS/Aluminum/High TG/CEM-3
Board Thickness :
0.2mm-2.0mm
Testing Service :
100% Testing AOI supported
Layer :
1-64 Layers
Usage :
Medical Equipment
Description

FR4/ROGERS/Aluminum/High TG/CEM-3 pcb assembly for the medical industry

PCB Techinecal Capacity

Layers
Mass production: 2~58 layers / Pilot run: 64 layers
Max. Thickness
Mass production: 394mil (10mm) / Pilot run: 17.5mm
Material
FR-4 (Standard FR4, Mid-Tg FR4,Hi-Tg FR4, Lead free assembly material) , Halogen-Free, Ceramic filled , Teflon, Polyimide, BT,PPO, PPE, Hybrid, Partial hybrid, etc.
Min. Width/Spacing
Inner layer: 3mil/3mil (HOZ), Outer layer: 4mil/4mil(1OZ)
Max. Copper Thickness
UL certificated: 6.0 OZ / Pilot run: 12OZ
Min. Hole Size
Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm)
Max. Panel Size
1150mm × 560mm
Aspect Ratio
18:1
Surface Finish
HASL,Immersion Gold, Immersion Tin, OSP, ENIG + OSP, Immersion Silver, ENEPIG, Gold Finger
Special Process
Buried Hole, Blind Hole, Embedded Resistance, Embedded Capacity, Hybrid, Partial hybrid, Partial high density, Back drilling, and
Resistance control
PCBA technical Capacity
SMT
Position accuracy:20 um
Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP
Max. component height::25mm
Max. PCB size:680×500mm
Min. PCB size:no limited
PCB thickness:0.3 to 6mm
PCB weight:3KG
Wave-Solder
Max. PCB width:450mm
Min. PCB width: no limited
Component height:Top 120mm/Bot 15mm
Sweat-Solder
Metal type :part, whole, inlay, sidestep
Metal material:Copper , Aluminum
Surface Finish:plating Au, plating sliver , plating Sn
Press-fit
Air bladder rate:less than 20%
Press range:0-50KN
Max. PCB size:800X600mm
Testing
ICT,Probe flying,burn-in,function test,temperature cycling
About HighLeap Electronic
Advantages of HighLeap Electronic
Our PCB Equipments
Our Certifications

FAQ

Q.What service can you supply ?
We are OEM PCB and PCBA manufacturer since 2002 ,we can provide turnkey solutionincluding RD PCB fabrication,SMT and assembly PCBA inside the enclosure,Functiontesting and other value-added service.
Q.What file you need to prepare if you want to get an quotation from us?

  • For PCB board, you need to prepare files of Gerber file,it should including RS-274X,ODB++, DXF, PCB, PCBDOC etc formats.
  • For PCBA(PCB with soldered components), except the file for PCB, you also need to prepare the BOM list (components list), Pick and Place file(txt format), real sample pictureor 3D PDF version file etc.
Q. Do you have any MOQ Limited ?
We havent any limited about MOQ .Sample and mass production all can support.
