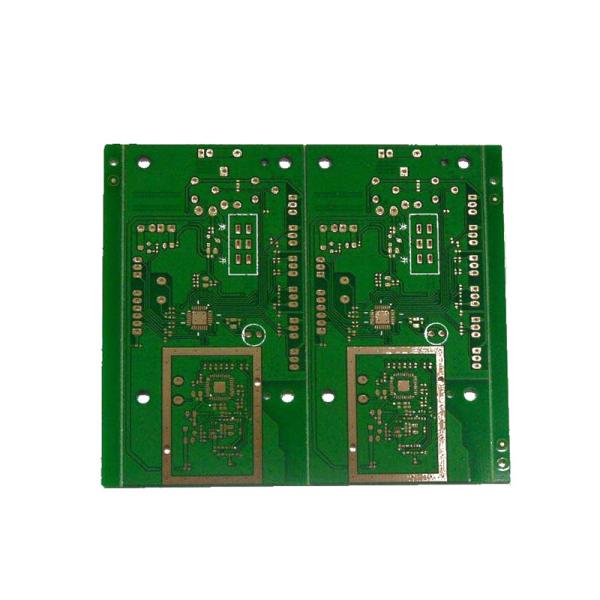

One-Stop Service through hole soldering Circuit Board Turnkey electric circuit board
|
| |
Max Layer | 60L |
Inner Layer Min Trace/Space | 4/4mil |
Out layer Min Trace/Space | 4/4mil |
Inner Layer Max Copper | 5oz |
Out Layer Max Copper | 5oz |
Min Mechanical Drilling | 0.2mm |
Min Laser Driliing | 0.15mm |
Max Aspect Ratio(Mechanical Drilling) | 20 :1 |
Max Aspect Ratio(Laser Drilling) | 1 :1 |
Press Fit Hole Ttolerance | ±0.055mm |
PTH Tolerance | ±0.0755mm |
NPTH Tolerance | ±0.049mm |
Countersink Tolerace | ±0.149mm |
Board Thickness | 0.2-6mm |
Board Thickness Tolerance(<1.0mm) | ±0.1mm |
Board Thickness Tolerance(≥1.0mm) | ±15% |
Min Board Size | 15*15mm |
Max Board Size | 24*30 inch |
Contour Tolerance | ±0.09mm |
Min BGA | 6 mil |
Min SMT | 6*9mil |
Min solder Mask Clearance | 1.6mil |
Min Solder mask Dam | 4mil |
Min Legand Width/Height | 4/23mil |
Strain Fillet Width | / |
Bow&Twist | 0.003 |
About HighLeap Electronic
Advantages of HighLeap Electronic
FAQ
Q1.What is needed for quotation?
A: PCB Circuit Boards: Quantity, Gerber file and Technic requirements(material,surface finish treatment, copper thickness,board thickness ,...)
PCBA: PCB information, BOM, (Testing documents...)
Q2. What file formats do you accept for production?
A: Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF,word,txt)
Q3. Are my files safe?
A: Your files are held in complete safety and security.We protect the intellectual property for our customers in the whole process.. All documents from customers are never shared with any third parties.
