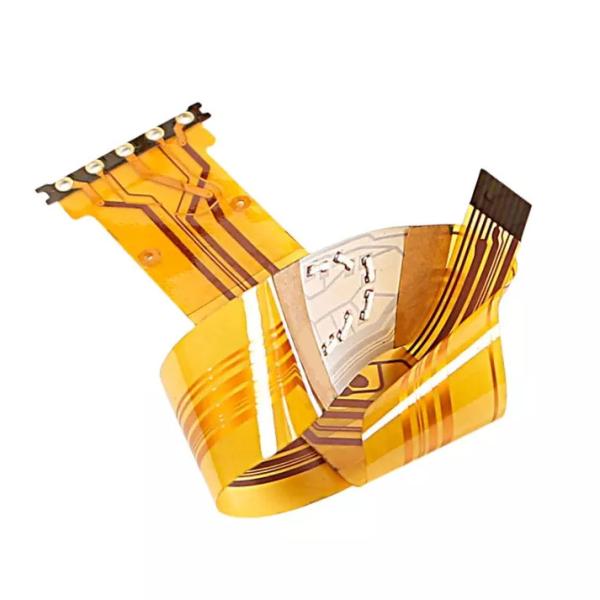

Fast PCB Factory Custom Design Fast Lead Time Flexible Circuit Board Flexible PCB Manufacturer
Fast PCB Factory Custom Design Fast Lead Time Flexible Circuit Board Flexible PCB Manufacturer
Specifications
Brand Name :
HighLeap
Model Number :
Flex Pcb
Certification :
ISO9001/Iso14001/CE/ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
USD 1-30 piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 piece per week
Delivery Time :
1-15 working days
Packaging Details :
Vacuum Package
Product name :
Circuit Board
Copper Thickness :
0.5oz/1oz/2oz custom
Surface Finishing :
OSP ENIG custom
Certificate :
CE
Board Thickness :
0.1mm-0.5mm
Layer :
1-6Layer\
Description

Hot Sales Fast PCB Factory Custom Design Fast Lead Time Flexible Circuit Board Flexible PCB Manufacturer Service Manufacturers

FPC PRODUCTION CAPABILITY
Item
Content
Regular Capability
Special
1
Layer
1-6L
Above 8L
2
Max.Array Size
500*600mm
250*1500mm
3
Min.board Size
1-*1mm
4
Max.board thickness
0.23mm
0.4mm
5
Min.board thickness
0.075mm
0.065mm
6
(0.075mm≤T Tolerance±0.03mm
V
575
7
(0.035mm≤T Tolerance±0.05mm
℃
130
8
(0.6mm≤T Tolerance±0.1mm
%(50-260℃)
0.5
9
Max Drill bit Diameter
6.5mm
10
Min Drill bit Diameter
0.20mm
0.15mm
11
Routing tolerance
±0.2mm
±0.15mm
12
Min Base Copper
1/3 OZ
1/4 OZ
13
Max Base Copper
2 OZ
4 OZ
14
Min Coverlay Thickness
1mil(PI0.5mil Adhesive 0.5mil)
15
Max Coverlay Thickness
2mil(PI1mil Adhesive 1mil)
16
Tolerance of holes diameter(PTH)
±0.05mm
17
Tolerance of holes diameter(NPTH)
±0.025mm
18
Hole Position Deviation(hole to hole compared with the CAD data)
±0.05mm
19
Hole Position Deviation(copper foil to hole compared with the CAD data)
±0.07mm
20
PTH wall copper thickness
12-18um
21
Minimum Trace Width/Space
1/3OZ Cu 1L 50/60um 1/2OZ 2L 70/80um 1OZ Cu 1L 70/80um 1OZ Cu 2L 80/90um
22
Min distance copper foil to the edge
±0.10mm
±0.07mm
23
Offset tolerance of silk character
±0.3mm
±0.2mm
24
Soldermask printing offset tolerance
Photo sensitive:±0.1mm(±4mil) Printed backing:±0.3mm(±8mil)
±0.075mm ±0.2mm
25
Soldermask thickness
Photo sensitive:0.007-0.02mm(0.3-0.8mil) Printed backing:0.01-0.025mm(0.4-1mil)
26
Protective film alignment accuracy(joint offset tolerance)
±0.15mm
±0.10mm
27
Min protective film lamination spilled glue amount
0.5mil Adhesive≤0.1mm(4mil) 1mil Adhesive≤0.15mm(6mil)
28
Tin thickness(Max),(Min)/Tolerance
(0.2mil)-(2.0mil)±0.30mm
29
Gold plating, Ni thickness(Gold finger or other parts)
1-6 u inch
Min 30 u inch Max 280 u inch
30
Gold plating, Au thickness(Gold finger or other parts)
1-6u inch
1-10 u inch
31
ENIG Ni/Au thickness(Gold finger or other parts)
Ni:30-150u inch Au:±1u inch
4 u inch
32
(OSP)
0.2-0.8um
33
Die Punching Min hole/tolerance
Min:0.5mm/±0.05mm
+0.06/-0mm
34
Alignment tolerance of manual joint operation
±0.30mm
±0.2
35
Alignment tolerance of fixture joint operation
±0.15mm
