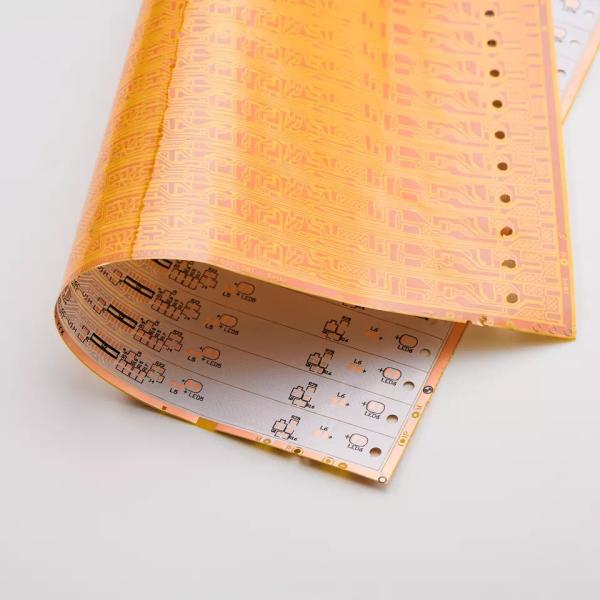

Professional Fpc Manufacturer Transparent/yellow/white/black Flexible PCB 1-6 Layers flexible fpc pcb
Professional Fpc Manufacturer Transparent/yellow/white/black Flexible PCB 1-6 Layers flexible fpc pcb
Specifications
Brand Name :
HighLeap
Model Number :
Flex Pcb
Certification :
ISO9001/Iso14001/CE/ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
USD 1-30 piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 piece per week
Delivery Time :
1-15 working days
Packaging Details :
Vacuum Package
Product name :
Circuit Board
Copper Thickness :
0.5oz/1oz/2oz custom
Surface Finishing :
OSP ENIG custom
Certificate :
CE
Board Thickness :
0.1mm-0.5mm
Layer :
1-6Layer\
Description

Hot Sales Professional Fpc Manufacturer Transparent/yellow/white/black Flexible PCB 1-6 Layers flexible fpc pcb Service Manufacturers

Article Description Capability
Laminate Materials FR4, high TG FR4, high frequency, alum, FPC
Board Cutting Number of layers 1-48
Min.thickness for inner layers
(Cu thickness are excluded)		 0.003”(0.07mm)
Board Thickness Standard (0.1-4mm±10%)
Min. Single/Double:0.008±0.004”
4layer:0.01±0.008”
8layer:0.01±0.008”
Bow and twist no more than 7/1000
Copper Weight Outer Cu weight 0.5-4 0z
Inner Cu weight 0.5-3 0z
Drilling Min size 0.0078”(0.2mm)
Drill deviation ±0.002″(0.05mm)
PTH hole tolerance ±0.002″(0.005mm)
NPTH hole tolerance ±0.002″(0.005mm)
Solder Mask Color Green,white,black,red,blue…
Min solder mask clearanace 0.003″(0.07mm)
Thickness (0.012*0.017mm)
Silkscreen Color white,black,yellow,blue…
Min size 0.006″(0.15mm)
Component Sourcing Yes
Tolerance of PCB ±5%
Max Size of Finish Board 700*460mm
MOQ NO MOQ (1pcs)
Surface Finish HASL,ENIG,immersion silver,immersion tin,OSP…
PCB Outline Square,circle,irregular(with jigs)
Package QFN,BGA,SSOP,PLCC,LGA
Sub-assembly Plastic,metal,screen
Min Line/Space 0.075/0.075mm
