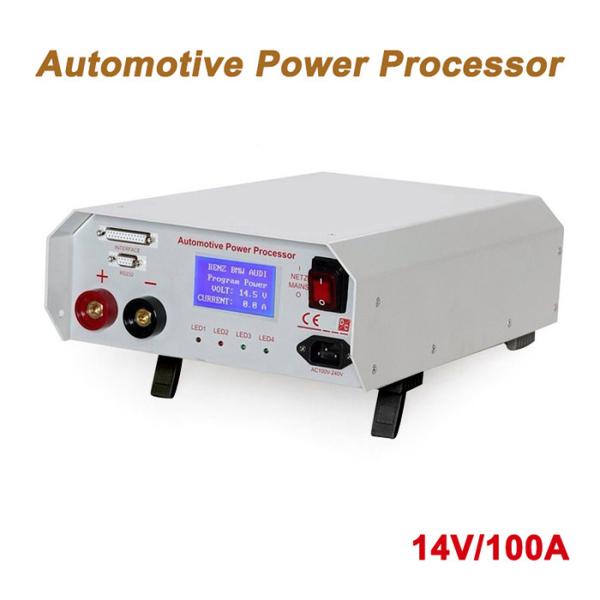

Smart Auto Diagnostic Tools , AUDI / VW / BENZ / BMW Automotive Programming Dedicated Power

The car ECU is so easily to be damaged once the battery voltage is unstable while you doing the ECU programming of your vehicle. So it is necessary to protect the ECU safety with our Voltage Regulator And Power Charger. Automotive Power Processor Automatic Voltage Regulator delivers cost-effective and high quality power protection for many applications and prevents equipment damage from voltage fluctuations and transient surge.

Often times, it takes too long time to do vehicle ECU programming, the battery voltage usually is lower or higher than standard values due to electricity instability which might result sudden disruption during programming and cause damage to Vehicle ECU.

Function:

* Smart Car Program

* Charging dedicated power

* Input voltage 220V, Output Voltage 14V/100A.

* High temperature alarm.

* Intelligent charger for motor vehicles starter battery

* Extensive protection functions and self-protection functions

* Short circuit and reverse polarity protection

Applicable models: Volvo, Porsche, Volkswagen, Audi, BMW, Mercedes-Benz, General Motors Etc.

Output Characteristics

DC voltage: 14.5V

Rated current: 0-100A

Rated maximum power: 1500W

Ripple and noise: 100mVp-p

Input Characteristics

Rated input voltage: 220V (+/-20%)

Frequency range: 40-60HZ

Power Factor: 0.95

Efficiency: 85%

Protection Features

Overload: 90-110% of rated output power

Over-voltage: 15V

Working temperature: -40 - +85

Safety: UL60950, TUV EN60950-1

Withstand voltage: I / P-O / P: 3KVAC I / P-FG: 1.5KVAC

Insulation resistance: I / PO / P, I / P-FG: 100M Ohms, 500VDC/25 C / 70% RH

EMC: Complies with EN55022, EN61000
