Specifications
Brand Name :
OTA
Certification :
CE, ISO
Place of Origin :
PR.CHINA
MOQ :
1SET
Payment Terms :
L/C, T/T
Supply Ability :
100SETS/MONTH
Delivery Time :
10-15 DAYS
Packaging Details :
WOODEN PALLET
Model Number :
GZ
Carrying range :
5T-100T
Warranty Time :
3 Y
Wheel linear speed :
100-1000mm/min
Motor power :
0.75-15kw
Welding Turning Rolls Typ :
Self-Adjusting
Usage :
Pipe Rotation
Material :
Steel
Description

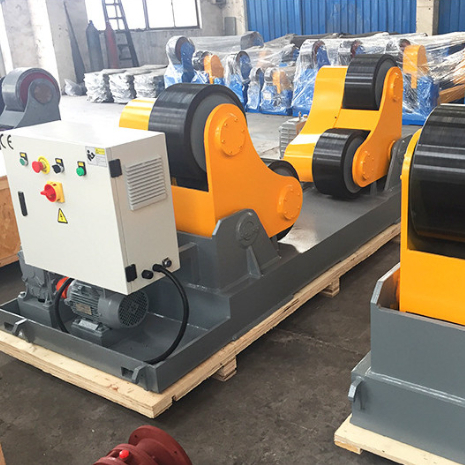

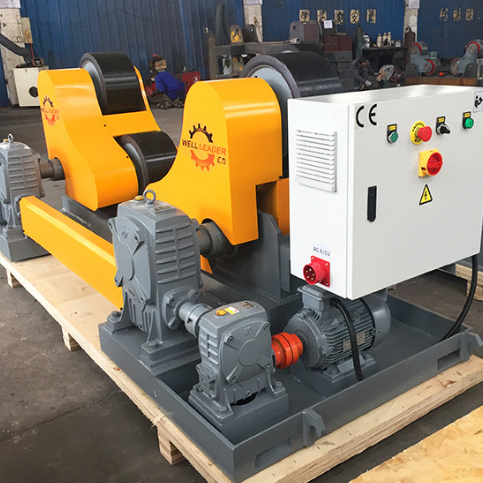

Our standard GZ welding rotator is a self alignment type without adjusting rollers position, which is designed and produced to better satisfy the growing demands for the pressure vessel manufacturers both domestically and internationally. It can be applied to a wide range of diameters, and it adopts frequency conversion setting and stepless speed regulation mode which provide a smooth speed variation for welding purpose.
This rotator features stable and reliable performance, low noise, easy operation, and self suitable.

Widely Applications in:
- Chemicals & petrochemicals industry.
- Boiler industry.
- Storage tank fabrication
- Pipe industry.
- For Welding, Painting, Blasting, Assembly etc.

Technical features.
Self-adjusting wheel stand is suitable for welding, polishing, lining and assembling of cylinders. Wheel spacing does not need to be
The wheels are made of high-quality PU wheels or high-strength all-steel wheels, which have strong load-bearing capacity and long service life.
Equipped with speed-adjusting AC frequency converter and braking motor to improve the working capacity and safety of the equipment.
1. Each set of roller frame is equipped with one active wheel, one driven wheel and one set of electric control system as standard.
2. Multiple sets of driven wheels are available.
3. Adopt Schneider/Mitsubishi and other high quality speed control frequency converter.
4. Hand control box with long wiring 10 meters control distance.
5. can be equipped with wireless remote control box, remote control distance ≤ 200 meters.
6. CE certified products.
