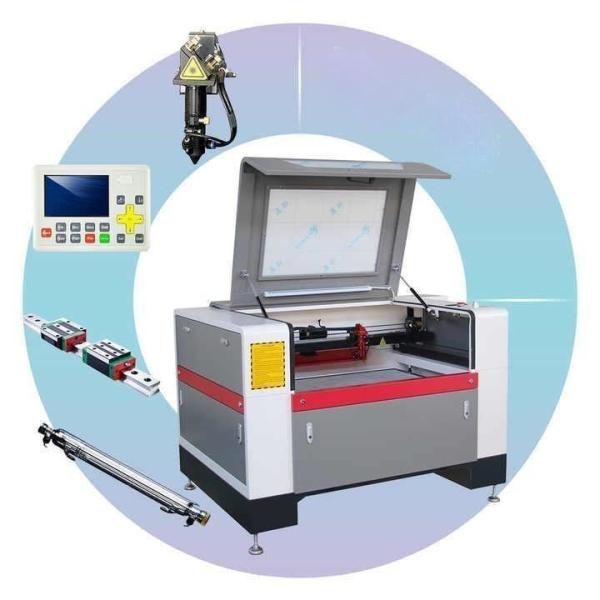

CO2 Sealed Glass Tube Acrylic Laser Engraving Machine 80W 60W 100W 130W
CO2 Sealed Glass Tube Acrylic Laser Engraving Machine 80W 60W 100W 130W
CO2 Sealed Glass Tube Acrylic Laser Engraving Machine 80W 60W 100W 130W
CO2 Sealed Glass Tube Acrylic Laser Engraving Machine 80W 60W 100W 130W
Specifications
Brand Name :
OTA
Model Number :
OTDK1390
Certification :
CE, ISO
Place of Origin :
PR.CHINA
MOQ :
1SET
Price :
USD450-USD3180
Payment Terms :
L/C, T/T
Supply Ability :
100SETS/MONTH
Delivery Time :
10-15 DAYS
Packaging Details :
WOODEN PALLET
Product Name :
Acrylic Laser Engraving Machine
Cooling Mode :
Air Cooling
Engraving Area :
400mm*400mm
Engraving Depth :
0.01-0.2mm
Engraving Speed :
0-400mm/s
Laser Wavelength :
10.6um
Minimum Character :
0.5mm
Positioning Accuracy :
0.01mm
Working Humidity :
5-95%
Description

80W 60w 100w 130w CO2 Sealed Glass Tube Acrylic Laser Engraving Machine

Feature:

1) This Laser Cutting Machine adopts internationally advanced DSP control technology, which realizes the function of high speed curve cutting and shortest path optimization, improving the working efficiency greatly.

2) This machine supports Autocad, Coreldraw and other image processing software perfectly. This machine also has advanced color management, supporting the combination of any color, engraving in freely defined sequence, partial or total output in one time.

3) This laser cutting machine can cut any curve fast and consecutively. This machine can also save more than 128 files so that users can complete the mass production without the connection to the computer.

CO2 Sealed Glass Tube Acrylic Laser Engraving Machine 80W 60W 100W 130W

CO2 Sealed Glass Tube Acrylic Laser Engraving Machine 80W 60W 100W 130W

CO2 Sealed Glass Tube Acrylic Laser Engraving Machine 80W 60W 100W 130W

CO2 Sealed Glass Tube Acrylic Laser Engraving Machine 80W 60W 100W 130W

CO2 Sealed Glass Tube Acrylic Laser Engraving Machine 80W 60W 100W 130W

CO2 Sealed Glass Tube Acrylic Laser Engraving Machine 80W 60W 100W 130W

Model ltem
1 Application: Laser engraving and cuttingmachine
2 Powe S0W/80W100W/130W/150W
3 Working area 600*400/900*600/1000*800/1300*1000/1600*1000
mm
4 Tube Brand REC/EFR/YONGLI/SPT
5 Power Supply 110V/220V50HZ/60HZ
6 Min line width <0.15mm
7 Positon accuracy 0.01mm
8 Repetition accuracy 0.02mm
9 DPI 1000 DPI
10 Smallest Character Engraving Character2.0mmx2.0mm,English 1.0mmx1.0mm
11 Guide rai PMI/Shac from 15mm Taiwan (X-axis,Y-axis)
12 Transmission method Belt Transmission
13 Drive system Leadshine driving system
14 Mainboard RUIDA 6445/6442
15 Control software RUIDA-V8,Coreldraw,Photoshop,AutoCAD,etc
16 Cooling method Water cooling
17 Working environment 0-45°℃
18 Mchine size 4060=140*75*95/140*100*95/155*115*95/187*137*
95cm
19 Working table Honey comb/Knief/up and down/Electric lifting

Factory & Stocks

CO2 Sealed Glass Tube Acrylic Laser Engraving Machine 80W 60W 100W 130W

Packing & shipping

CO2 Sealed Glass Tube Acrylic Laser Engraving Machine 80W 60W 100W 130W

Certificate

CO2 Sealed Glass Tube Acrylic Laser Engraving Machine 80W 60W 100W 130W
