Head & Tail Welding Positioning Equipment HBT-500 One Axis Servo Positioner
Head & Tail Welding Positioning Equipment HBT-500 One Axis Servo Positioner
Specifications
Place of Origin :
PR.CHINA
Brand Name :
OTA
Certification :
CE, ISO
MOQ :
1SET
Packaging Details :
WOODEN PALLET
Delivery Time :
10-15 DAYS
Payment Terms :
L/C, T/T
Supply Ability :
100SETS/MONTH
Description

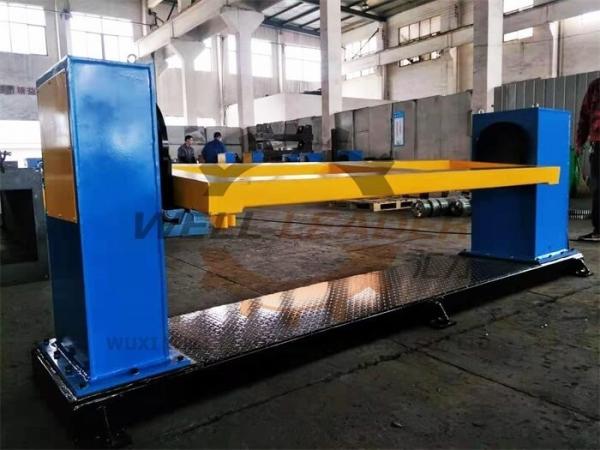

This one axis servo positioner is mainly composed by fixed base, rotation head & tail, welding positioning frame, AC servo motor & precise gearbox, Conductive mechanism, protection cover and electrical control system.

The fixed base is a welded structure stress released. It is machined professionally to provide high accuracy at certain positions. The surface is painted after shot blasting, the color can be done according to customer’s requirements.

The rotation head & tail stock is also a welded structure stress released and fine machined, to provide long term working stability.

The positioning frame is welded by quality profile beams, heat treatment and machined to provide the surface finishing and self stability. Standard distance bolt holes are set for customer mount workpiece conveniently.

The rotation stability, position accuracy and longlife working is assured by using AC servo motor & RV gearbox.

The conductive mechanism is made in brass, which give perfect conduction. The foundation is whole insulation to protect the servo motor, robot, welding power, etc.

To assure the quality and working stability, we use OMRON/MITSUBISHI PLC to control the motions, and electrical components are all from well-known brand.

Model: HBT-500

Loading capacity: 500kg

Standard Rotate Radius: R700mm

Rated Rotate range: +/-360deg

Rated Rotate speed: 70 o/s

Repeat Location accuracy: +/-0.1mm

Positioning Frame size: 2200x800x90mm (L*W*H)

Machine overall size: 2900x650x1100mm (L*W*H)

Rotating table: ɸ 400mm

Rotating center height: 950mm

Electrical control & motors: Customer provide

Insulation class: H

G.W: 890kg
