ISO Tank Container Rotation Machine Automatic Turnover Rotating Machine
ISO Tank Container Rotation Machine Automatic Turnover Rotating Machine
ISO Tank Container Rotation Machine Automatic Turnover Rotating Machine
ISO Tank Container Rotation Machine Automatic Turnover Rotating Machine
Specifications
Brand Name :
OTA
Model Number :
GKT
Certification :
CE, ISO
Place of Origin :
PR.CHINA
Power Source :
Electric
Material :
Steel
Capacity :
5000-20000kg
Rotation Speed :
1-5rpm
Frequency :
50Hz
Application :
Industrial
Weight :
3500kg
Voltage :
380V
Operation Mode :
Automatic
MOQ :
1SET
Packaging Details :
WOODEN PALLET
Delivery Time :
10-15 DAYS
Payment Terms :
L/C, T/T
Supply Ability :
100SETS/MONTH
Description

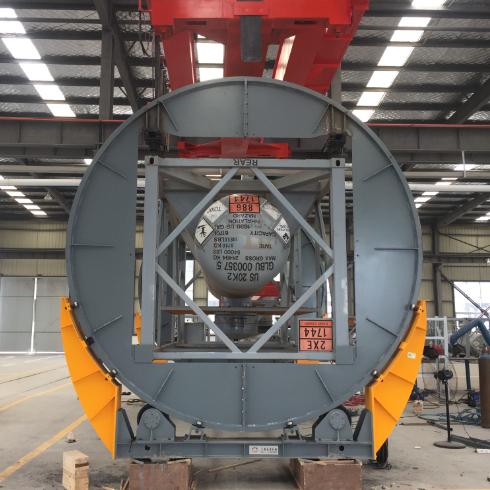

The rotation device is designed for rotate the ISO tank or other standard containers for purpose of cleaning, repair, test, or fabrication & maintenance.

The tank/container is loaded on the seats, one of the circle can move on the rails, which will move the the tank/container into the circle corners. After all corners are close to the machine frame and fixed automatically, the circles will rotate driven by motors, which has self lock function. After the container/tank is rotated to a certain right position, stop the circle, workers can do repair or cleaning conveniently and easily.

ISO Tank Container Rotation Machine

Max loading: 5Ton

Job size: Standard container size 20’, 40’ .

Ring rotate speed: controlled by “Schneider” inverter.

Rotating method: driven by chain & sprocket wheel.

Rotate motor power: 2*0.75W

Travel motor power: 2*0.55kw

Idler travel stroke: 5500-13000mm

Idler travel speed: 3000mm/min

Supply range (For each set/pair)

  • -01 power unit with motors & gearbox, with rotating ring, fix type
  • -01 Idler unit with rotating ring, travel type
  • -01 Pendant box with 15mtrs cables (as spare)
  • -01 control cabinet with inverter: Schneider.
  • -03 pushbuttons
  • -01 speed control switch
  • -01 digital speed displayer
  • -Relative documents inc. mechanical drawings, electrical diagram, operation manual, etc.
