KANE 358 Flue Gas Analyser With CO Sensor Protection With Internal Pump
KANE 358 Flue Gas Analyser With CO Sensor Protection With Internal Pump
KANE 358 Flue Gas Analyser With CO Sensor Protection With Internal Pump
KANE 358 Flue Gas Analyser With CO Sensor Protection With Internal Pump
Specifications
Brand Name :
HiYi
Model Number :
358
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
paper case
Temperatures :
0 - 45°C
Pump :
Inner pump
Size :
216mm x 105mm x 45mm
Weight :
Approx. 0.625g
Type :
Portable Gas Detector
Description

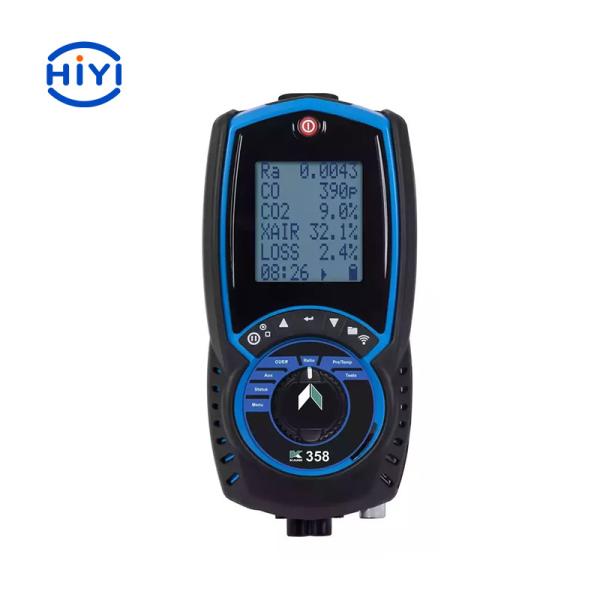

KANE 358 Flue Gas Analyser with CO sensor protection

OVERVIEW

KANE358 has a large 6 line display showing data & test results based on your actions. The display’s bottom line also highlights analyser status at all times. It stores up to 30 logs of any combination of Combustion & Temperature test results. It can send test readings to our optional KANE IRP-2 infrared printer or KANE’s wireless App if wireless is fitted. Two lines of 16 characters can be added to the header of the printouts.
Structured Benchmark new boiler commissioning test Structured let by & tightness tests

FEATURES


* Rotary dial & 6 line display
* Wireless option

Connect to KANE LIVE & 3rd party Apps
* Data hold, log & print with user details to optional printer
Combustion
Pressure
Let-by & Tightness
Temperature
Commission test
* Backed by KANE CARE - We promise to never let you down or your money back

* Install & service oil, domestic gas & biomass appliances
* Combustion performance checks
* Combustion efficiency checks
* Flue Draught

● Natural Gas
● Butane
● LPG
● Light oil
● Wood pellets
● Propane

SPECIFICATION
PARAMETER
RANGE
RESOLUTION
ACCURACY
Temperature Measurement
Flue Temperature
0 - 600°C
0.1°C
±0.5°C
Inlet temperature (Internal Sensor)
0 50°C
0.1°C
±1°C
Inlet temperature (External Sensor)
0 - 600°C
0.1°C
±0.5°C
Flue Gas Measurement
Carbon Monoxide
0 - 2000ppm
1ppm
±3ppm or ±5% of reading (whichever is greater)
Oxygen
0 - 21%
0.10%
±0.3% Volume
Calculations
Carbon Dioxide
0 - 20%
0.10%
±0.3% Volume
CO/CO2 Ratio
0 - 0.9999
0.0001
±5% of reading
Efficiency (Net or Gross)
0 - 99.9%
0.10%
±1% of reading
Efficiency High (C)
0 - 119.9%
0.10%
±1% of reading
Excess Air
0 - 119.9%
0.10%
±0.2% of reading
Pre-programmed Fuels
UK, USA & France
Natural Gas, Propane, Butane, LPG, Light Oil, Digester Gas, Wood Pellets Heavy Oil
European
Natural Gas, Light Oil, Bio Oil, Coke, LPG, Wood, Town Gas, Butane & Propane
Battery Life
>8 hours (continuous with pump on)
Certification
The KANE458s is independently tested & certified to EN 50379, Parts 1-3 in accordance to 1st German Federal Emission Control
Ordinance (Bim5chV)
Operating Conditions
Temperatures
0 - 45°C
Humidity
15 to 90% RH, (non-condensing)
Power Supply
Rechargeable batteries, USB Charging
Physical Characteristics
Weight
Approx. 0.625g
Dimensions
216mm x 105mm x 45mm

KANE 358 Flue Gas Analyser With CO Sensor Protection With Internal Pump
