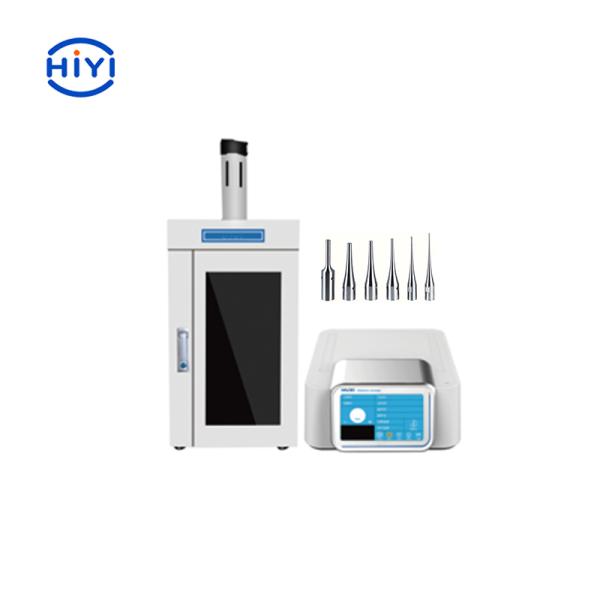

HX-W Series Industry Ultrasonic Homogenizer With High Purity Titanium Alloy Luffing Rod
HX-W Series Industry Ultrasonic Homogenizer With High Purity Titanium Alloy Luffing Rod
HX-W Series Industry Ultrasonic Homogenizer With High Purity Titanium Alloy Luffing Rod
HX-W Series Industry Ultrasonic Homogenizer With High Purity Titanium Alloy Luffing Rod
Specifications
Brand Name :
HiYi
Model Number :
HX-W Series
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
15 work days
Packaging Details :
paper case
Model :
HX-W Series
Total time (ultrasound + gap) :
1-99H59M59S
Frequency range (kHz) :
19.5-20.5
Display mode :
True color capacitive touch screen display
Soundproof box Size :
370*370*650mm
Host+Transducer size :
510*225*290mm
Description

HX-W Series Industry Ultrasonic Homogenizer

OVERVIEW

The industrial ultrasonic Homogenizer is a new equipment developed by our company on the basis of laboratory use to adapt to the preparation of nano-materials and strengthen ultrasonic cleaning, bacterial treatment, used in factory pilot test and so on. It is the most ideal ultrasonic crushing equipment.

FEATURES & BENEFITS

Overload protection

The overload protection function and the horn will not work if they are not intrude into the liquid, so as to protect the horn from damage;

High purity titanium alloy

High purity titanium alloy luffing rod can be continuously ultrasonic for more than one hour without damaging the luffing rod;

Integrated injection design

Use integrated injection molding technology design, streamlined shape;

Alcoa 7075

The metal part is made of Alcoa 7075 material, which last longer. and is safe and not easy to be damaged.

SPECIFICATIONS

Model
HX-3000W
HX-2000ZW
Item No
1008011001
1008042001
Power(w)
1000-3000W continuously adjustable
2000W
Power adjustment
Manual
Automatic
Crushing capacity(ml)
500-5000(need to choose the corresponding horn)
Optional horn
20 /38/40mm
Single ultrasound time(S)
0.1-99.9
Single gap time(S)
0.1-99.9
Total time (ultrasound + gap)
1-99H59M59S
Frequency Range(KHz)
19.5-20.5
Temperature control range
0- 100 degrees (optional low temperature and constant temperature)
Alarm function
Temperature, time, overload, no load, over temperature
Standard Horn(mm)
40
Display mode
True color capacitive touch screen display
Data storage
20 groups
Power supply (optional 110V)
220V/110V/ 50Hz/60Hz
Host+Transducer size (mm)
510*225*290
Soundproof box size (mm)
370*370*650
Optional function
Computer communication + data printing + soundproof box lighting or sterilization
Control mode
MCU + TFT touch
Voice alarm and prompt function
yes
