Specifications
Brand Name :
HiYi
Model Number :
XM-E-VOC
Certification :
CE/RoHS
Place of Origin :
China
MOQ :
1
Price :
USD 1000-2000/pcs
Payment Terms :
L/C, D/A, D/P, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 set/month
Delivery Time :
3-7 days
Packaging Details :
alloy case
Name :
HiYi PID Sensor ATEX Volatile Organic Compound Monitor 0-10000ppm Portable VOC Single Gas Detector
Test range :
0-20/200/2000/10000ppm
Response time :
T90<30s
Alarm :
Sound+Light Alarm
Power supply :
Lithium battery
Operating Temperature :
-40 ℃ - 70 ℃
Relative Humidity :
15% - 95%, non-condensing
Dimensions :
228* 84 * 50.5mm
Weight :
0.55 kg
Description

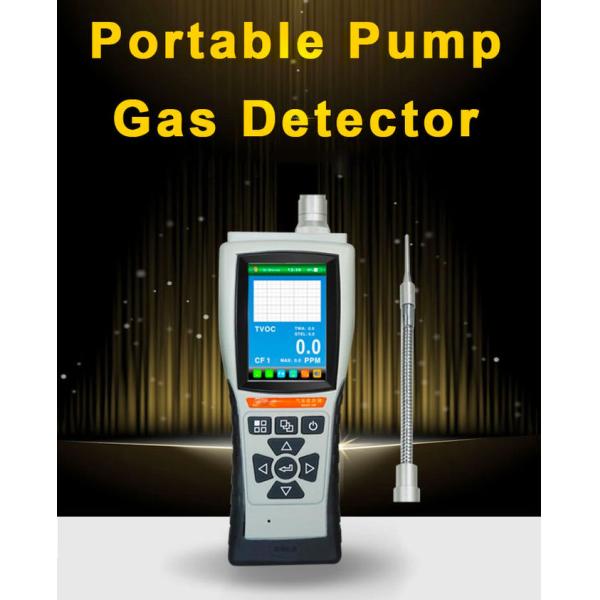

Portable Gas Detector

VOC Volatile Organic Compound

OVERVIEW

XM-E Portable VOC Monitor is the ideal solution for safety applications and industrial hygiene,for enhanced detection of over 300 Volatile Organic Compounds.

Thus, providing you with a fast and accurate detection of volatile organic compounds. Our portable VOC monitor provides a total volatile organic compound reading, with a clear 1.7” display and audible, visual and motion alarms. This ensures alarm information is in a clear to understand format.

Our portable VOC monitor is suitable for ATEX applications.

It utilises USB re-chargeable lithium ion batteries, providing the monitor with both long life operation time and faster charging, reducing monitor downtime.

ABOUT VOLATITLE ORGANIC COMPOUNDS (VOC)

Volatile organic compounds (VOC’s) are organic chemicals that have a high vapour pressure at ordinary room temperature. Their high vapour pressure results from a low boiling point, which causes large numbers of molecules to evaporate from the liquid or solid form of the compound and enter the surrounding air.

For example, formaldehyde, which evaporates from paint, has a boiling point of only –19 °C. VOC’s are numerous, varied, and everywhere. They include both human-made and naturally occurring chemical compounds. Most scents or odours are caused by VOC’s. Volatile Organic Compound play an important role in communication between plants and messages from plants to animals.


This is why it is important to monitor for VOC using a range of voc gas detector.

HiYi Technology offers single-gas detector or multi-gas detectors, workers can monitor exposure in areas where gases may be present. In areas where workers could be exposed to additional gases, the gas detector will keep workers safe.

VOC Volatile Organic Compound Single Gas Detector 10000ppm 2000ppm

FEATURES & BENEFITS

  • Intelligent Probe design;convenient calibration and maintenance
  • Fault, Warning, operator error, alarm will be smart tips
  • Built-in CF calibration coefficients (VOC measurements only valid)
  • With audible alarm, visual alarm function, the status bar also displays alarm status
  • Full-color 3.5-inch TFT screen, color LCD display and intuitive
  • Can be both digital and curve display of gas concentration in two ways
  • With USB communication port, you can speed 9600 bytes to communicate directly with the computer
  • With test record function, can store a month's measurement data and instrument or computer can view the data
  • Memory capacity is 2M,can store more than 90,000 pieces of data
  • With alarm recording function, you can record the last four times the alarm time and type
  • With calibration record; can record the last four times the size of the calibration time span
  • High-capacity lithium battery-powered, rechargeable, low battery automatic shutdown
  • Can be set high reported, underreporting, TWA, STEL, shutdown time, pump speed, etc.
  • Indicate way : LCD display real-time concentration ,LED ,buzzer alarm

VOC Volatile Organic Compound Single Gas Detector 10000ppm 2000ppm

  • VOC Volatile Organic Compound Single Gas Detector 10000ppm 2000ppmVOC Volatile Organic Compound Single Gas Detector 10000ppm 2000ppm

SPECIFICATION

Sampling way
Pump priming
Resolution
according to the range
Precision
±5%FS
Response time
T90<30s
Indicate way
LCD display real-time concentration ,LED ,buzzer alarm
Data storage
Can store multiple sets of data
Pressure range
Atmospheric pressure
Power supply
Lithium battery (3.7V/3000Ah)
Operating Current
normal current:≤ 150mA; Alarm current: ≤ 200mA
Operating Temperature
-40 ℃ - 70 ℃
Relative Humidity
15% - 95%, non-condensing
Storage Temperature
-20 ℃ - 60 ℃
Storage humidity
≤ 90%, no condensation
Continuous work hours
12hours
Charge time
6-8hours

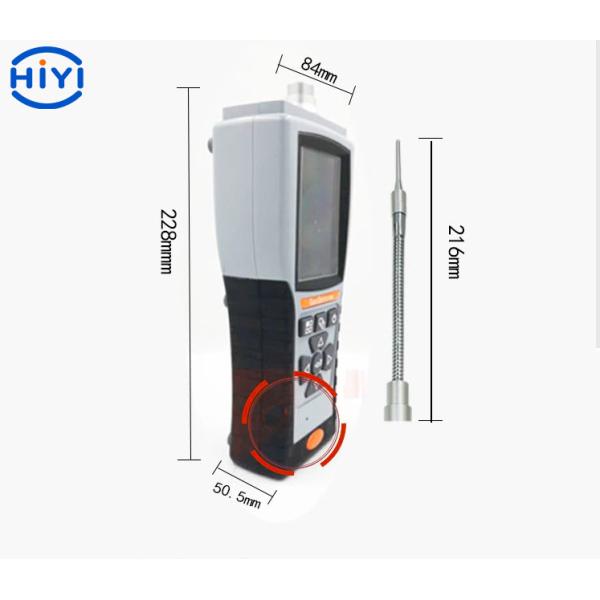

Dimensions
228* 84 * 50.5mm
Installation
Handheld / Stand-in
Weight
0.55 kg
Protection Class
IP65

APPLICATION

The detector is widely used in industrial Hygiene and safety monitoring, personal safety, alarm verification with fixed systems, Low concentration leak detection, laboratories, clean rooms, soil, contamination and remediation, single gas detector in carrier case.

The detector can effectively predict the concentration of dangerous gas alarm, to ensure that the safety of staff life is not threatened, production equipment is not lost.
