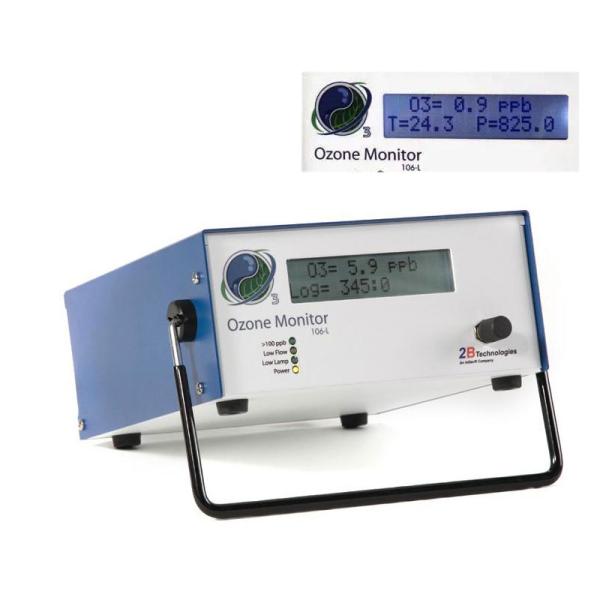

M106 UV Ozone Analyzer
The M106 UV ozone analyzer Including the 106-L, 106-M and 106-H ozone analyzers are available, where L, M and H refer to low (0-100 ppm), medium (0-1000 ppm) and high (0-20%) ozone concentrations, respectively. The M106 UV ozone analyzer is used in environmental ozone, pharmaceutical, water treatment, health appliances, food, disinfection, etc.
The M106 UV ozone analyzer is used in environmental ozone, pharmaceutical, water treatment, health appliances, food, disinfection, ozone generator manufacturers, municipal water industry, industrial sewage industry, fine chemical industry, food and drinking water industry, space disinfection industry, pool disinfection industry, flavor synthesis industry and other industries using ozone generator. etc.
Measurement principle | nm 254 UV light source |
Measurement interval | 10 seconds (data averaging options: 10 seconds, 1 minute, 5 minutes, 1 hour) |
Flow rate | 1L/min |
Units | ppb, ppm, pphm, µg m -3, mg m -3 (& mol %, wt % for 106H) |
Data output methods | USB, RS232, 0-2.5 V mode, 4-20 mA, LCD display |
Power supply | 12 V, 3.5 Watt |
Dimensions | 3.75 x 7.5 x 8.5 inches (10 x 19 x 22 cm) |
