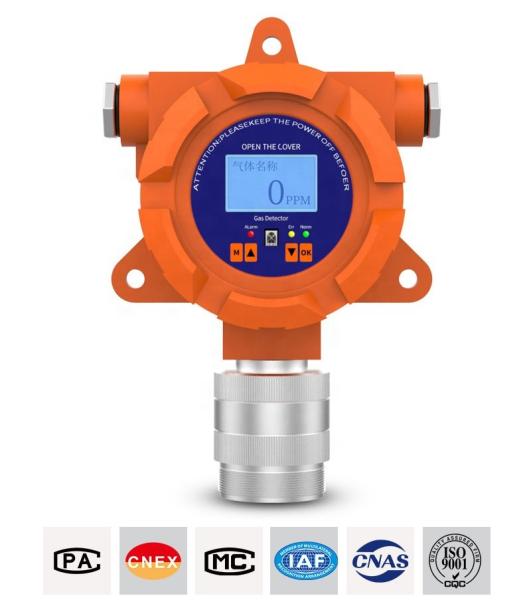

Zetron MIC100 IP65 Co Gas Monitor Industrial Carbon Monoxide Fixed
Zetron MIC100 IP65 Co Gas Monitor Industrial Carbon Monoxide Fixed
Zetron MIC100 IP65 Co Gas Monitor Industrial Carbon Monoxide Fixed
Zetron MIC100 IP65 Co Gas Monitor Industrial Carbon Monoxide Fixed
Zetron MIC100 IP65 Co Gas Monitor Industrial Carbon Monoxide Fixed
Zetron MIC100 IP65 Co Gas Monitor Industrial Carbon Monoxide Fixed
Zetron MIC100 IP65 Co Gas Monitor Industrial Carbon Monoxide Fixed
Zetron MIC100 IP65 Co Gas Monitor Industrial Carbon Monoxide Fixed
Specifications
Brand Name :
HiYi
Model Number :
MIC100
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Packaging Details :
paper case
Product name :
Carbon Monoxide Fixed CO Gas Monitor
Type :
fixed gas detector
Gas :
CO gas
Weight :
1.6(kg)
Size :
180*140*92mm (L*H*W)
Warranty :
12 Months
Description

MIC100 Series

Online Toxic and Harmful Gas Detector
without Display
OVERVIEW

MIC100 Series gas detector can be used in 24 hours continuous online monitoring of concentrations of single gas in the filed.The types for detection are more than 500 types.
With an output, can be simply integrated into a Distributed Control System (DCS) to provide warnings and enable control of high levels in the working environment.
Simple to install service and calibrate, MIC100 Series require no hot work permit and the PID sensor is accessible and changeable in a matter of seconds.
Strong, durable and explosion-proof shell and fluorocarbon surface treatment process are suitable for the use at a variety of hazardous places and corrosive environments, it is wear-resistant.
Zetron MIC100 IP65 Co Gas Monitor Industrial Carbon Monoxide Fixed
Zetron MIC100 IP65 Co Gas Monitor Industrial Carbon Monoxide Fixed
Zetron MIC100 IP65 Co Gas Monitor Industrial Carbon Monoxide Fixed

FEATURES & BENEFITS

  • Imported Sensors, Accurate, Fast and Stable

①It can be used in 24 hours continuous online monitoring of gas concentration, and the types for
detection are more than 500 types.
②The gas units can be customized : Normally PPM, %Vol, %LEL, other: mg/m3,PPHM, ppb, mg/l.

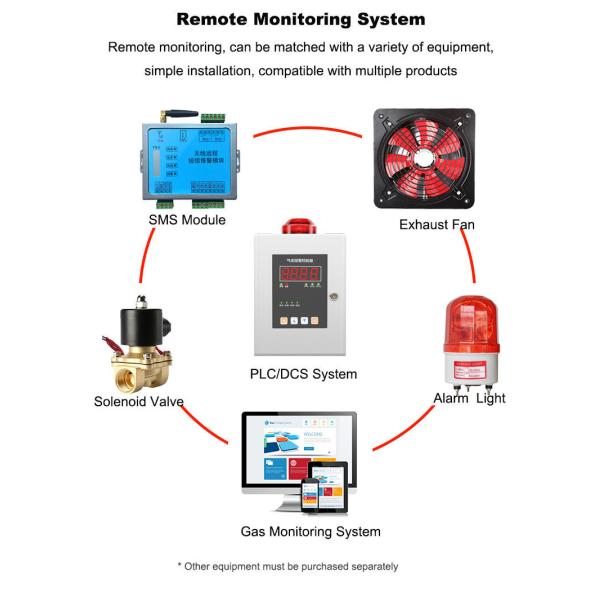

  • Diversified Data Communication Methods
① It is possible for the real-time monitoring via the wired or remote wireless transmission,
and network transmission.
② Three-wire system 4 ~ 20mA standard signal and standard bus RS485 (mod bus-RTU)
simultaneous output.
③ It is possible to select frequency output 200-1000Hz, Hart protocol signal, 1 ~ 5V output,
SMS alarm, wireless transmission .
④ It is compatible with GPRS, PLC, DCS system, and it is possible to drive the related equipment.
⑤ Two set of relay switch measures ports ( upper and lower limits) output:dry contact,
capacity 30V 1A, 125VAC 0.5A.
  • Infrared Remote Control
Standard configuration includes the infrared remote control, it is possible for one-key operation via
infrared remote control function key, which can achieve the operation without opening the cover under
hazardous situations. such as: the functions like modification of the alarm point, density calibration,
zero-point calibration, noise reduction, restoring the factory setting, and so on.

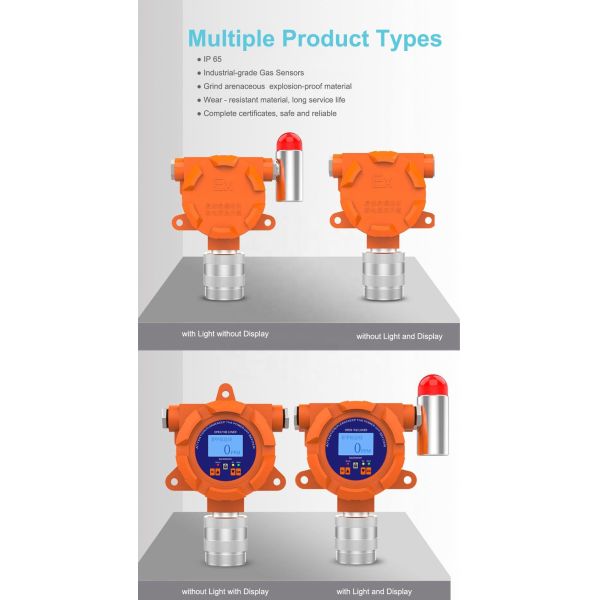

  • Multiple Optional Functions, Meet the Personalized Needs
Sound-light alarm (integrated or external)
AC pump
Brushless dc pump
Vacuum pump
Water vapor filter cylinder
Room-temperature automatic dehumidification and drainage system
Room-temperature manual dehumidification and drainage system
High-temperature flue gas pretreatment system
SPECIFICATION

Gas Carbon Monoxide Sensor Electrochemical
Range 0-500,1000,2000ppm
Can be customized		 Resolution 0.1 ppm; Can be customized
Smapling Method diffusion/pump Control Method Controller/Infrared remote control
Allowable error ≤±3% FS; Can be customized Work Method 24-hour continuously monitoring
Response time T90≤20 seconds;Can be customized Recovery time ≤10 seconds; Can be customized
Working Temp -20 ℃ ~ + 70 ℃;(Standard Values) Humidity 10 ~ 95% RH
-40 ℃ ~ + 80 ℃;(Limit Value)
Voltage ≤2.5 W(DC24V) Power 12～30VDC
Protection level IP65 Explosion-proof Exd Ⅱ CT6
Alarm Audible；Light(option) Display LCD/without LCD Display
Cable PVVP3 * 1.0mm 2 Transmission Distance ≤1000m
Installation Wall-mounted；Ceiling-mounted；Vertical pipe-mounted; Horizontal pipe-mounted
Output ① Three-wire system 4 ~ 20mA standard signal, and it is possible to work with controller module, PLC, DCS system.
② Standard bus RS485 (mod bus-RTU) simultaneous output, and it is possible to view the stored data on the computer via RS232 card.
③ Two set of relay switch measures ports ( upper and lower limits) output:dry contact, capacity 30V 1A, 125VAC 0.5A.
④ Voltage Signal Output: can set 0-5v, 0-10v signal output (optional).
⑤ Other Output: Frequency, Hart, Wireless , GPRS, NB etc.
Size(mm) 180*140*92 Weight(Kg) 1.6
Kit Manual, qualification certificate, warranty card, outer packaging box

APPLICATION

All the cases which requires the fixed installation, and online detection of gas concentrations such as petroleum, chemical, pharmaceutical, environmental protection, combustion gas distribution, warehousing, smoke gas analysis, air governance, and so on.
