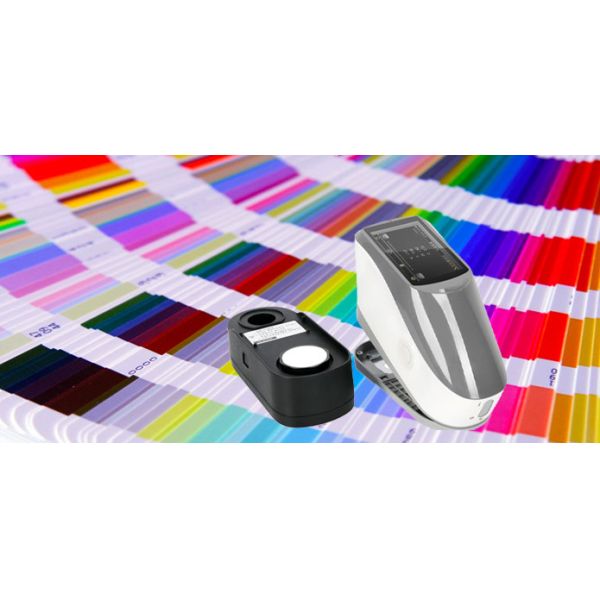

CMYK Dot Gain 45/0 Ink Printing QC Control Portable Spectrophotometer
CMYK Dot Gain 45/0 Ink Printing QC Control Portable Spectrophotometer
CMYK Dot Gain 45/0 Ink Printing QC Control Portable Spectrophotometer
CMYK Dot Gain 45/0 Ink Printing QC Control Portable Spectrophotometer
Specifications
Brand Name :
HiYi
Model Number :
YD5010
Certification :
CE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
10000 set/month
Delivery Time :
3-7 days
Packaging Details :
paper carton
Function :
CMYK Dot Gain 45/0 Ink Printing QC Control YD5010 Portable Spectrophotometer Densitometer
Application :
ink printing in Film Processing Textile
Spectral separation :
Concave Grating
Light Source :
Combined LED Light，UV Light
Color Spaces :
CMYK, CIE LAB, XYZ, Yxy, LCh
Interface :
USB
Weight :
600g
Description
YD5010 45 °Grating Handheld Densitometer
OVERVIEW

Need a device to measure all aspects of CMYK in the pressroom? The YD5010 automatically detects color and patch type and compares production density measurements against stored standards with pass/fail indication. The YD5010 Spectrophotometer can help increase efficiency by decreasing measurement time and improving print accuracy.
CMYK Dot Gain 45/0 Ink Printing QC Control Portable Spectrophotometer
FEATURES

1.An Extensive Tool Set for Densitometric Color Control
Not only can the YD50 Series verify all aspects of density, including ink trap, print contrast, and hue error, but it can also measure offset printing plates, allowing you to measure a print curve and to view density trends.

2.Easy-to-Use, Secure, and Customizable
The YD50 Series includes the same features of the eXact Basic, including the ability for each user to configure the device and control all elements on a selected job. Enhanced security features and password protection ensure the instrument and tool configuration remain secure.

3.Bluetooth Connectivity and Flexible Aperture Sizes
Offers four different aperture sizes (2, 4, and 8 mm) and cordless portability for a range of applications

4.Enhanced Measurement Speed
Simultaneously measures four M conditions (M0/M1/M2/M3) in less than one second in spot mode


5.Protected, Automated White Tile Calibration
Protects the instrument from pressroom dust at all times

SPECIFICATION

Product number YD5010
Lighting method 45/0 (45 ring uniform illumination 0° reception); in line with ISO 5-4, CIE No.15
Lighting source Combination LED light source, UV light source
Spectroscopic method Concave grating spectroscopy
sensor 256 pixel dual array CMOS image sensor
Measurement condition Compliance with ISO 13655 measurement conditions:
M0 (CIE light source A)
M1 (CIE light source D50)
M2 (excluding UV illumination)
M3 (M2 + polarizing filter)
Density standard ISO Status T, E,A,I
Measuring caliber Customized single caliber: Φ2mm, Φ4mm, Φ8mm are optional
Color space CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Color difference formula ΔE*ab,ΔE*94,ΔE*00,ΔE*uv,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE(Hunter)
Observer perspective 2°/10°
measure time About 1.5s
weight About 600g
